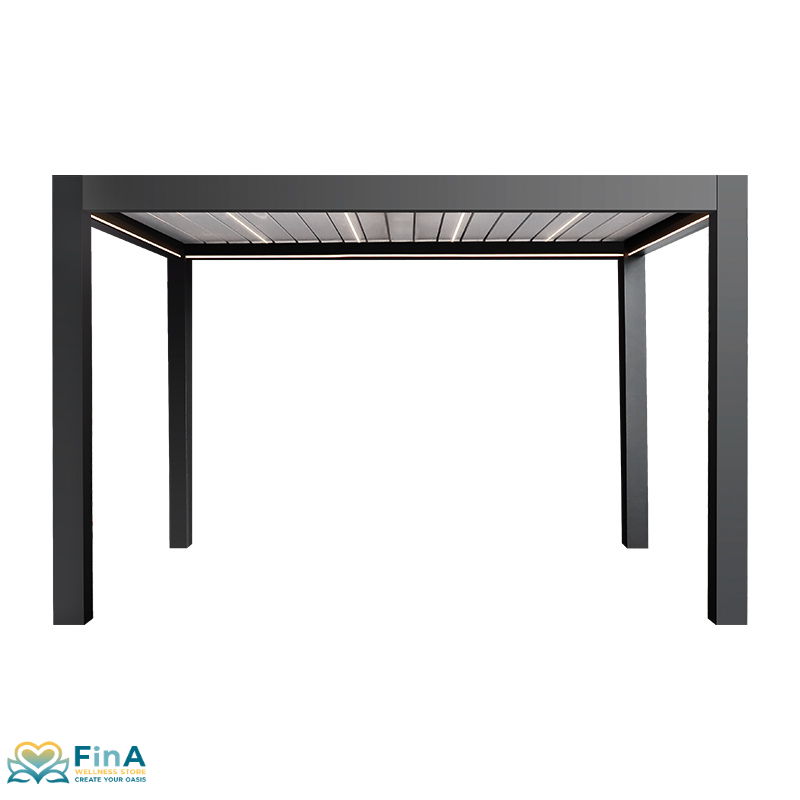

JJSpa DesignGuard Bioclimatic Pergola - double slats, LED
incl. VAT
🚚 Free shipping to the EU mainland & Switzerland for orders over €300
Elegant outdoor architecture for sophisticated living spaces
The DesignGuard Bioclimatic Pergola combines perfect design with sophisticated technology. It creates a luxurious outdoor retreat - usable regardless of the weather, functionally adapted and stylishly staged.
DesignGuard weather control: character & resilience
Double-layered aluminum slats - electrically adjustable from 0 ° to 95 ° for optimal light and air flow.
Load resistance 250 kg/m² (equivalent to approx. 100 cm of fresh snow) - robust enough for winter months.
Wind resistance up to 216 km/h - stable construction even in storms

DesignGuard structure & color palette: materials & variants
Frame, slats, pillars and beams made of powder-coated aluminum - easy to clean, weather-resistant and durable.
Six perfect colors:
- Anthracite - RAL 7016
- Deep black - RAL 9005
- Medium brown - RAL 8014
- Dark gray - RAL 7043
- Pure white - RAL 9016
- Wood look - natural wood structure
Five standard sizes (including special sizes possible): 3×3, 3×4, 3×6, 4×4, 4×5 m - can be flexibly planned for any outdoor area

Living in the open air - according to your wishes
The waterproof slats of the JJSPA pergolas provide reliable protection against rain and snow. Thanks to a sophisticated channel system, precipitation is elegantly guided through the slats and posts into the ground - for a dry, pleasant outdoor experience in any weather.
Atmospheric atmosphere with light
The integrated LED lighting can be installed either on the underside of the slats or along the supporting frame. This allows you to enjoy a softly lit environment even in the evening hours - ideal for relaxing moments outdoors. Please note: LEDs are not included with the JJSPA EcoShelter, but are included as standard with the JJSPA DesignGuard and JJSPA SupremeShade models.
More comfort. More character.
With well thought-out accessories, you can give your pergola additional functionality and a stylish touch. Sliding glass panels offer protection from the wind without restricting the light. Metal panels between the posts provide shade and more privacy. Zip or roller blind screens protect against sun, wind, rain and insects - stretched between two posts, without any central support.
Flexible and attractive - adapted to your space
The bioclimatic pergola can be configured in six individual variants and harmoniously integrated into your outdoor area. Thanks to its clever design, you can control the light and temperature in a targeted manner - for a pleasant climate in a stylish ambience.

DesignGuard technology & ambience: Technology & functions
Electric slat control via remote control - intelligent operation for wind or sun protection.
Integrated LED lighting (warm white, 3000 K) creates a harmonious atmosphere in the evening and at dusk.
Concealed drainage system - slat and pillar channels safely drain rain and ensure a dry ambience.

Your advantages at a glance
Integrated drainage system
Rainwater is directed into lateral channels via the slats and drained downwards through internal openings in the supports - for dry, clean surfaces in all weathers.
Expandable equipment
Add to your pergola as you wish: with ZIP roller blinds, side sliding glass elements or metal panels for more privacy and extended weather protection. This creates your very own personal outdoor retreat.
Adjustable aluminum slats
The robust slats can be opened or closed manually - for flexible light regulation and pleasant air circulation. When closed, they offer reliable protection from rain and light snow.
Sturdy crossbars
The slats rest on load-bearing cross beams, which ensure structural stability. Even in wind and weather, the structure remains permanently resilient and secure.

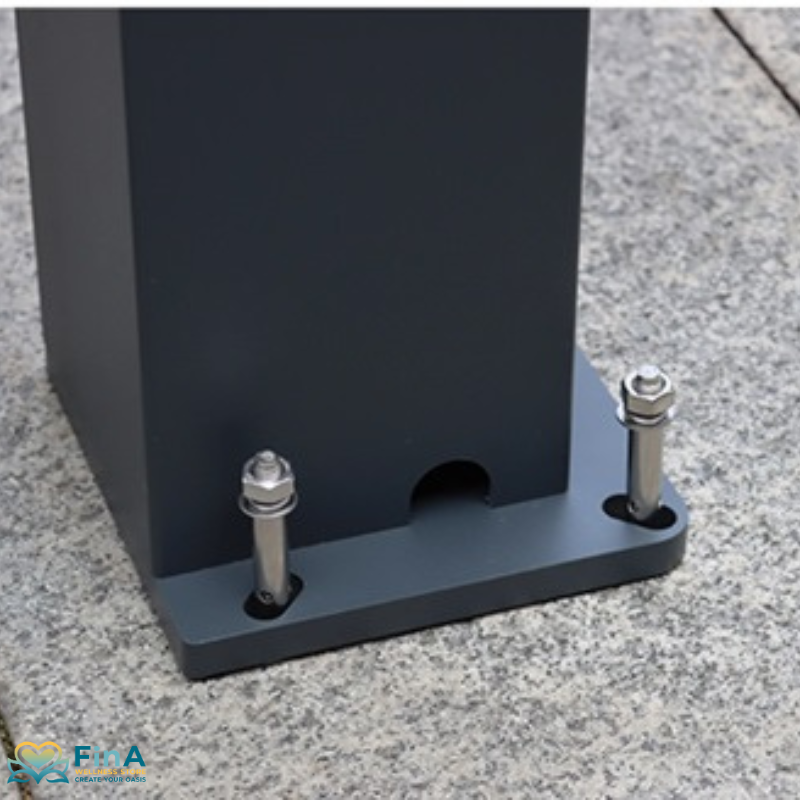

Reinforced support structure
The solid supports with a wall thickness of 1.8 mm offer a load-bearing capacity of up to 200 kg or 32 kg/m² - sufficient for a snow load of around 10 cm. Ideal for year-round outdoor use.

Bioclimatic pergola from JJSPA - perfect outdoor climate in any weather
With the bioclimatic pergola from JJSPA, you can enjoy your patio all year round - protected, stylish and perfectly tempered. Its adjustable aluminum slats react flexibly to sun, wind and rain and create a naturally regulated outdoor microclimate.
In summer, the slat construction provides pleasant shade and air circulation, while in winter it protects you from rain, wind and cold. By simply adjusting the slats, you can control the light transmission, ventilation and weather protection to suit your individual needs - exactly how you feel.
Thanks to its sophisticated design based on bioclimatic principles, the pergola uses natural elements such as the position of the sun, air flow and precipitation to create a comfortable outdoor experience - without sacrificing modern elegance.
Extend your sheltered outdoor area as you wish: with sliding glass panels, ZIP roller blinds or metal side panels for even more privacy and wind protection.

Design in style now
Configure your DesignGuard pergola - choose the size, color, accessories and create your elegant outdoor oasis of well-being. A clear presentation of quality, technology and design.
🔶 Scope of delivery
Everything at a glance - what's included!
- DesignGuard Bioclimatic Pergola - individually configured
- Robust aluminum frame with double-layer slats
- Electric slat drive incl. remote control
- Integrated LED lighting
- Complete drainage package (concealed)
- Assembly material & installation instructions
Specifications
Electric slat adjustment | Infinitely variable control by remote control for optimum light and air passage. |
Integrated LED lighting | Warm white light (3000 K) creates a stylish, atmospheric environment in the evening. |
Weather and windproof | Resistant to snow (250 kg/m²) and winds of up to 216 km/h - can be used all year round. |
Drainage system | Integrated channels in slats & columns |
Wide range of color & size options | Six design colors and five standard sizes - individually configurable. |
Concealed drainage system | Channels integrated into slats and columns drain rainwater away invisibly. |

Dimensions
- Pergola: 3 x 3 x 2.5 m / 3 x 4 x 2.5 m / 4 x 4 x 2.65 m / 3 x 6 x 2.65 m / 4 x 5 x 2.65 m or to order
- Slats: 175 x 40 x 1.5 mm
- Beams: 180 x 120 x 2.0 mm
- Columns: 150 x 150 x 2.0 mm

Slats
- double layer
- Electrical opening
- Opening angle 0 - 95

Load
- Load capacity: up to 250 kg/m² - 100 cm snow
- Water resistance: IP65
- Wind: up to 216 km/h

Colors
- Anthracite RAL 7016
- Dark gray RAL 7043
- White RAL 9016
- Black RAL 9005
- Brown RAL 8014
- Wood look
