| Model |

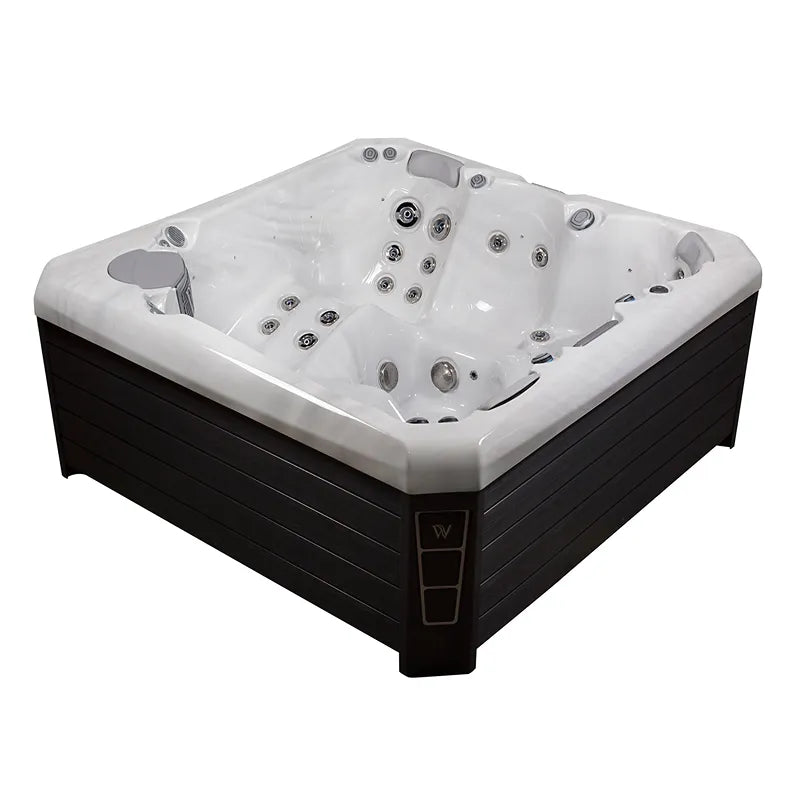

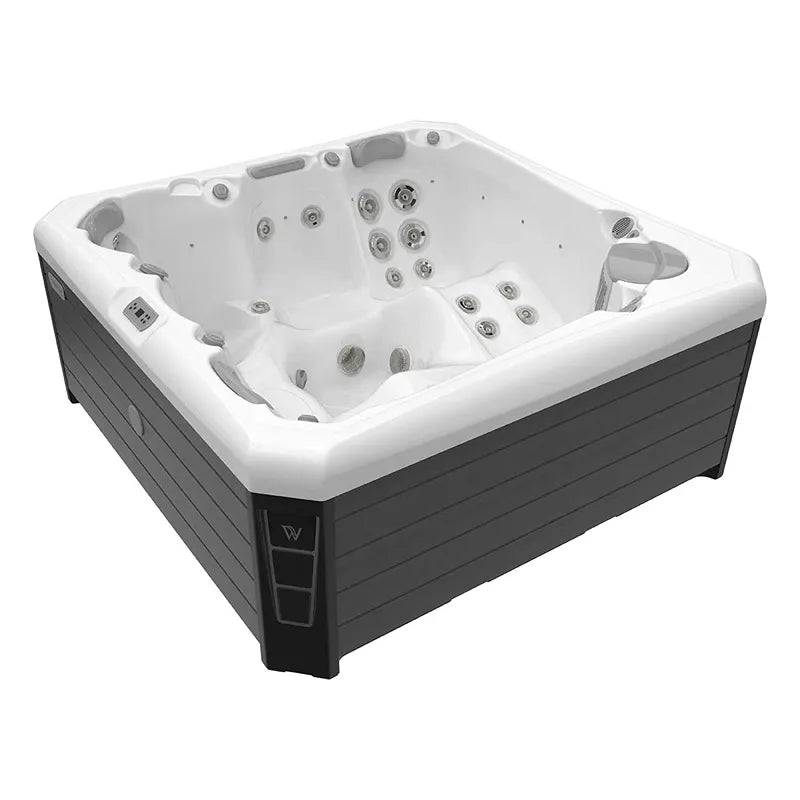

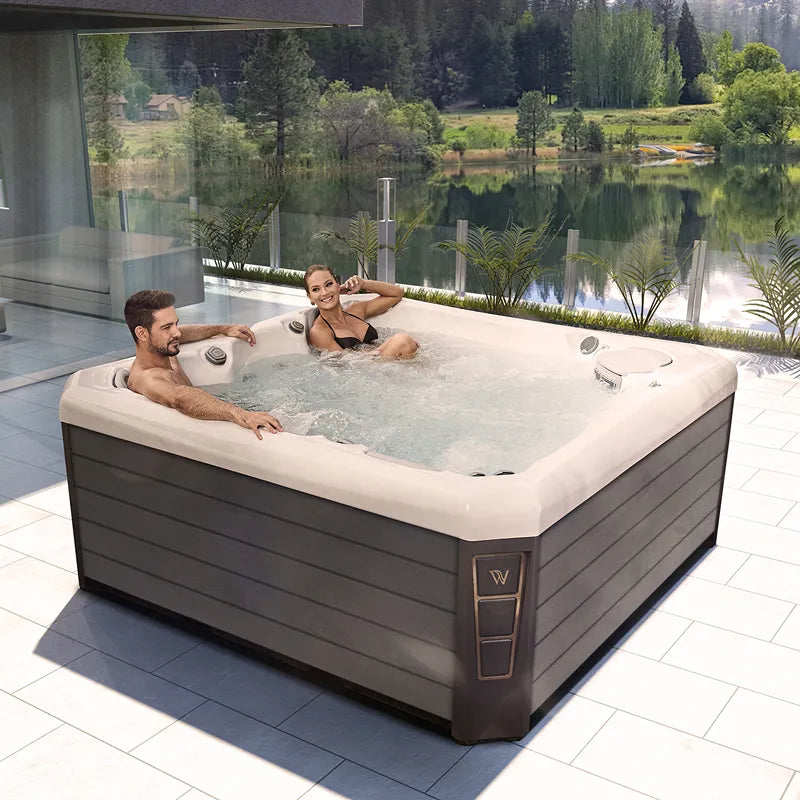

Wellis Palermo Life |
| External Dimensions (L × W × H) |
218 × 218 × 90 cm |
| Weight |
335 kg |
| Water Volume |
1,175 liters |

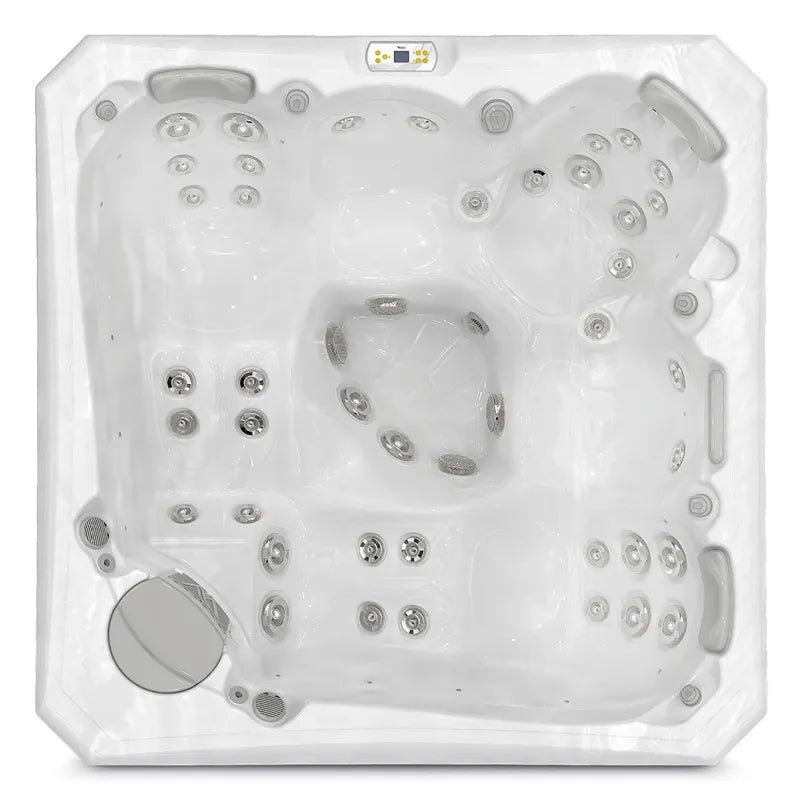

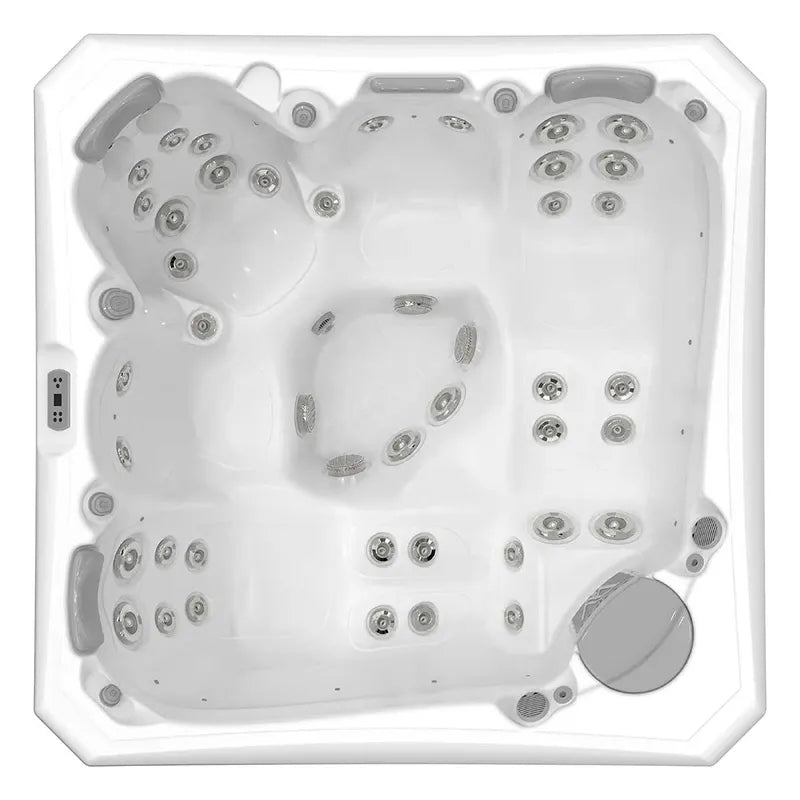

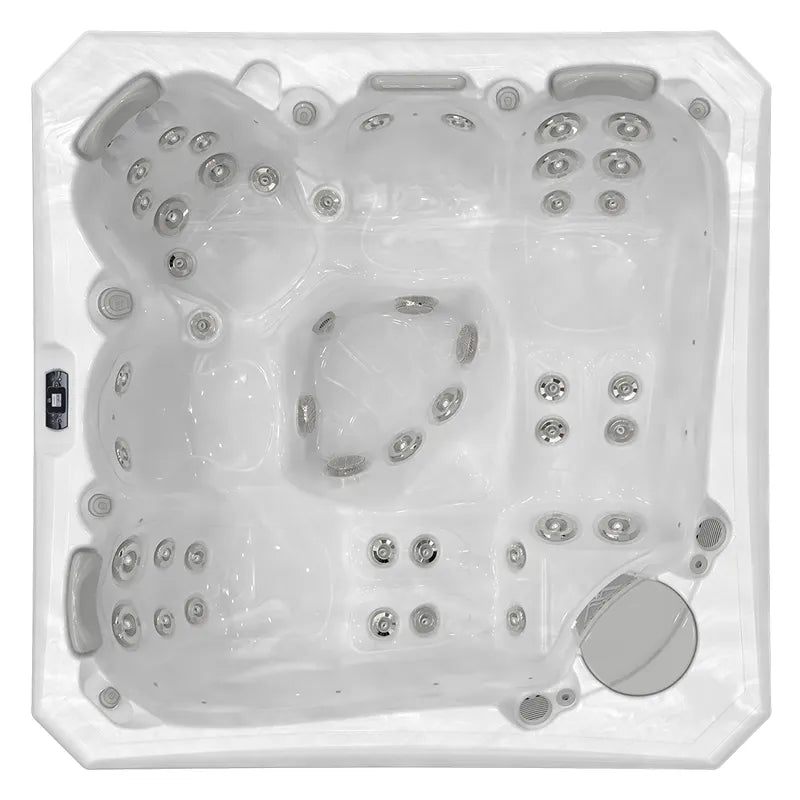

| Seats |
5 (2 reclining seats, 3 regular seats) |

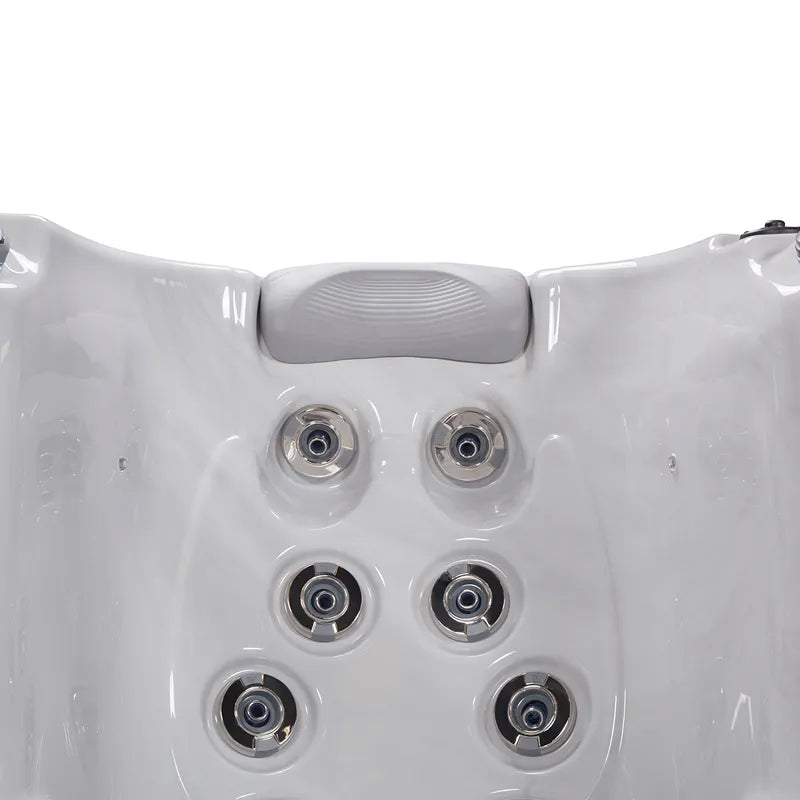

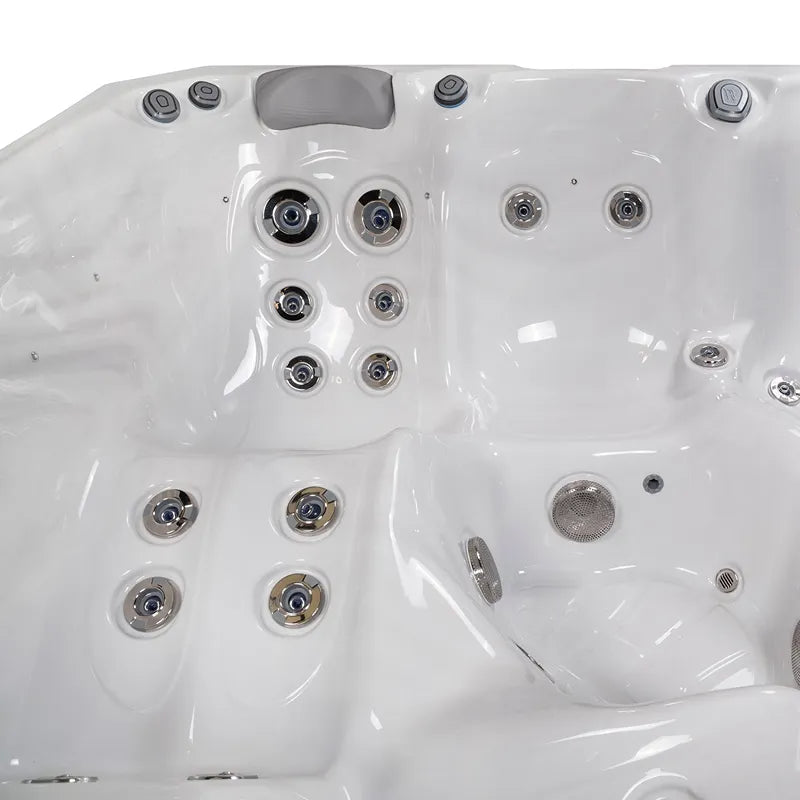

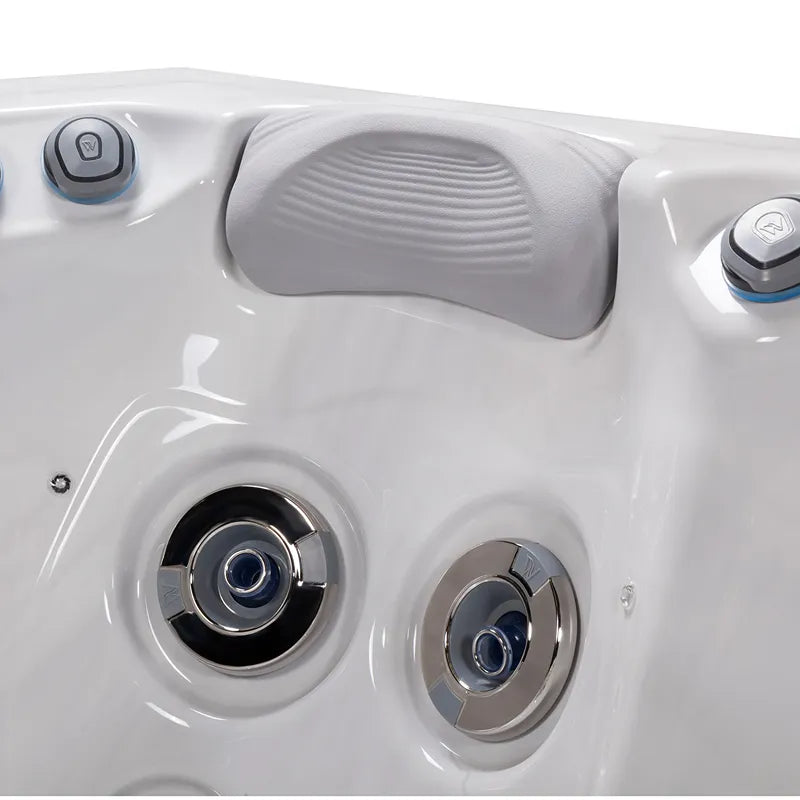

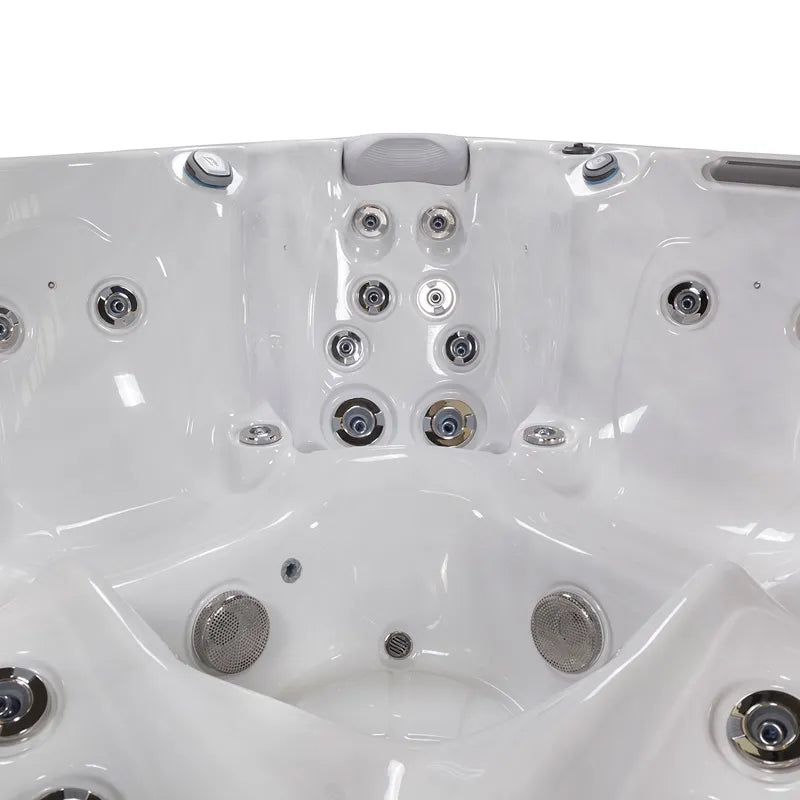

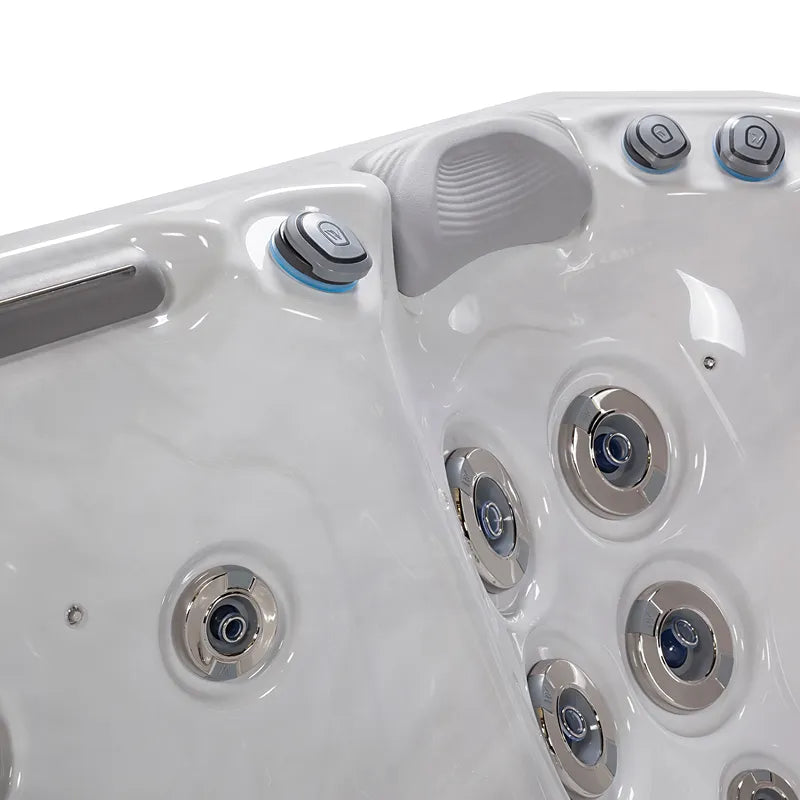

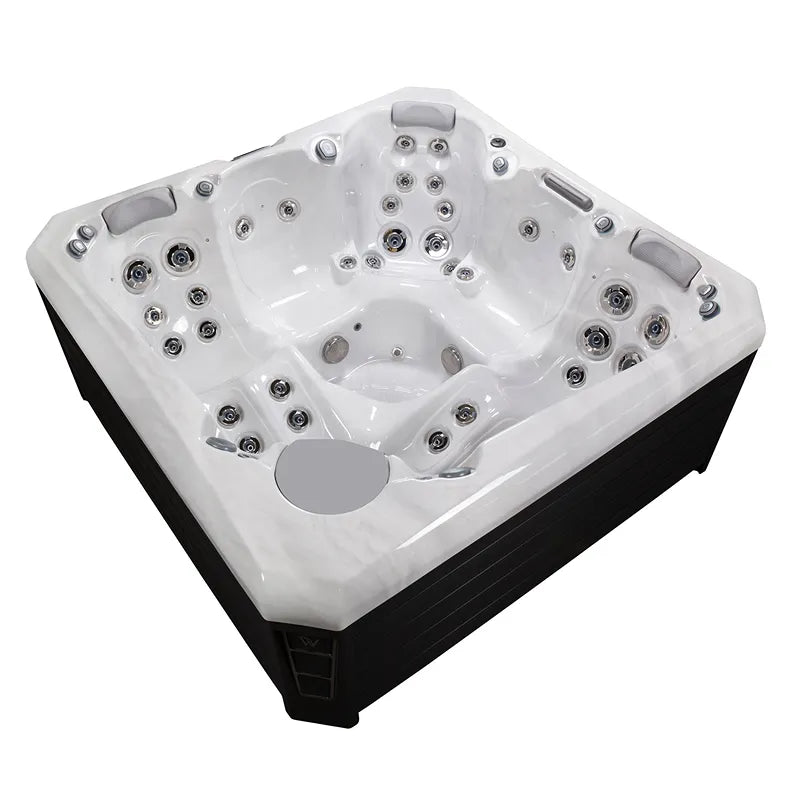

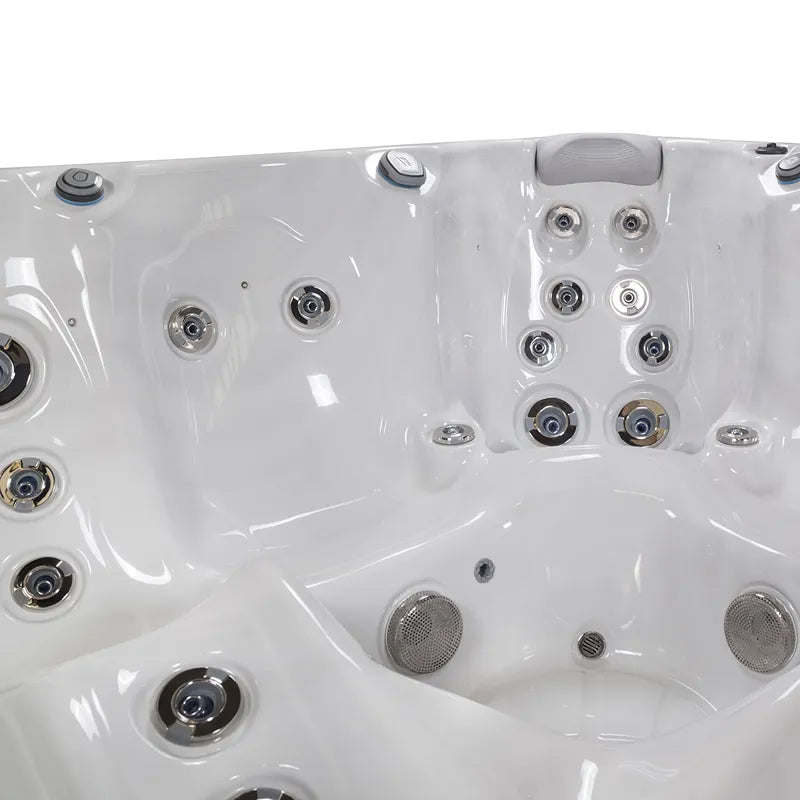

| Total Nozzles |
42 |
| Waterfall |
1 piece, illuminated (redesigned) |
| Laminar fountain jets |
2 pieces, illuminated |
| Heating Capacity |
3 kW |
| The Massage Pump |
2 × 3 PS (230V/50Hz, single speed) |
| Circulation pump |
W-EC (0.25 kW) |
| Energy Consumption |
2.8 kWh/day (measured at 39 °C water, 17 °C air, filtration 1×2 hours, TÜV-certified with heat pump, California Energy Commission standard) |
| Minimum connection |
1 × 25A – 230V / 50Hz |
| Optional connection |
1 × 40A – 230V / 50Hz or 3 × 16A – 400V / 50Hz |

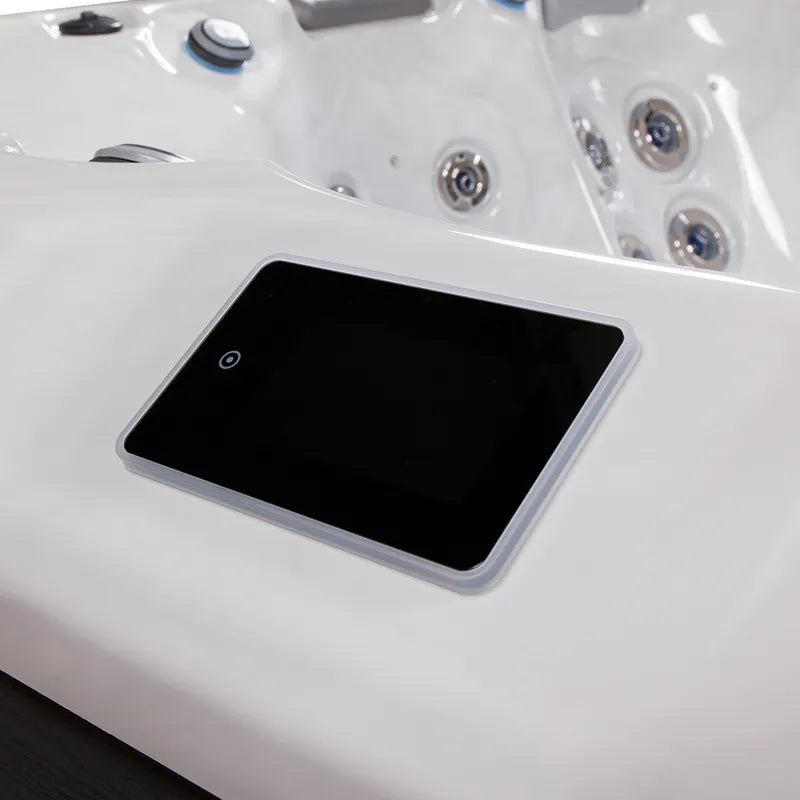

| Control Panel |
Easy7 |
| Control board |
Gecko (IN.YE-3) |
| Filter cartridge |
1 × MicroPlus Antibacterial |
| Water Purification |
WellisGuard™ / Ozmix™ System (Ozone + Mixer) |
| LED Color Therapy |
10–20 LEDs |
| Sound System |
MyMusic™ 2.0 with Bluetooth |
| App Control |
Smartphone via Wi-Fi |
| Bowl |
Acrylic with Poli-MAX™ polyurethane reinforcement |
| Frame |
WPS (Hot tub Pool System) |

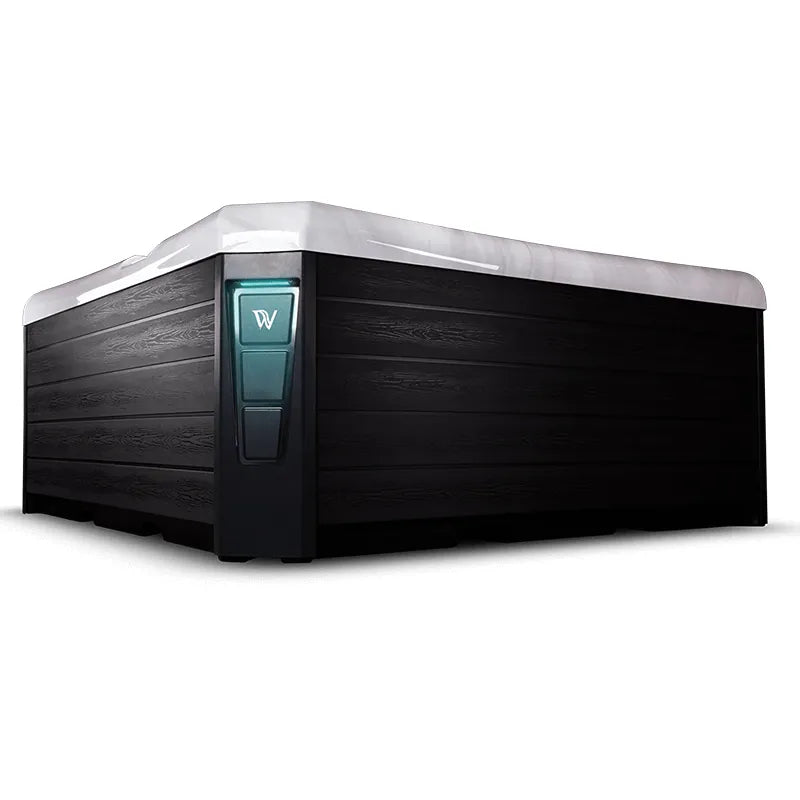

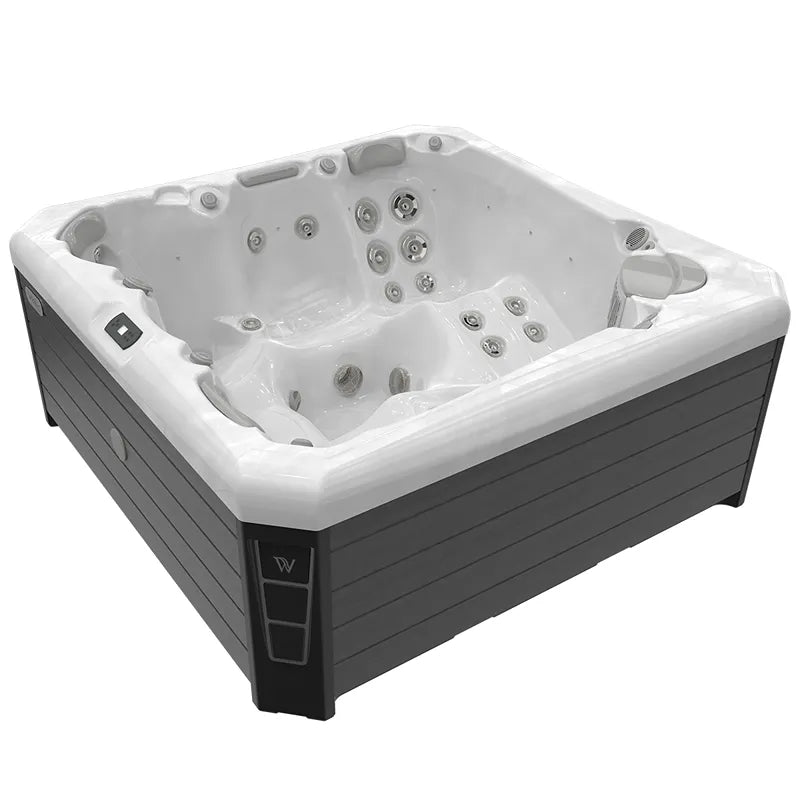

| Side Cover |
StarSide™ UV-resistant plastic with a wood grain finish (brown or gray) |
| Insulation |
LIFE Scandinavian Insulation System (insulation panels, air pockets in the floor slab, interior thermal barrier film) |

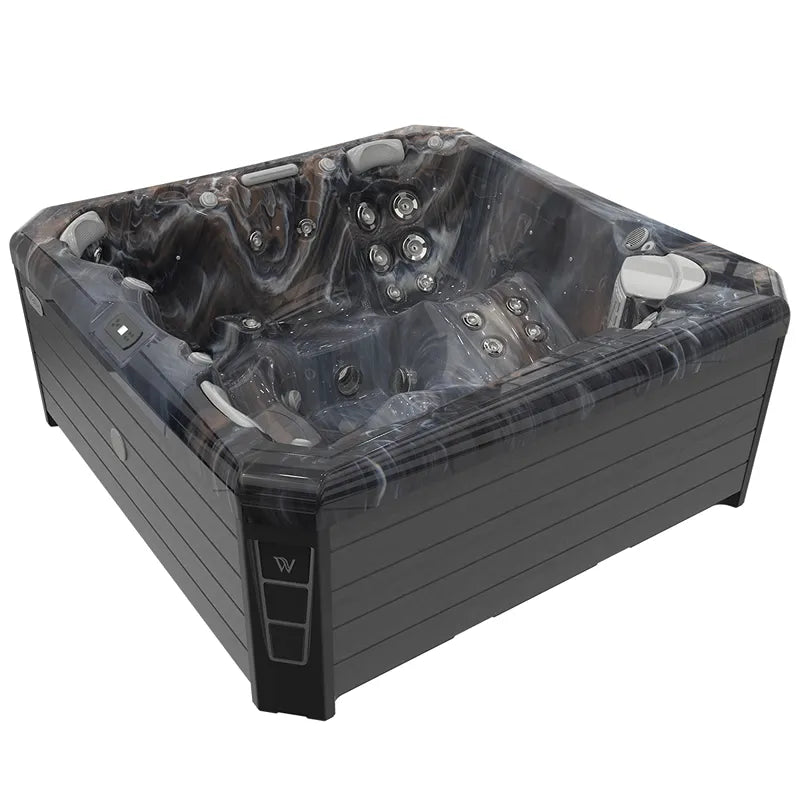

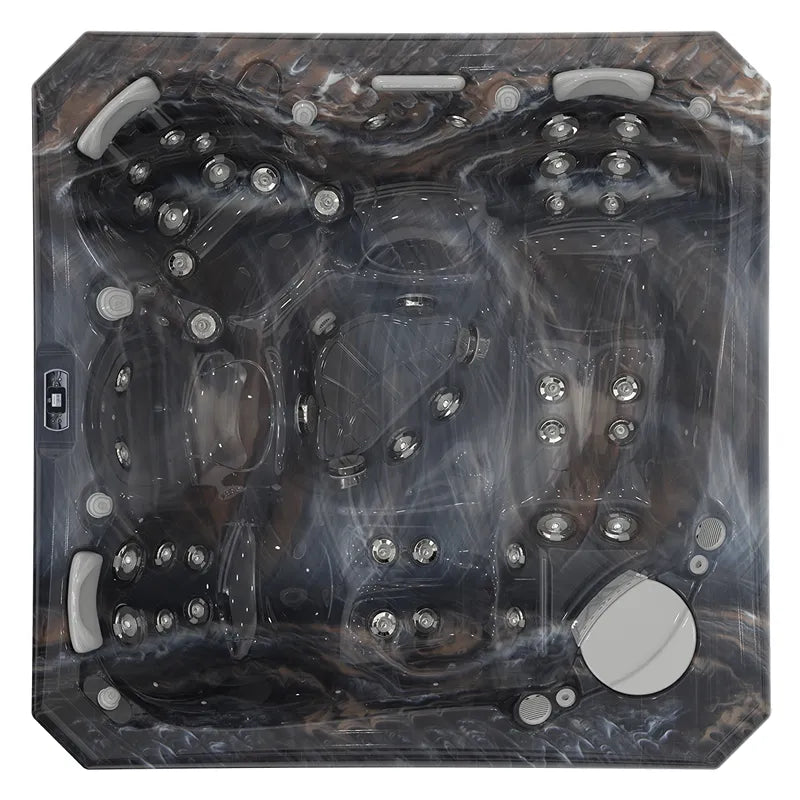

| Shell Colors |
Ice White / Grau, Midnight Canyon / Grau, Sterling Silver / Grau, Storm Grey / Grau, Tuscan Sun / Braun |
| Certifications |
California Energy Commission, TÜV-Messung |
| Substrate |
The surface must be level, solid, and able to support a load of at least 1,500 kg. A concrete slab is ideal; existing patio slabs or pavers are acceptable if the subbase is solid and level. Grass is not suitable. Water must be able to drain away from Hot tub Hot tub. |
| Space requirements (all sides) |
At least 50 cm on all sides, preferably 60 cm—the service technician must be able to access all four sides. If the Hot tub is installed on a patio, be sure to plan for access to the service door (usually on the side of the control panel). |
| Delivery |
The Hot tub is delivered upright on a transport dolly—this makes it about 15–20 cm taller than its standard dimensions. Please check the clearance width, gate widths, steps, and overhangs in advance. If access is insufficient, a truck-mounted crane is required; the customer is responsible for arranging and paying for this. |
| Power Connection |
Permanent installation by a licensed electrician, with a dedicated circuit equipped with a ground-fault circuit interrupter (GFCI). The exact fuse rating is specified in the technical specifications for this model. |
| Questions about installation |
Send us photos of the driveway, the access path, and the planned installation site—we’ll take a look at them beforehand and let you know what you need to prepare. |
| Warranty on Frames and Insulation |
Lifetime (WPS Framework) |
| Warranty on Pool Structure and Acrylic |
10 years |
| Technical Warranty |
3-year warranty on pumps, control unit, display, and trim · 2-year warranty on piping, jets, heat pump, cover, audio, and LED lighting |
| Warranty – Not Covered |
Consumables such as filter cartridges |
| Warranty – Prerequisites |
Installation on a level, load-bearing surface covering the entire area · proper water maintenance |
| In the Event of a Warranty Claim |
Just contact us—we’ll handle the process with the manufacturer and work with you to determine the best way to carry out the repair on-site. The statutory warranty remains unaffected. |
