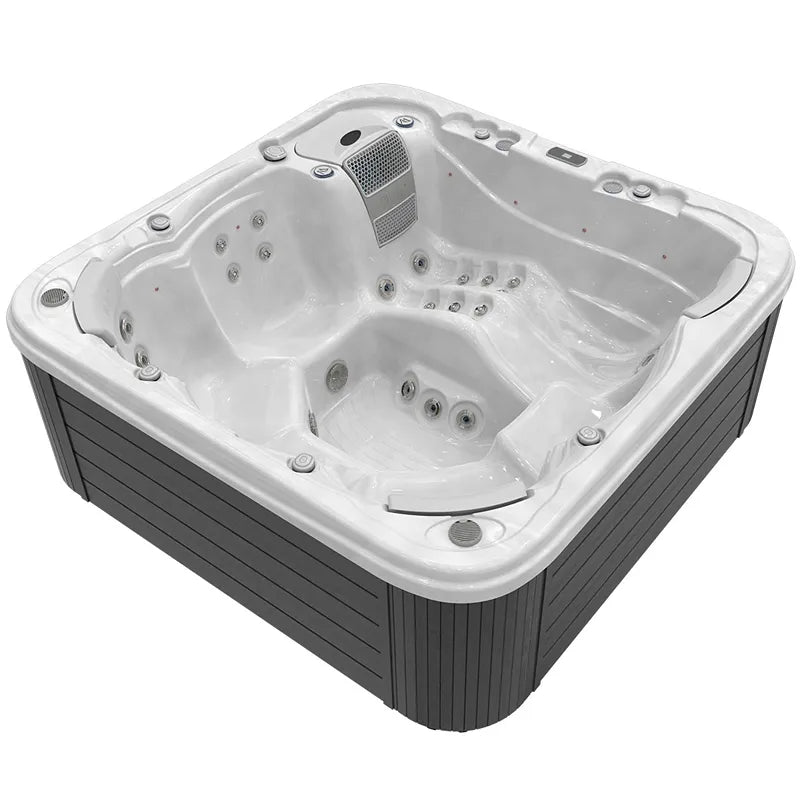

| Model |

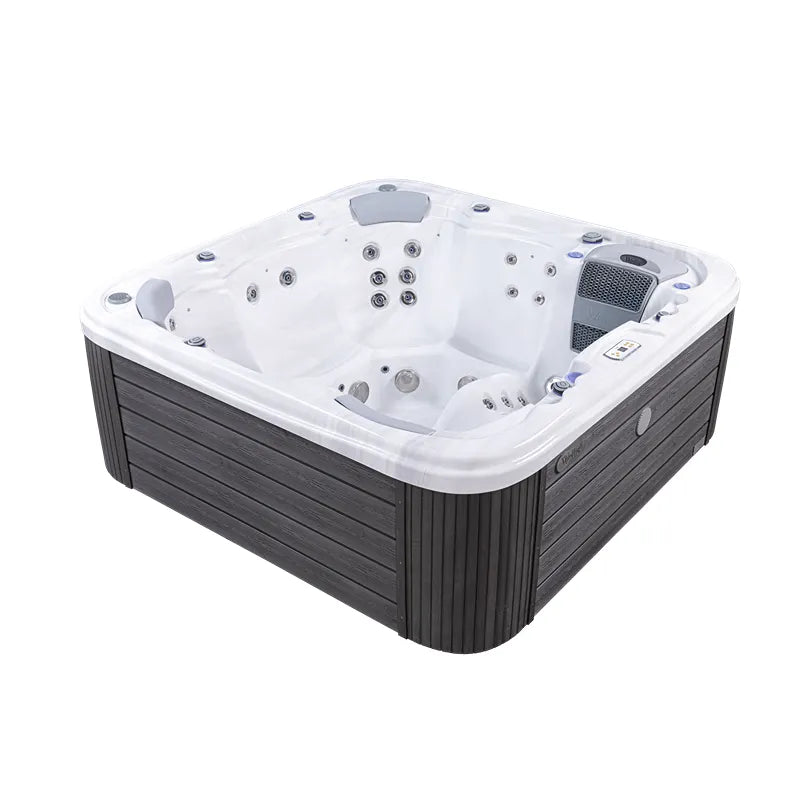

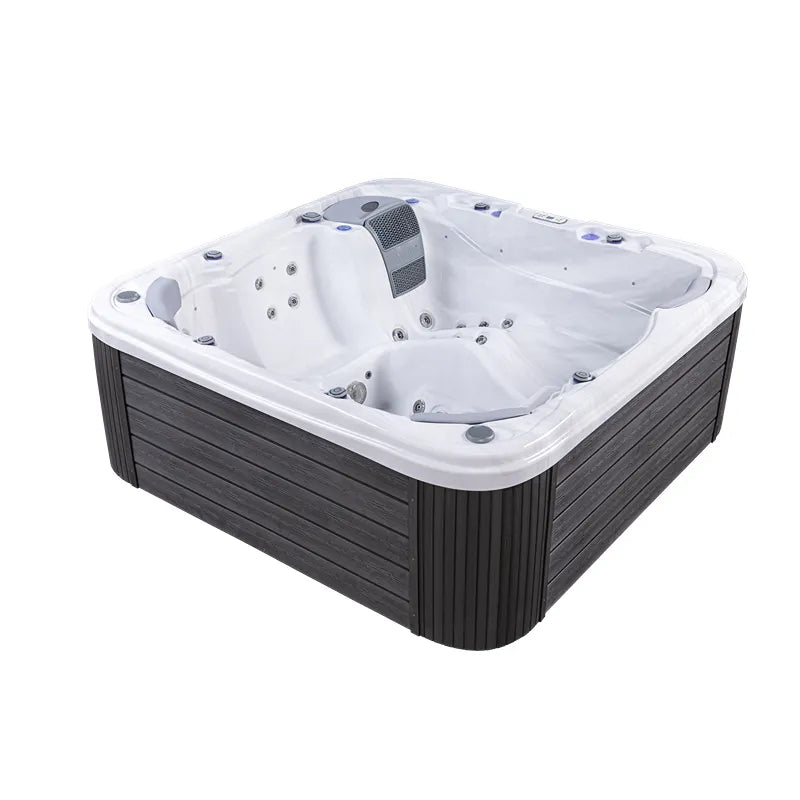

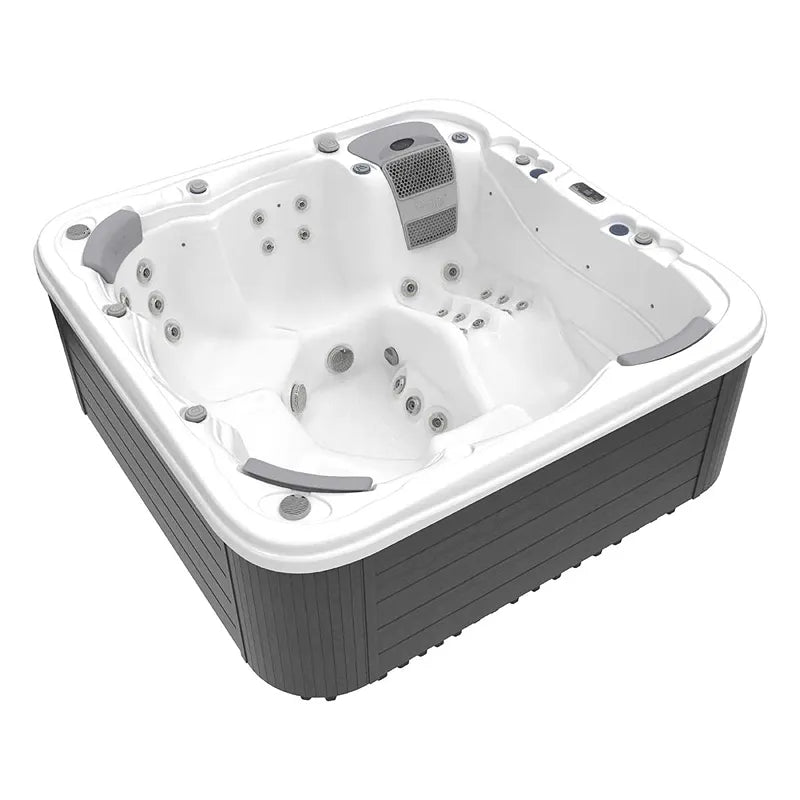

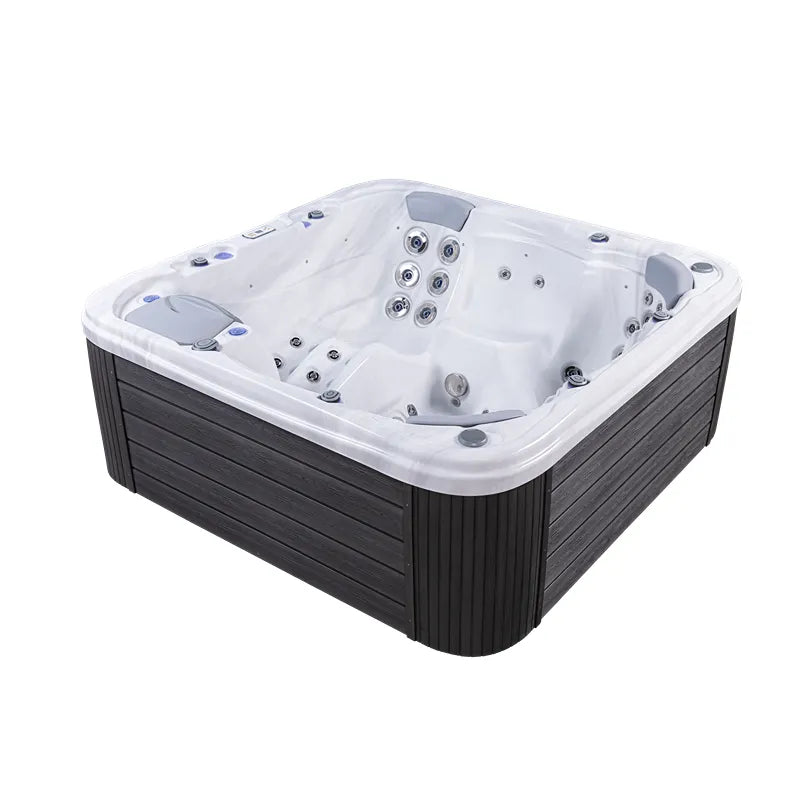

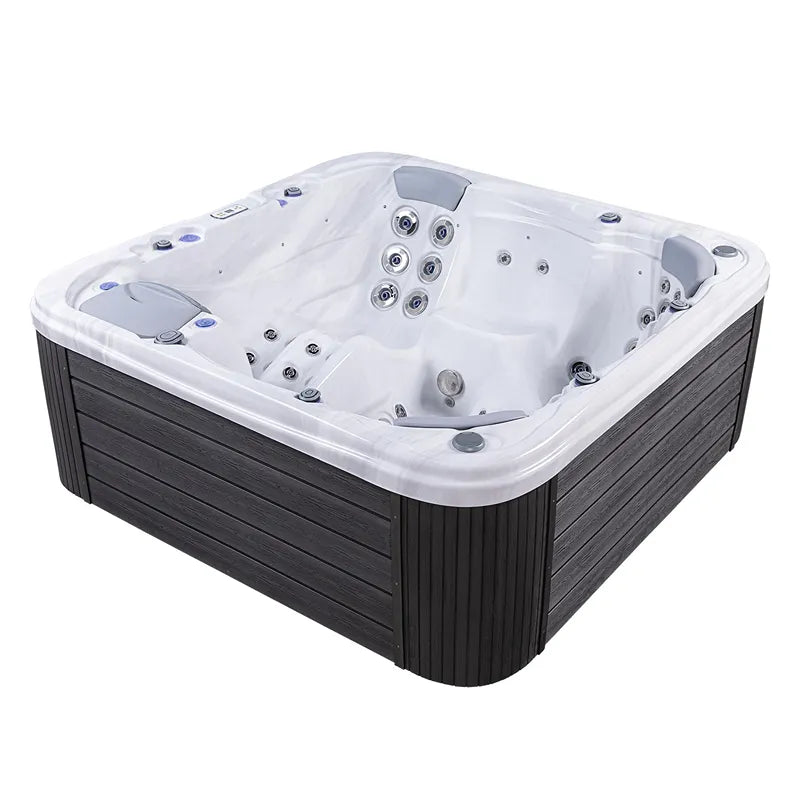

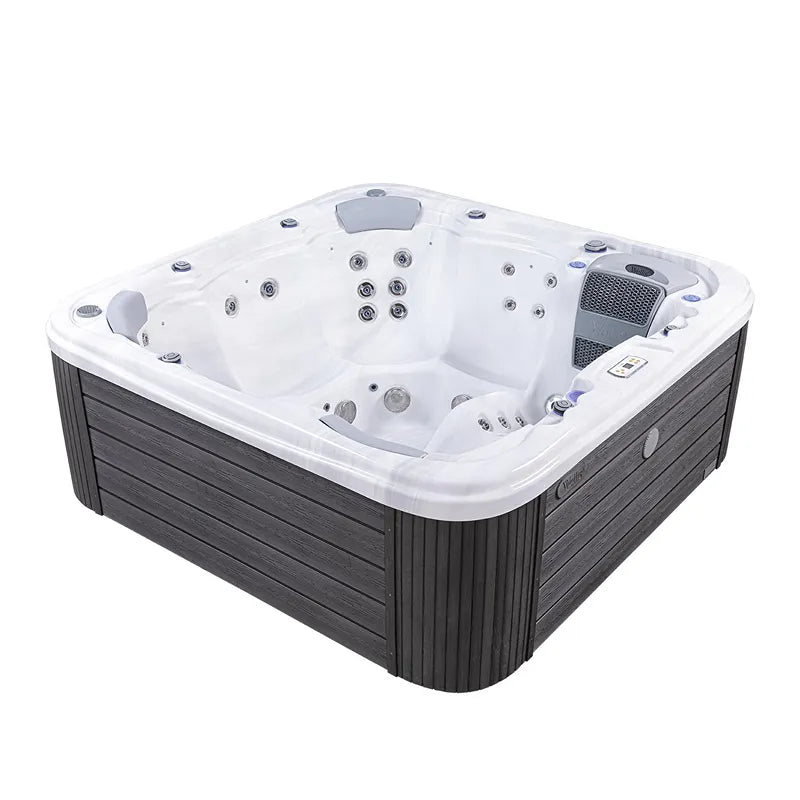

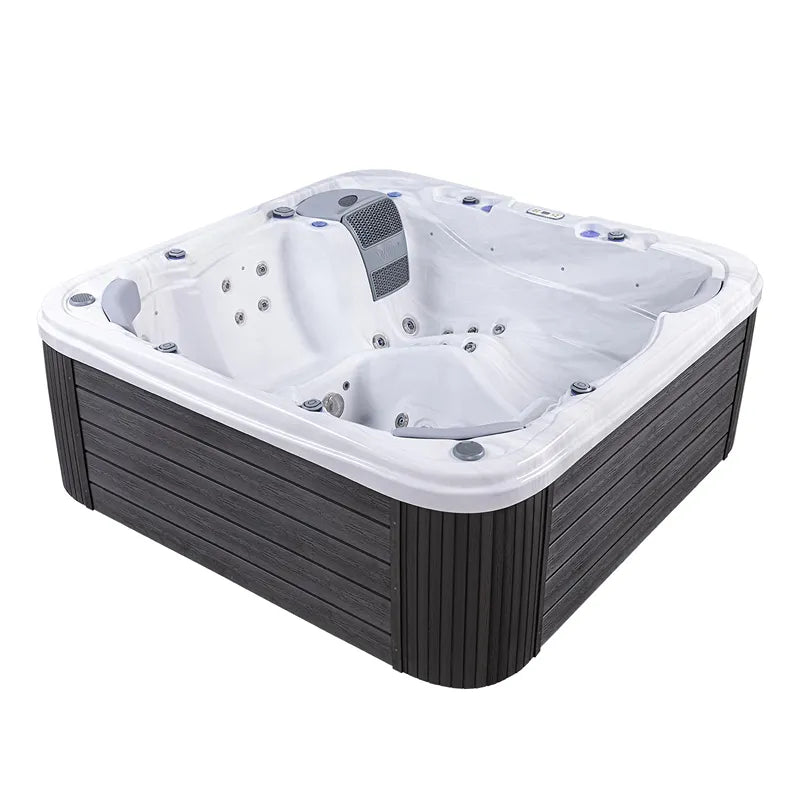

Wellis Lugano Life |
| Type |
Outdoor Hot tub |
| External Dimensions (W × D × H) |
230 × 230 × 94 cm |
| Weight |
387 kg |
| Water Volume |
1,400 liters |

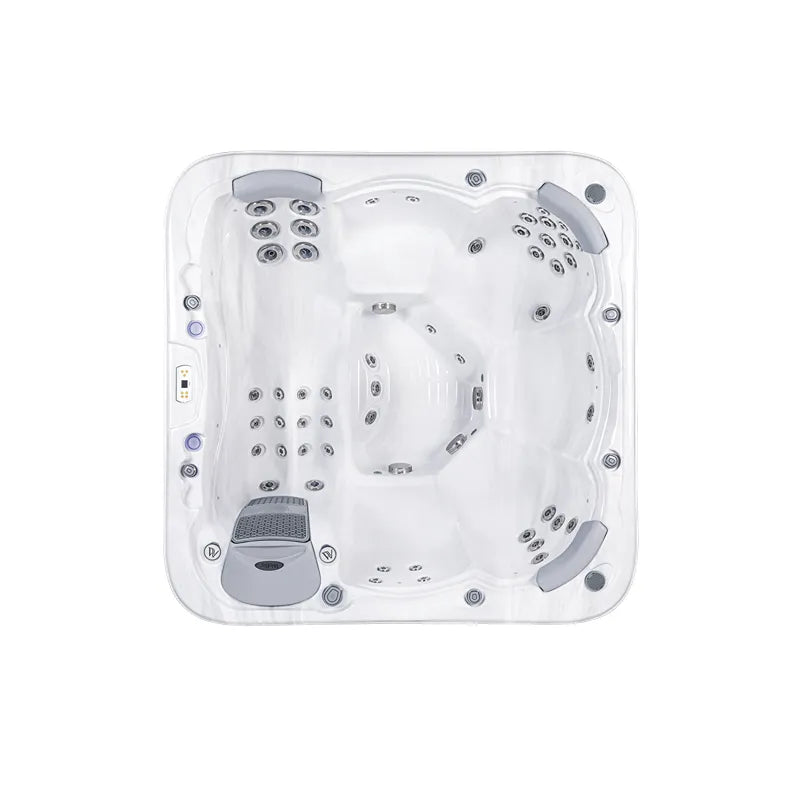

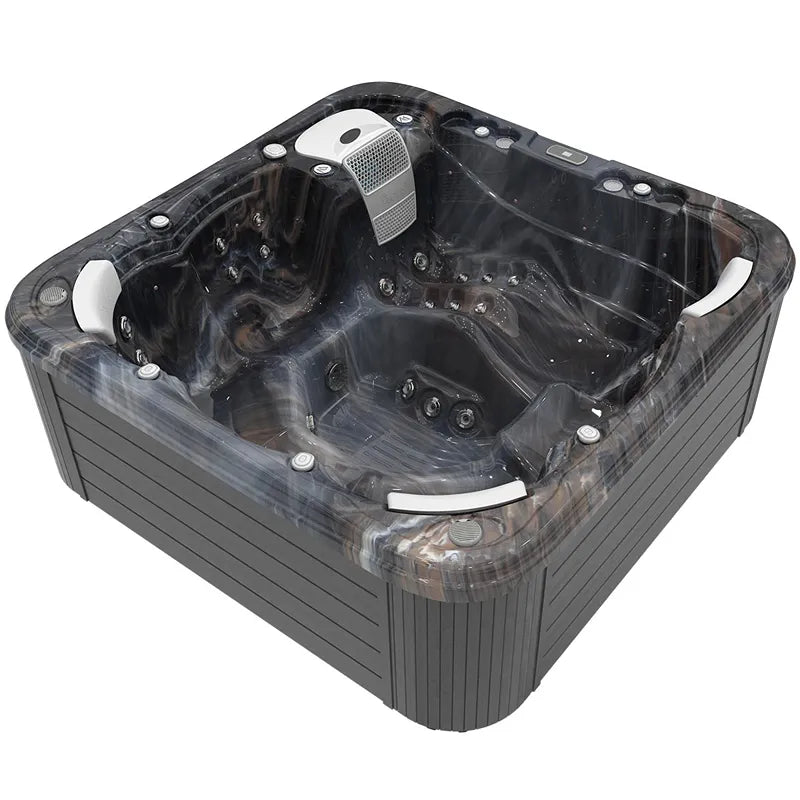

| Seating |
6 (1 reclining spot + 5 seats) |

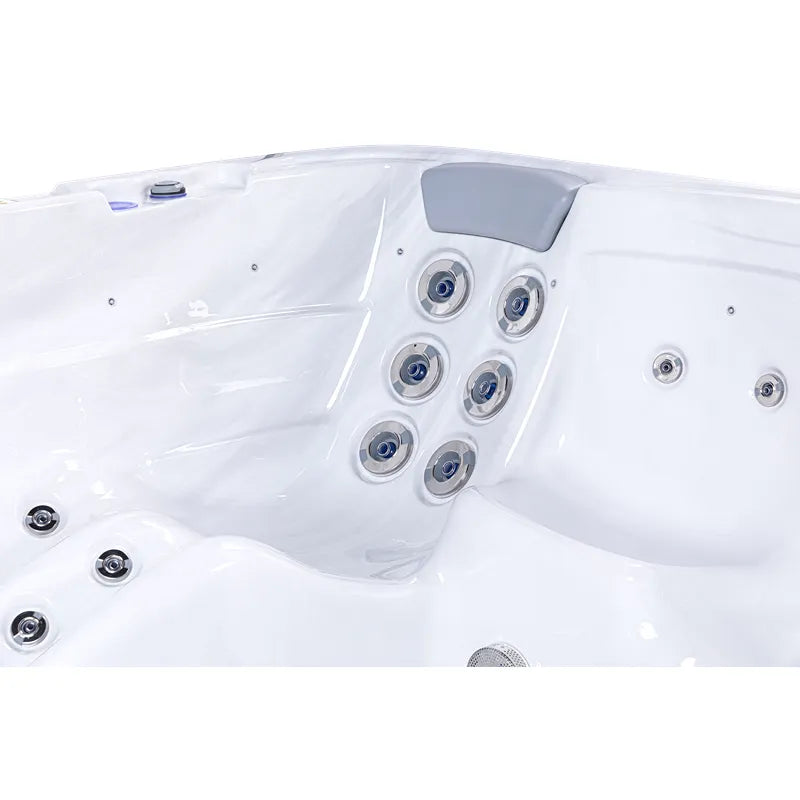

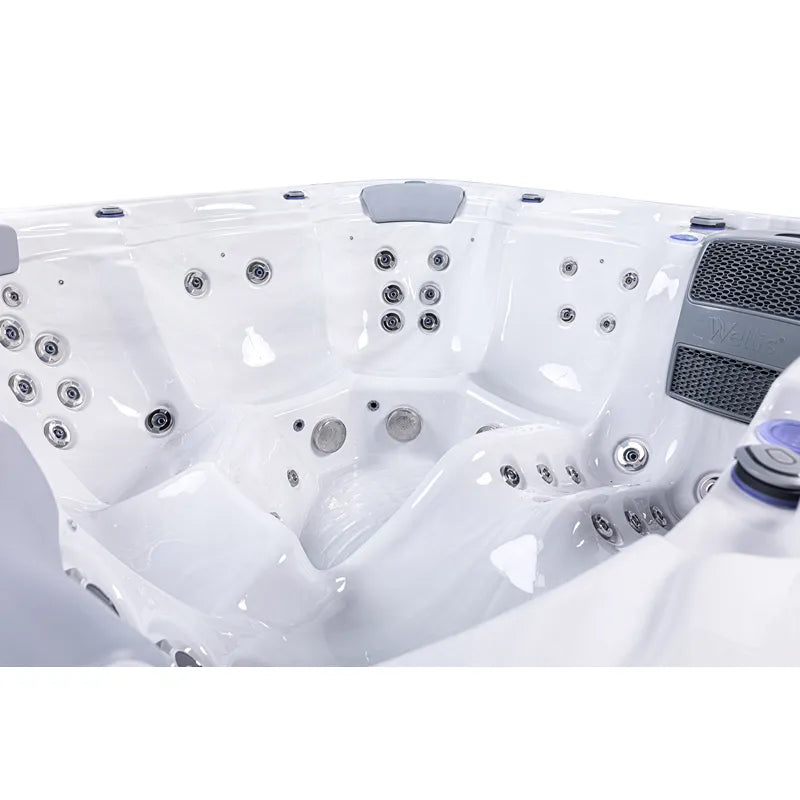

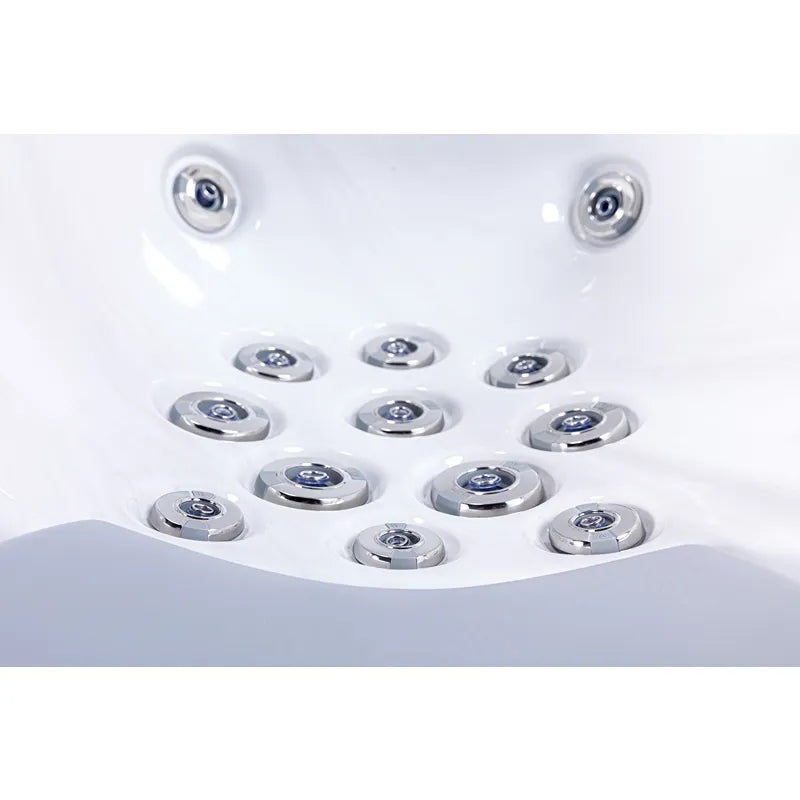

| Total number of jets |
52 hydrotherapy jets |

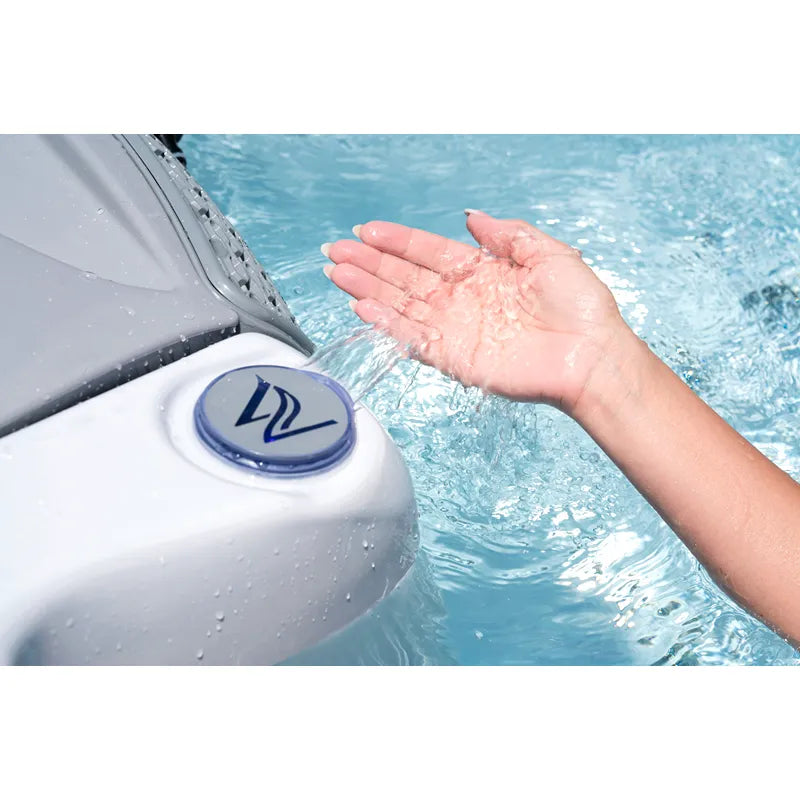

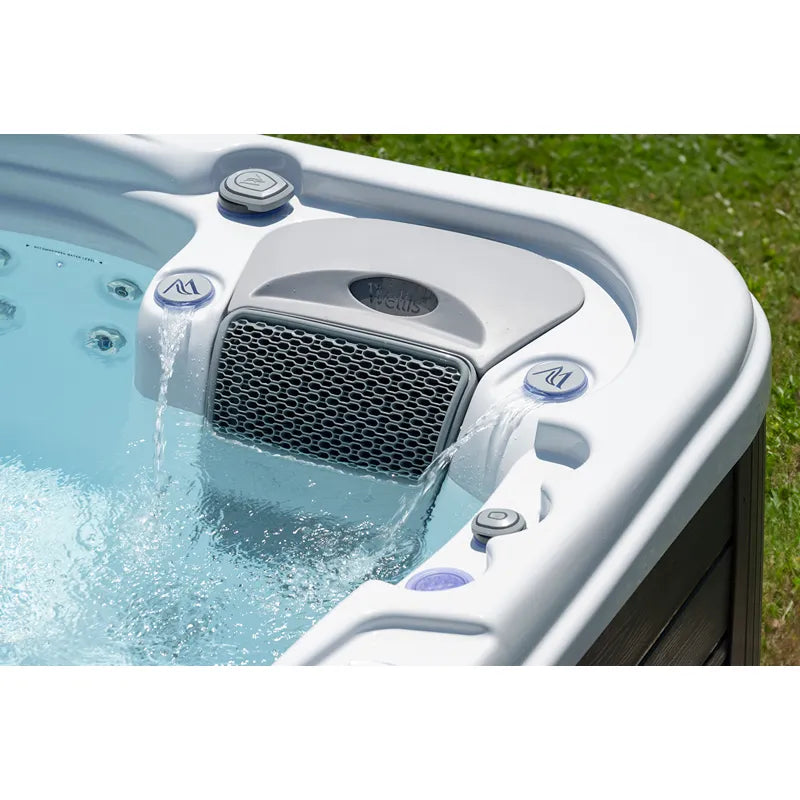

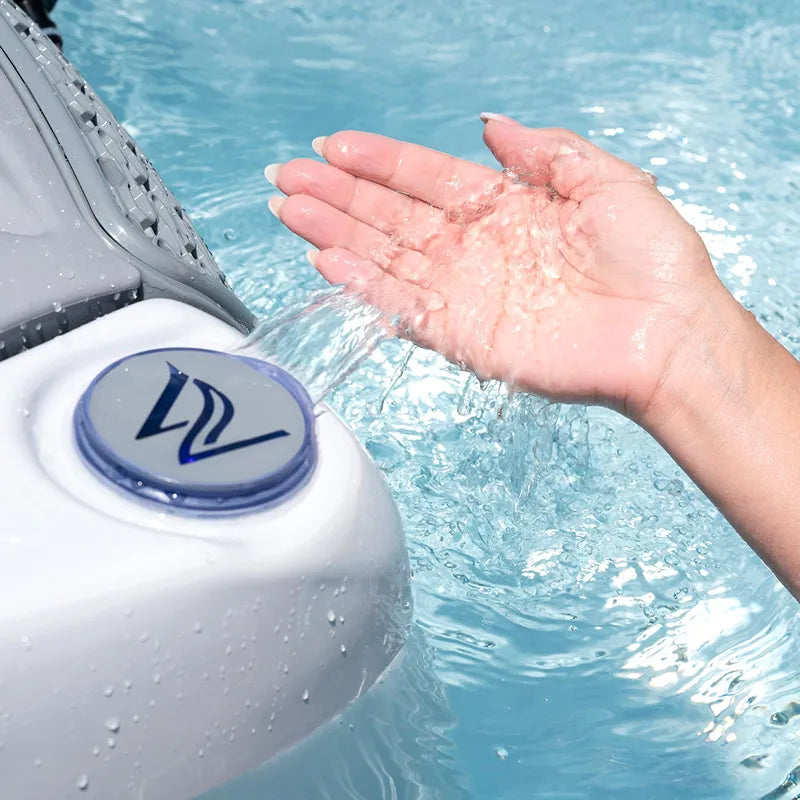

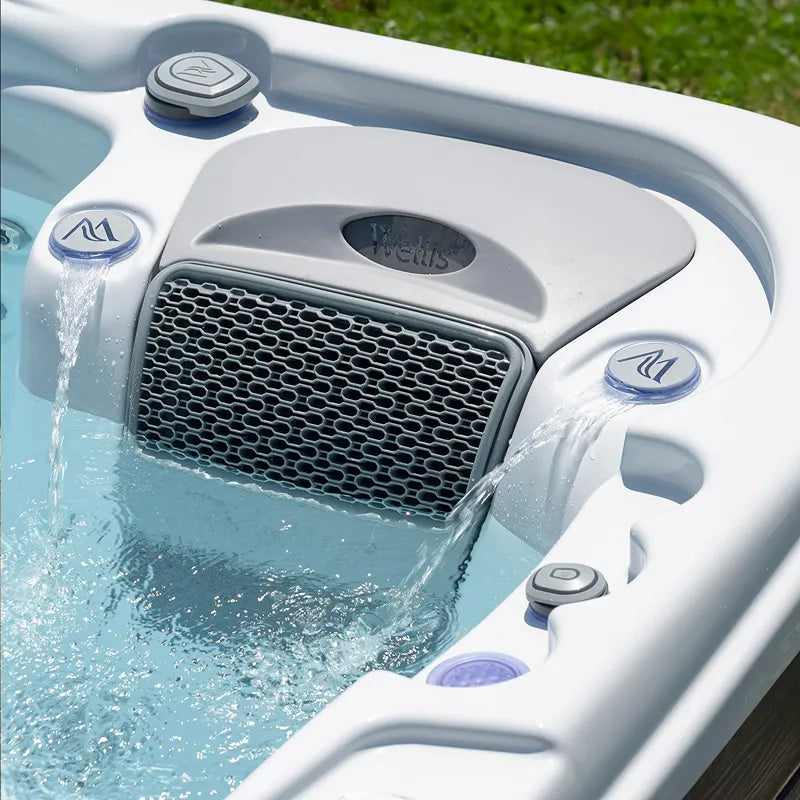

| Water fountains |
2 illuminated laminar fountain jets |
| Hydromassage Pumps |
2 × 3 PS single-speed (230V/50Hz) |
| Circulation pump |
W-EC energy-efficient (0.25 kW / 190 W/h) |
| Heating Capacity |
3 kW |
| Energy Consumption |
2.8 kWh/day (CEC standard, TÜV certified with heat pump) |
| Basic Measurement Conditions |
Water 39 °C, Air 17 °C, Filtration 1 × 2 hours |

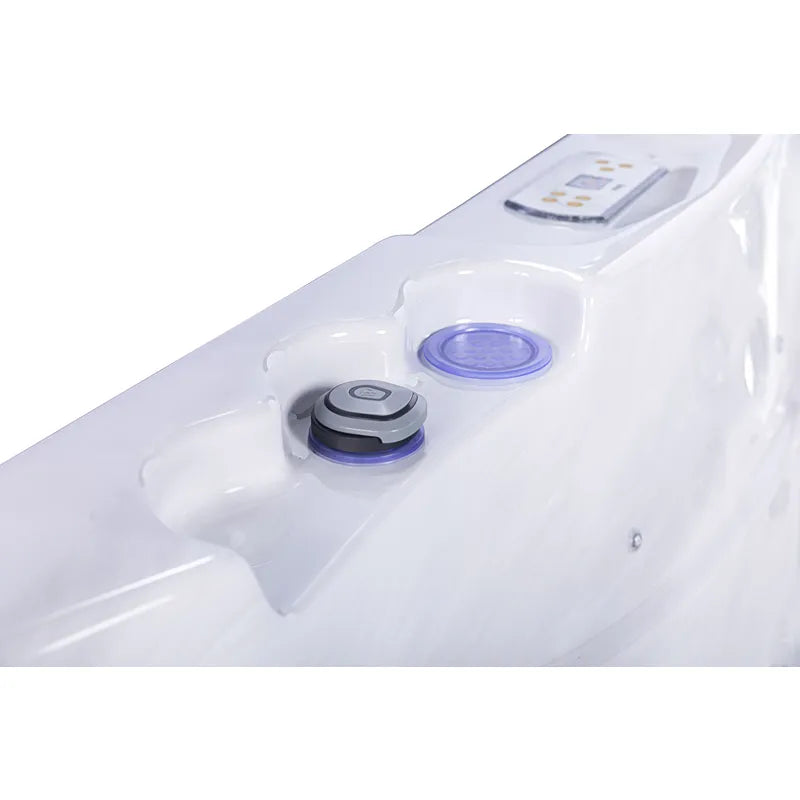

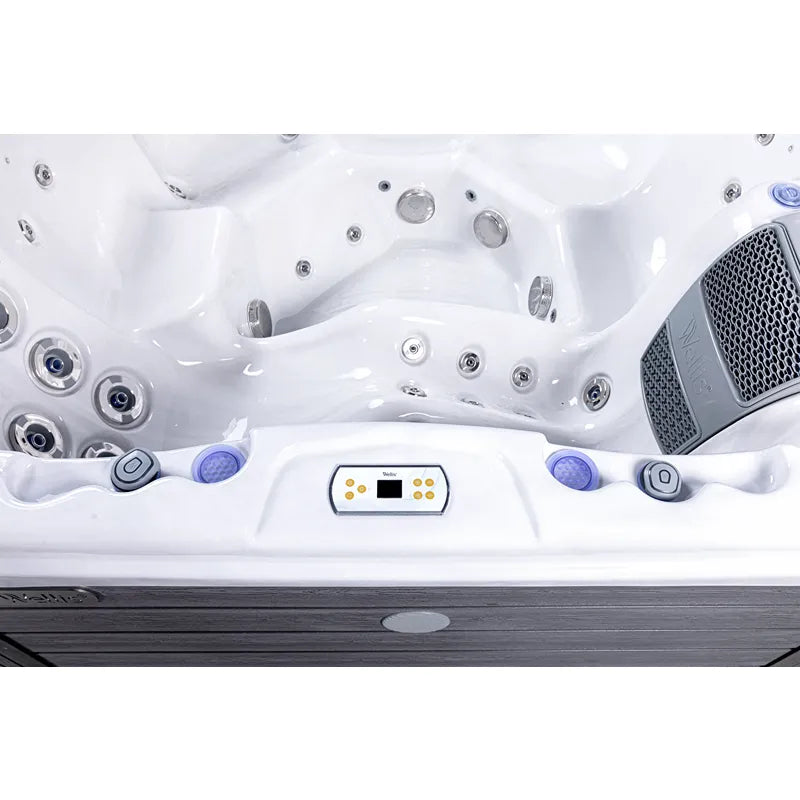

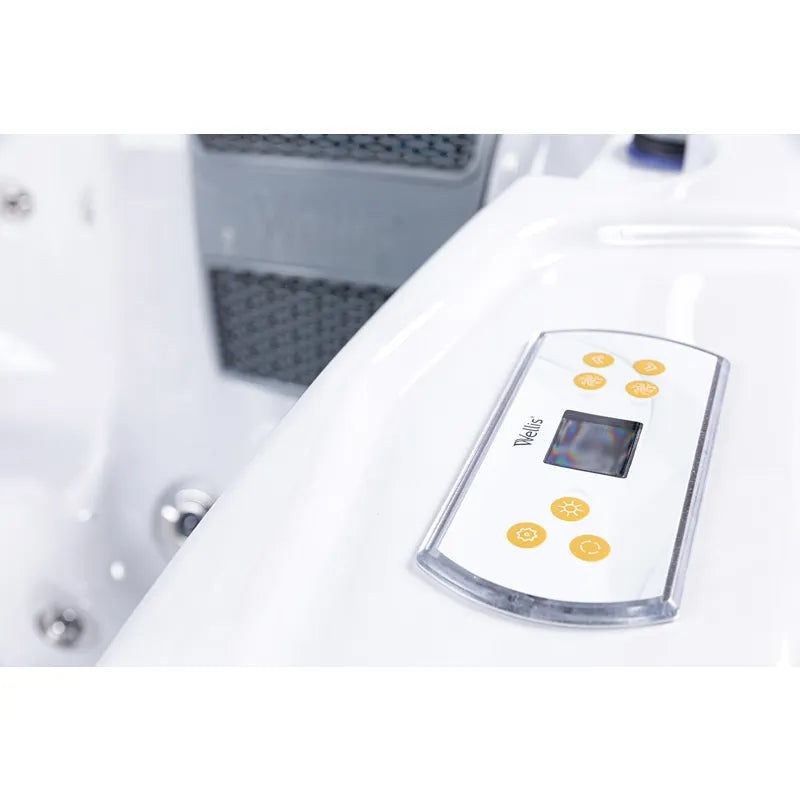

| Control panel |
Gecko (IN.YE-3) |
| Control Panel |
Easy7 |
| Smartphone App |
Yes, Wi-Fi connection |
| Color Therapy |
1-Zone Lighting System |
| Sound System |
MyMusic™ 2.0 Bluetooth |
| Filters |
3 × Superfine Filter Cartridges |
| Water Treatment |
Ozmix™ System (Ozone + Mixer) |
| Bowl |
Acrylic with Poli-Max™ polyurethane reinforcement |
| Frame |
WPS (Hot tub Pool System) |

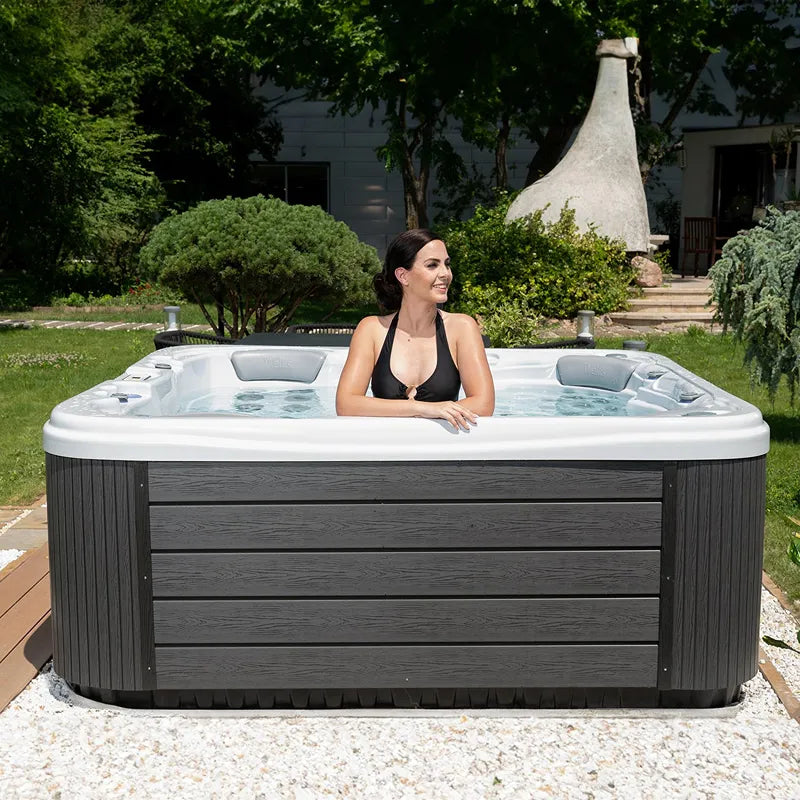

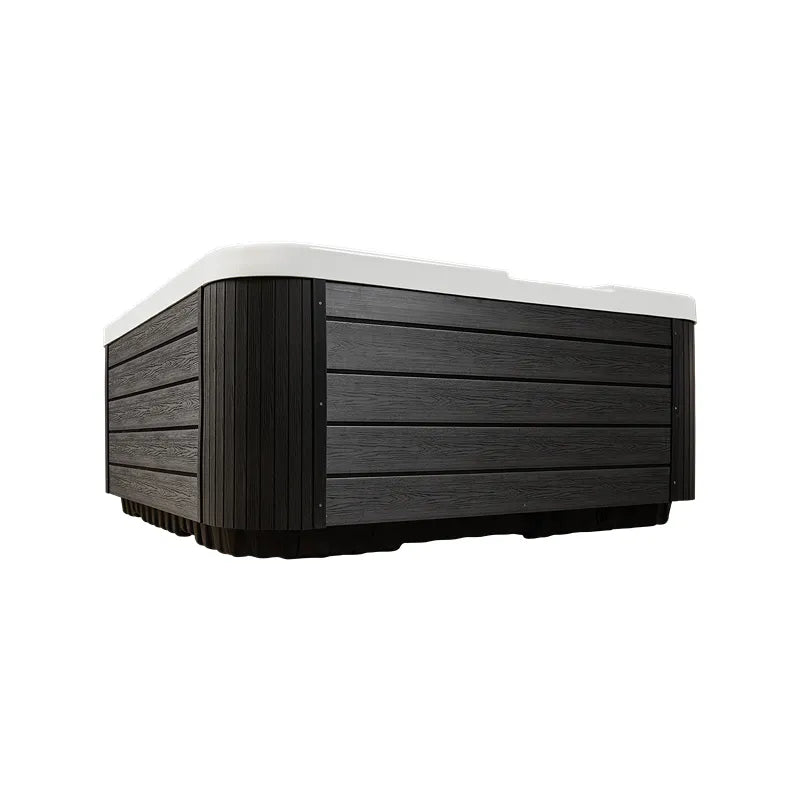

| Side Cover |
HorizonSide™ UV-resistant plastic with a wood-grain finish (brown or gray) |
| Insulation |
Life Scandinavian Insulation System (insulation panels, air pockets, heat-reflective foil) |
| Minimum connection |
1 × 25A – 230V/50Hz |
| Optional connection |
1 × 40A – 230V/50Hz or 3 × 16A – 400V/50Hz |
| Thermal Cover |
Standard (insulated thermal cover optional) |
| Heat pump (optional) |
3 kW, operable from -5 °C to +40 °C, 70–75% savings on heating energy |
| Certifications |
CEC Energy Efficiency Standard, TÜV-certified |
| Substrate |
The surface must be level, solid, and able to support at least 1,500 kg. A concrete slab is ideal; existing patio slabs or pavers are acceptable if the subbase is solid and level. Grass is not suitable. Water must be able to drain away from Hot tub Hot tub. |
| Space requirements (all sides) |
At least 50 cm on all sides, preferably 60 cm—the service technician must be able to access all four sides. If the Hot tub is installed on a patio, be sure to plan for access to the service door (usually on the side of the control panel). |
| Delivery |
The Hot tub is delivered upright on a transport dolly—this makes it about 15–20 cm taller than its listed dimensions. Please check the clearance width, gate widths, steps, and tree branches in advance. If access is insufficient, a truck-mounted crane is required; the customer is responsible for arranging and paying for this. |
| Power Connection |
Permanent installation by a licensed electrician; dedicated circuit with a ground-fault circuit interrupter (GFCI). The exact fuse rating is listed in the technical specifications for this model. |
| Questions about installation |
Send us photos of the driveway, the access route, and the planned installation site—we’ll review them in advance and let you know what you need to prepare. |
| Warranty on Frames and Insulation |
Lifetime (WPS Framework) |
| Warranty on Pool Structure and Acrylic |
10 years |
| Technical Warranty |
3-year warranty on pumps, control box, display, and trim · 2-year warranty on piping, jets, heat pump, cover, audio, and LED |
| Warranty – Not Covered |
Consumables such as filter cartridges |
| Warranty – Prerequisites |
Installation on a level, load-bearing surface over the entire area · proper water maintenance |
| In the event of a warranty claim |
Just contact us—we’ll handle the process with the manufacturer and coordinate with you to determine the best way to carry out the repair on-site. The statutory warranty remains unaffected. |
