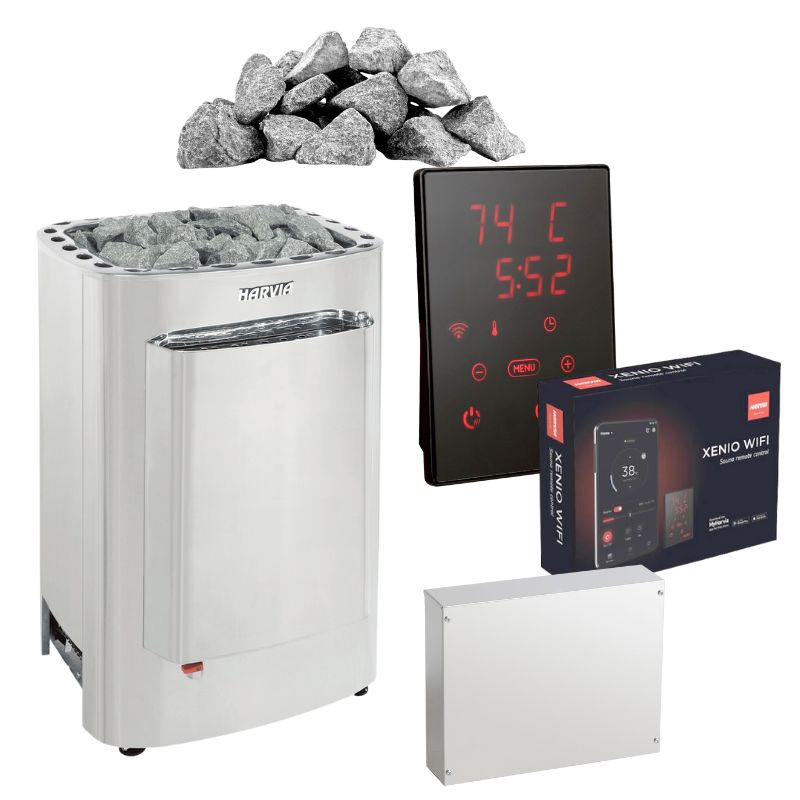

Harvia Club Combi Sauna Heater Complete set including stones & Fenix WiFi control
incl. VAT
incl. VAT
| Product Type | Electric Combination Sauna Heater Complete Set (Heater + Control Panel + Stones) |
| Types of Saunas | Traditional sauna, steam sauna, herbal sauna, aroma sauna |
| Performance Levels | 11 kW / 13.5 kW / 15 kW |
| Sauna Volume (11 kW) | 9–16 m³ |
| Sauna Volume (13.5 kW) | 11–20 m³ |
| Sauna Volume (15 kW) | 14–24 m³ |
| Temperature range | 40–110 °C |
| Amount of stone | 60 kg |
| Stone Size | Ø 5–10 cm |
| Heater Dimensions (W × D × H) | 505 × 490 × 700 mm |
| Stove Weight (without stones) | 30 kg |
| Main material of the heater | Stainless steel |
| Heater Installation | Freestanding model, vertical installation |
| Heater IP Rating | IPX4 |
| Control System | Harvia Fenix FX110C WiFi (separate control unit with touch panel) |
| Max. power output | 11 kW (expandable to 28 kW with the LTY17 power supply) |
| Control Panel (W × D × H) | 93 × 20 × 131 mm |
| Power Supply (W × D × H) | 275 × 80 × 205 mm |
| Total weight of control unit | 2.84 kg |
| Control Panel Type | 4.3-inch touchscreen with glass display |
| IP Rating of the Control System | IPX5 |
| WiFi / App Control | Yes, MyHarvia App (with MyHarvia Control Upgrade: full remote control) |
| AI Learning Function | And |
| Temperature Sensor Cable Length | 4 m |
| Control Panel Data Cable Length | 5 m (RJ10 4P4C) |
| Door Sensor Cable Length | 5 m |
| Power connection for the heater | 400 V 3N~ |
| Fuse for Heater (11 kW) | 3 × 16 A |
| Heater Circuit Breaker (13.5 kW / 15 kW) | 3 × 25 A |
| Heater Power Cord | 5 × 2.5 mm² |
| Control Unit Protection | 3 × 16 A (400 V 3N~) |
| Separate control unit connection | Yes, 1-phase 10 A required |
| Frequency | 50/60 Hz |
| Front Safety Distance | 50 mm |
| Side Safety Clearance | 50 mm |
| Rear Safety Distance | 70–100 mm (depending on the model) |
| Safety clearance from the ceiling | 1.2–1.4 m (depending on the model) |
| Minimum ceiling height | 2 m |
| Storage temperature | 0–50 °C |
| Usage Environment | Interior – Wet Area |
| Certificates | CE, EAC |
| Item Number: Heater (11 kW) | HRKG110400S |
| Item Number: Heater (13.5 kW) | HRKG135400S |
| Item Number: Heater (15 kW) | HRKG150400S |
| Control Unit Part Number | FX1104CXC |
Please check all relevant information about the product (dimensions, technical requirements, power/water connections, space requirements, delivery conditions) before ordering. If you have any questions, we recommend a consultation before purchasing, especially for larger wellness products.
