| Model |
AWT THE CUBE X5-R Hemlock 235x235 |
| Sauna type |
Finnish Sauna |
| Version |
Right (X5-R), door hinge on the right |
| External dimensions (L × W × H) |
235 × 235 × 250 cm |
| Interior Dimensions (L × W × H) |
233.2 × 234.2 × 244.5 cm |
| Capacity |
4 or more Persons |
| Wood Type |
Hemlock (Canadian hemlock) |
| Wall thickness |
95 mm total |
| Insulation |
70 mm mineral wool with a vapor barrier that allows water vapor to pass through |
| Glazing |
27 mm double-pane insulated glass (6+15ar+6) |
| Profile |
Technoform anodized aluminum (scratch-resistant, heat-resistant) |
| Fittings |
Sobinco |
| Type |
Soft-close with a locking function for ventilation |
| Roofing |
EPDM membrane (to be installed by the customer) |
| Lighting |
Indirect LED ambient lighting with colored light (ceiling and back wall) |
| Ventilation |
Built-in ventilation slots with adjustable outlet flaps |
| Drainage |
Integrated splash water drainage |
| Power Connection |
400 V (high-voltage current); installation must be performed by a licensed utility provider or a registered installation contractor |
| Installation |
Pre-assembled wall panels, floor, and roof |
| Optional Accessories |
SBM App Module for remote control via app (additional charge of €999.00, including tax); AWT pergola (optional); wood stain (breathable, water-soluble) |
| Custom-Made Products |
Customizable (dimensions, heater selection, mirror finish) |
| Manufacturer |
EAGO Deutschland GmbH, Auf dem großen Damm 13-19, 47546 Kalkar |
| Comparison of Heater Types |
| Feature |
9 kW Harvia Cilindro |

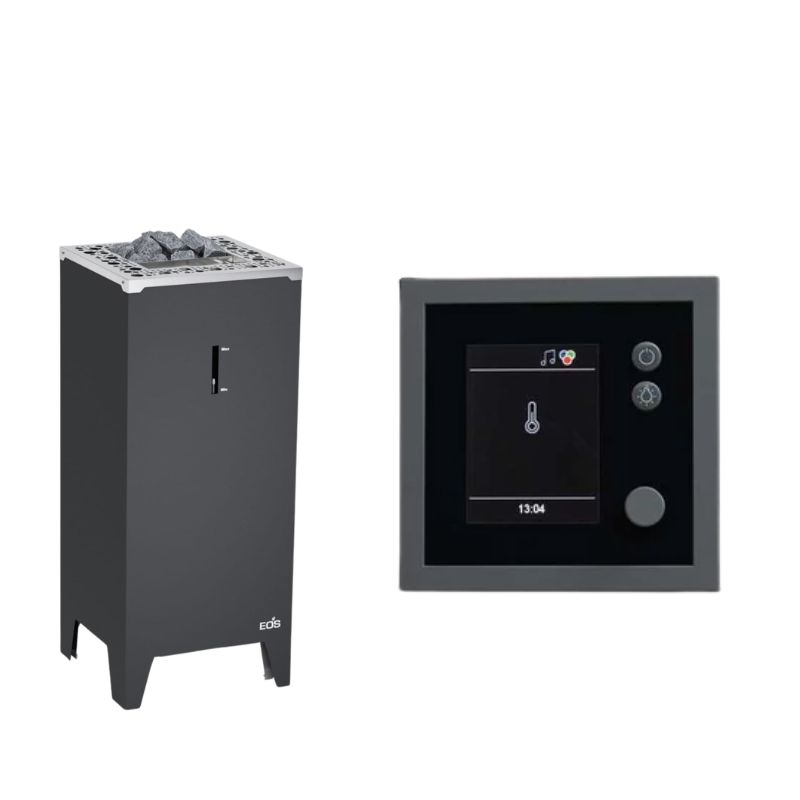

9 kW EOS BiO-Cubo |

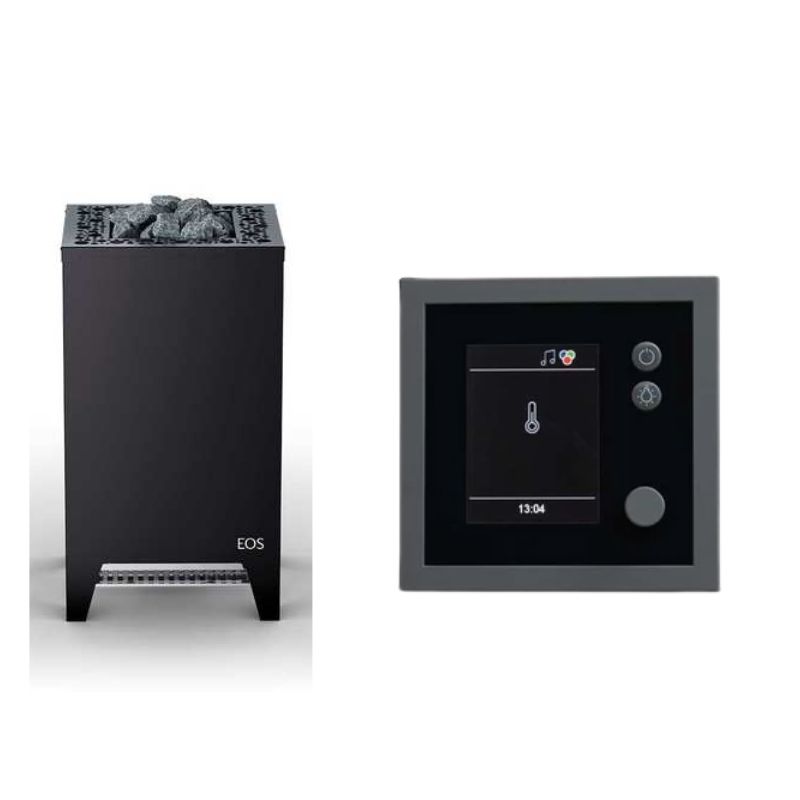

9 kW EOS Cubo |
Without a heater |
| Item No. |
17180 |
17181 |
17182 |
17183 |
| Heater Capacity |
9 kW |
9 kW |
9 kW |
– |
| Heater Construction |
Stone chamber with stainless steel exterior grille |
Double-walled, stainless steel inner lining, 25 kg of stones, evaporator |
Double-walled, stainless steel inner lining, 25 kg of stones |
– |
| Heater Surface |
Stainless steel |
Anthracite pearlescent powder coating |
Anthracite pearlescent powder coating |
– |
| Control System |
Integrated Control System |
EOS Emotec H (TFT display, 19 languages, installation distance up to 100 m) |
EOS Emotec E (TFT display, 19 languages, up to 100 m installation distance) |
– |
| Bio-Function |
No |
Yes (built-in vaporizer) |
No |
– |
| Herb Bowl |
No |
And |
And |
– |
| Delivery Time |
2–5 days |
2–5 days |
56 days |
2–5 days |
| Foundation |
Level, stable, and frost-resistant. Options include a concrete slab, point or strip footings (typically about 80 cm deep in Austria and Germany to ensure frost resistance), compacted gravel, or a paved surface. The foundation should be about 10 cm above the surrounding ground—this protects against splashing water. |
| Why this is important |
An uneven or insufficiently strong foundation can cause the frame to warp, resulting in doors and windows that stick or gaps forming. Such damage is not covered by the warranty. |
| Space requirements (all sides) |
Keep a clear space around the plants so the walls can dry. Water must be able to drain away from the sauna. |
| Wood Preservation |
After assembly, treat the exterior surfaces with wood preservative and inspect them at least twice a year. Do not paint or varnish the interior—the wood must be able to breathe. |
| Clarify before purchasing |
Whether a Outdoor Sauna in Austria requires a permit depends on the state, the size, and the zoning plan—the limits range from 10 m² in Lower Austria to 40 m² in Styria. Distance requirements from property lines are also determined by each state. Please check with your local municipality before purchasing. If you have a wood-burning stove, you’ll also need to have it inspected by a chimney sweep. |
| Questions about installation |
Send us photos of the driveway, the access path, and the planned installation site—we’ll take a look beforehand and let you know what you need to prepare. |
