| Model |
THE CUBE X5-L |
| Type |
Finnish Sauna |
| Specifications |
Left Version (X5-L) |
| External Dimensions (L × W × H) |
2350 × 2350 × 2500 mm |
| Interior Dimensions (L × W × H) |
2332 × 2342 × 2445 mm |
| Capacity |
4 or more Persons |
| Wood Type |
Hemlock (Canadian hemlock) |
| Wall thickness |
95 mm total |
| Insulation |
70 mm mineral wool with a vapor barrier that allows water vapor to pass through |
| Glazing |
27 mm double-pane insulated glass (6+15ar+6) |
| Profile |
Anodized Technoform aluminum profiles (scratch-resistant, heat-resistant) |
| Fittings |
Sobinco |
| Type |
Soft-close and locking functions |
| Roofing |
EPDM liner (to be installed by the customer) |
| Lighting |
Indirect LED ambient lighting with colored light (ceiling and back wall) |
| Climate Control |
Adjustable outlet flap, built-in ventilation slots |
| Drainage |
Designed to withstand splashing water |
| Installation |
Pre-assembled components (walls, floor, roof) |
| Power Connection |
400 V (high-voltage current), installation by a licensed contractor |
| Sauna Types |

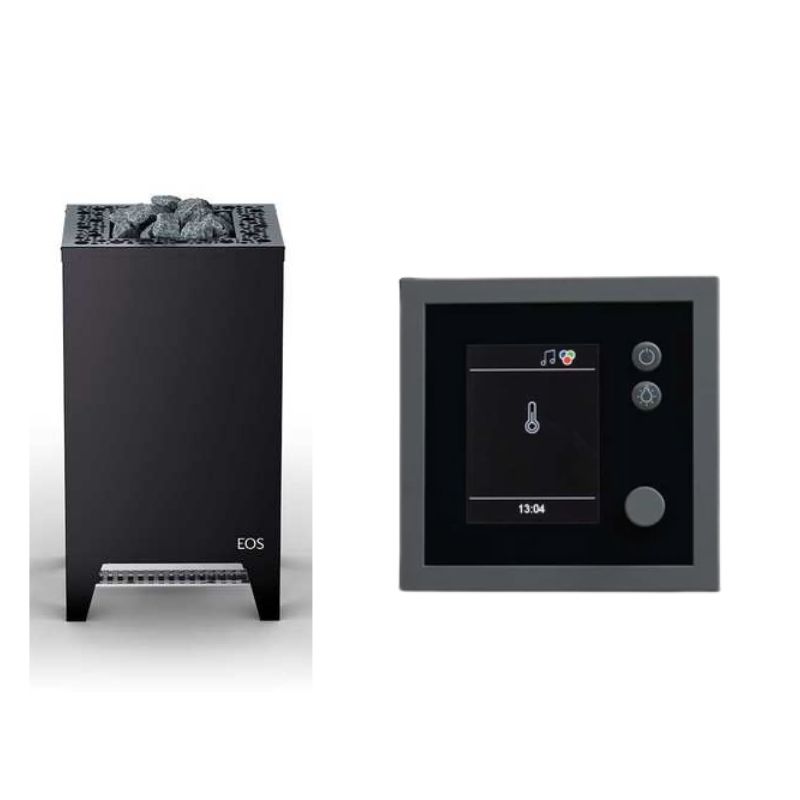

| Variant |
9 kW EOS Cubo |
| Item Number |
17178 |
| Heater |
EOS Cubo 9 kW |
| Coating |
Anthracite pearl-effect powder coating |
| Construction |
Double-walled, with a stainless steel inner lining and a flat back panel with a recessed junction box |
| Amount of stone |
25 kg optimized |
| Control System |
EOS Emotec E (TFT display, 19 languages, control panel can be mounted up to 100 m away) |
| App Control |
Optional: SBM App Module (additional charge of €999.00) |
|
| Variant |
9 kW Harvia Cilindro |
| Item Number |
17176 |
| Heater |
Harvia Cilindro 9 kW |
| Steinkammer |
Stainless steel exterior grille |
| Control System |
Integrated Control System |
|
| Variant |

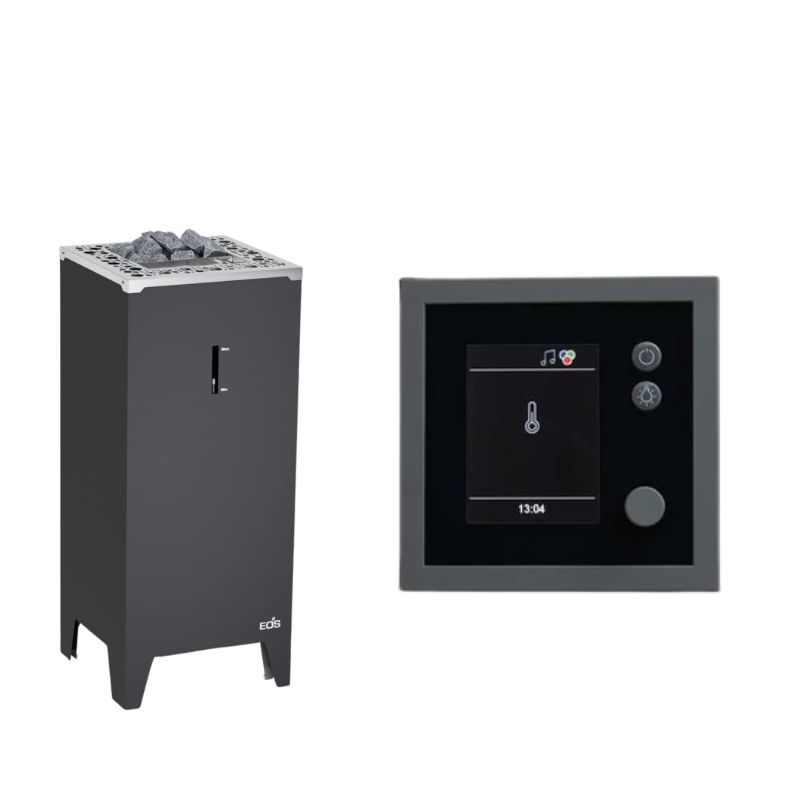

9 kW EOS BiO-Cubo |
| Item Number |
17177 |
| Heater |
EOS BiO-Cubo 9 kW with evaporator |
| Control System |
EOS Emotec H (TFT display, 19 languages, switch between Finnish and Bi-O mode) |
|
| Variant |
Without a heater |
| Item Number |
17179 |
| Heater |
Sauna Heater not included |
| Optional Accessories |
| SBM-App Module |
Remote control via app, compatible with Emotec E / Emotec H (additional charge of €999.00) |
| Pergola |
Can be combined as an option (compatible with X4–X7) |
| Manufacturer |
| Manufacturer |
EAGO Deutschland GmbH |
| Address |
Auf dem großen Damm 13-19, 47546 Kalkar |
| Foundation |
Level, stable, and frost-resistant. Options include a concrete slab, point or strip foundations (typically about 80 cm deep in Austria and Germany to ensure frost resistance), compacted gravel, or a paved surface. The foundation should be about 10 cm above the surrounding ground—this protects against splashing water. |
| Why this is important |
An uneven or insufficiently strong foundation can cause the frame to warp, resulting in doors and windows that stick or gaps forming. Such damage is not covered under warranty. |
| Space requirements (all sides) |
Keep a clear space around the plants so the walls can dry. Water must be able to drain away from the sauna. |
| Wood Preservation |
After assembly, treat the exterior surfaces with wood preservative and inspect them at least twice a year. Do not paint or varnish the interior—the wood must be able to breathe. |
| Clarify before purchasing |
Whether a Outdoor Sauna in Austria requires a permit depends on the federal state, the size, and the zoning plan—the limits range from 10 m² in Lower Austria to 40 m² in Styria. Boundary distances are also determined by the federal state. Please check with your local municipality before purchasing. If the sauna has a wood-burning stove, it must also be inspected by a chimney sweep. |
| Questions about installation |
Send us photos of the driveway, walkway, and the planned installation site—we’ll take a look beforehand and let you know what you need to prepare. |
