| Feature | extreme Sterling Silver (17262) | extreme CloudyBlack (17263) | Sterling Silver Heat Pump (17264) | CloudyBlack Heat Pump (17265) |
| Acrylic paint | Sterling Silver (marbled) | CloudyBlack (marbled) | Sterling Silver (marbled) | CloudyBlack (marbled) |

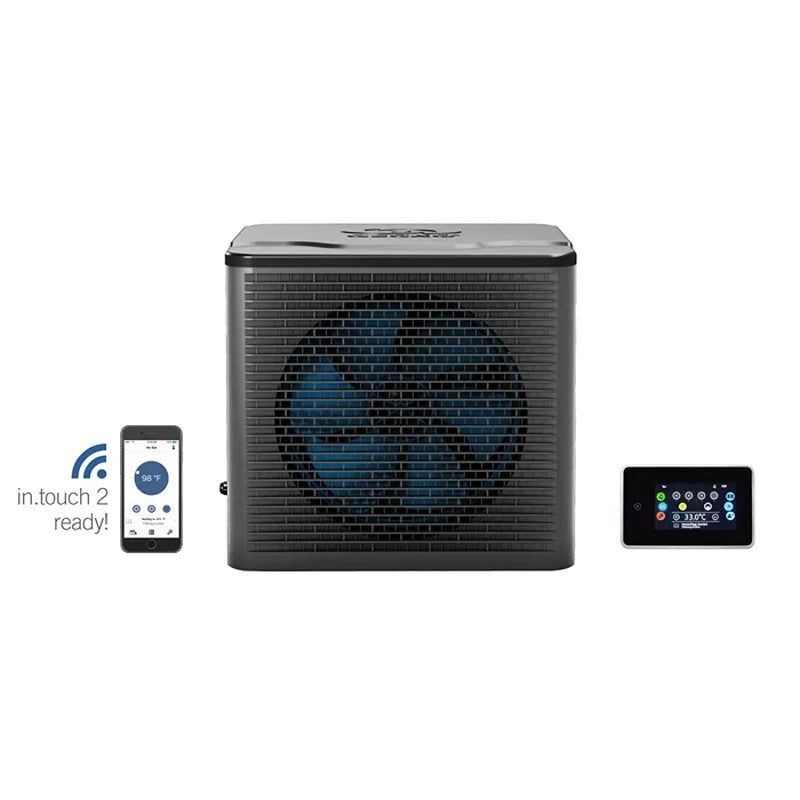

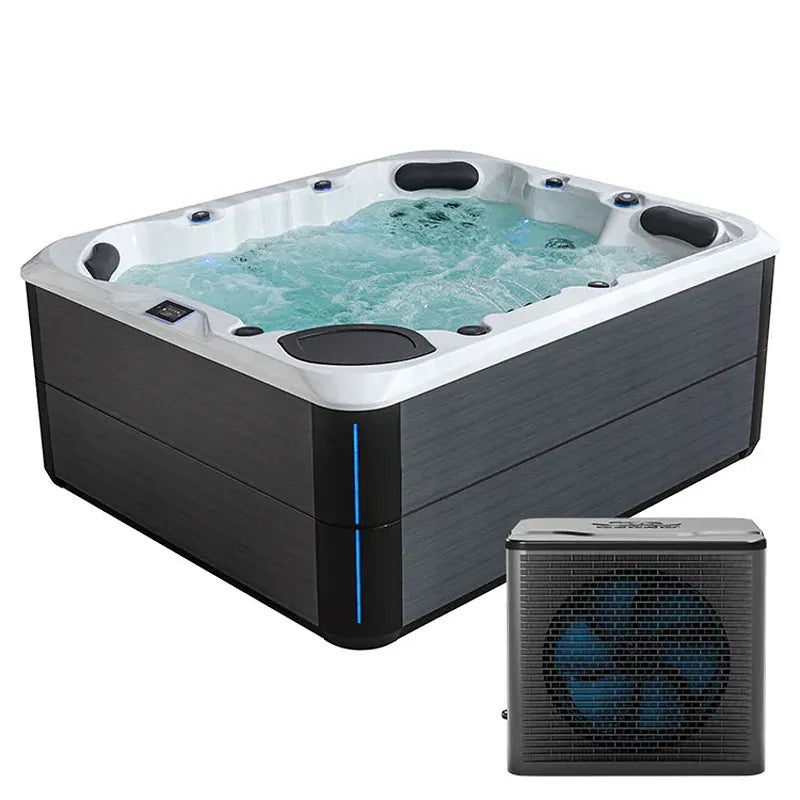

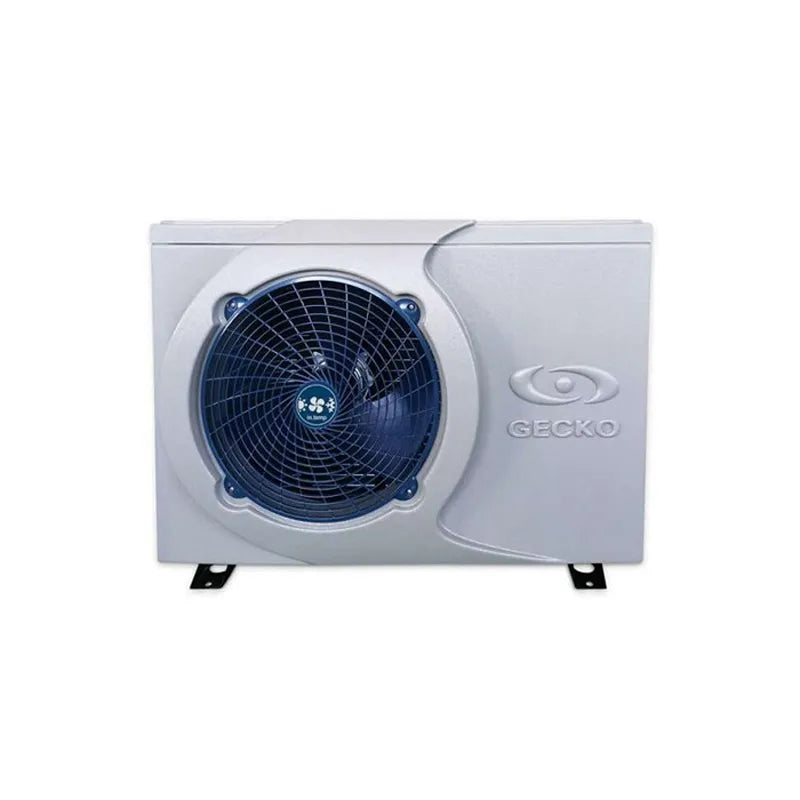

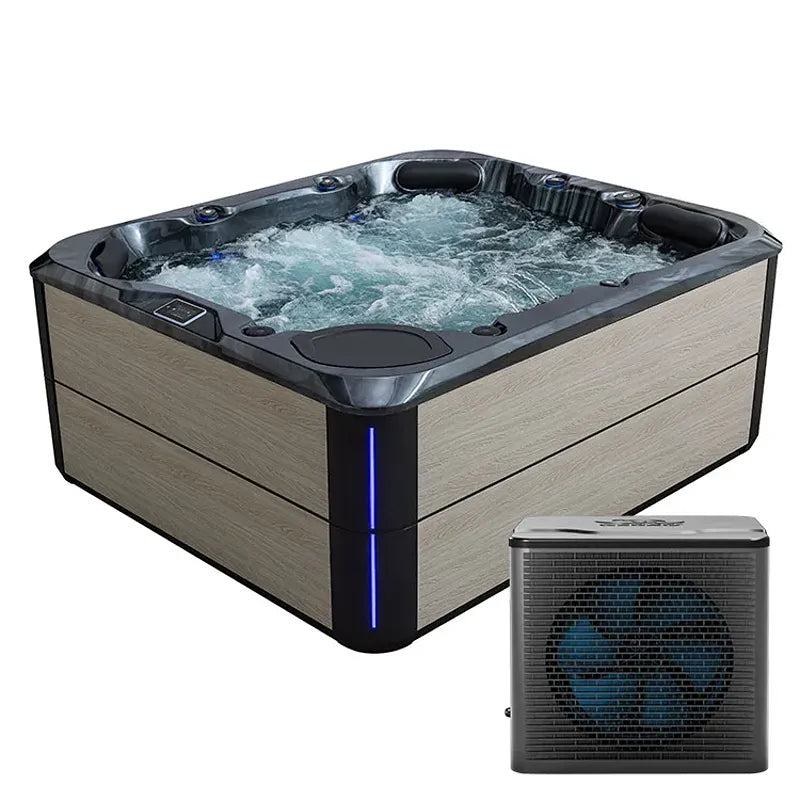

| Heat Pump | Not included (Ready for Heat Pump) | Not included (Ready for Heat Pump) | Gecko in.temp mini (3 kW) included | Gecko in.temp mini (3 kW) included |
| Warranty | 3 × 16 A | 3 × 16 A | 3 × 20 A | 3 × 20 A |

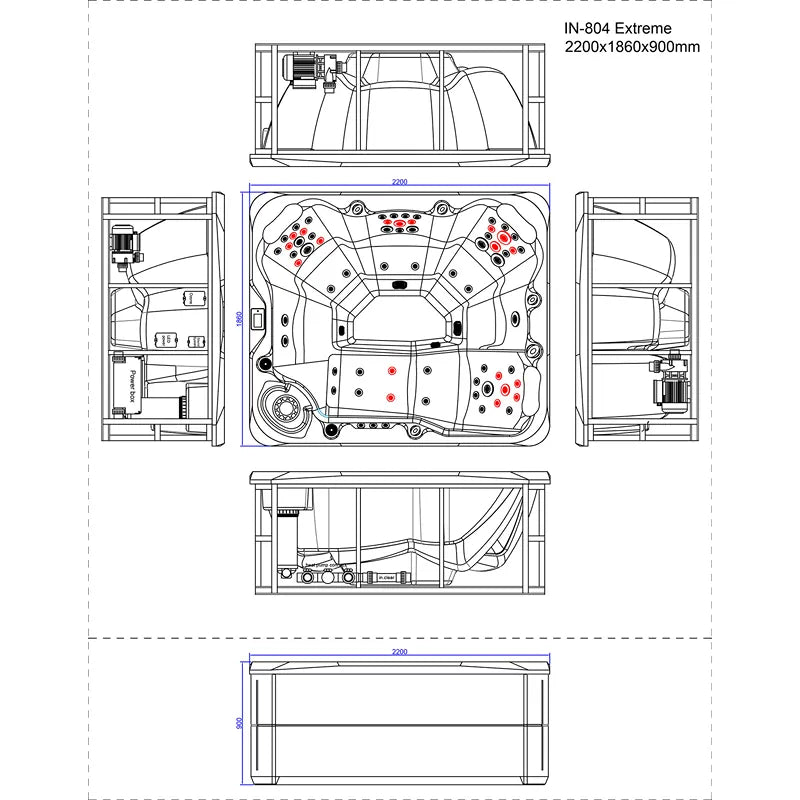

| Dimensions (L × W × H) | 2200 × 1860 × 900 mm |
| Weight (leather) | 305 kg |
| Water Capacity | 1,000 Liters |
| Persons | 5–6 Persons (including 1 lounger) |

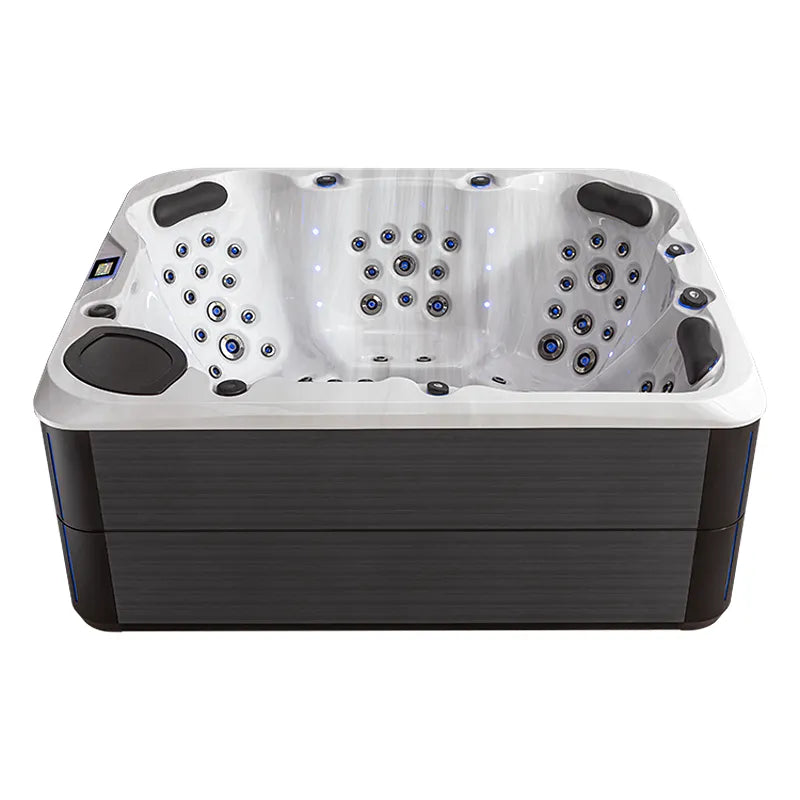

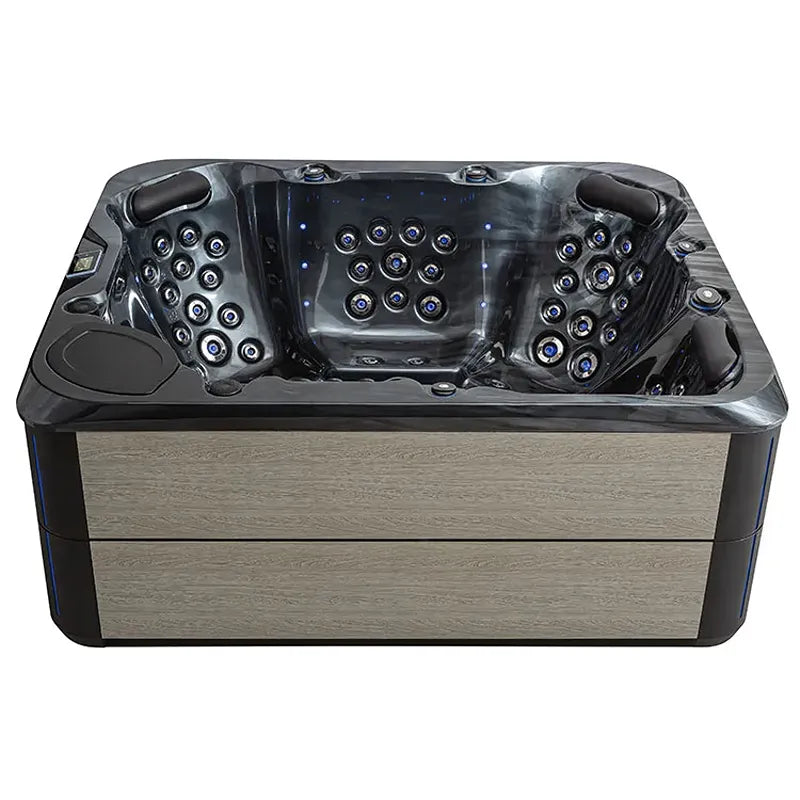

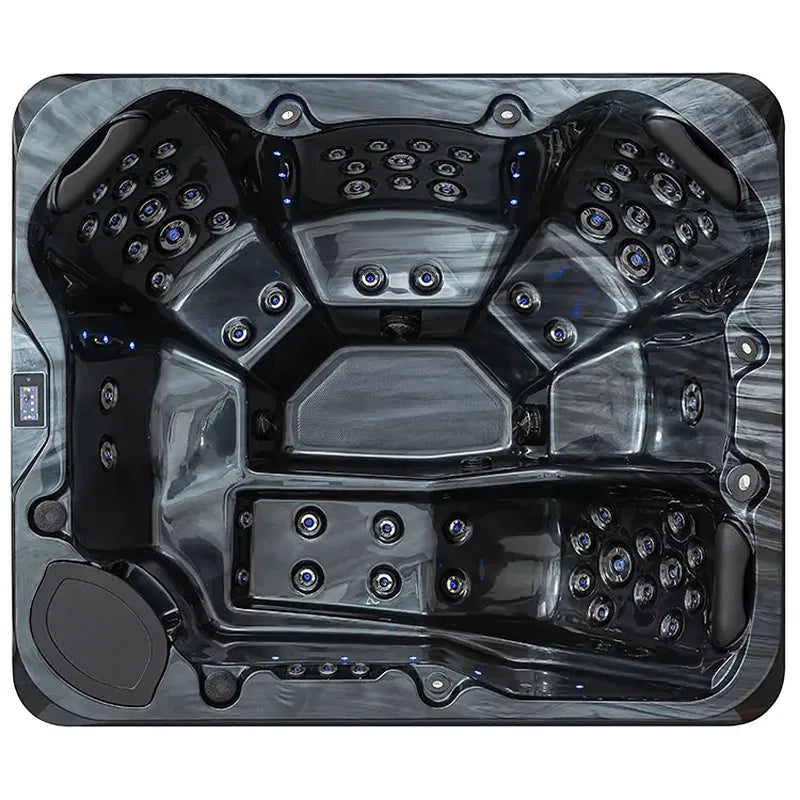

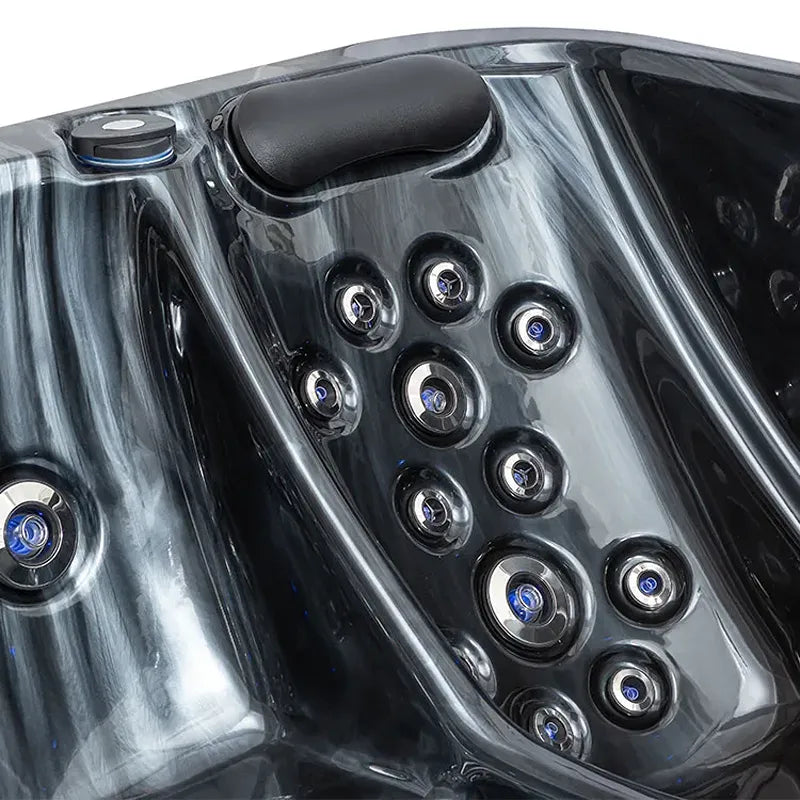

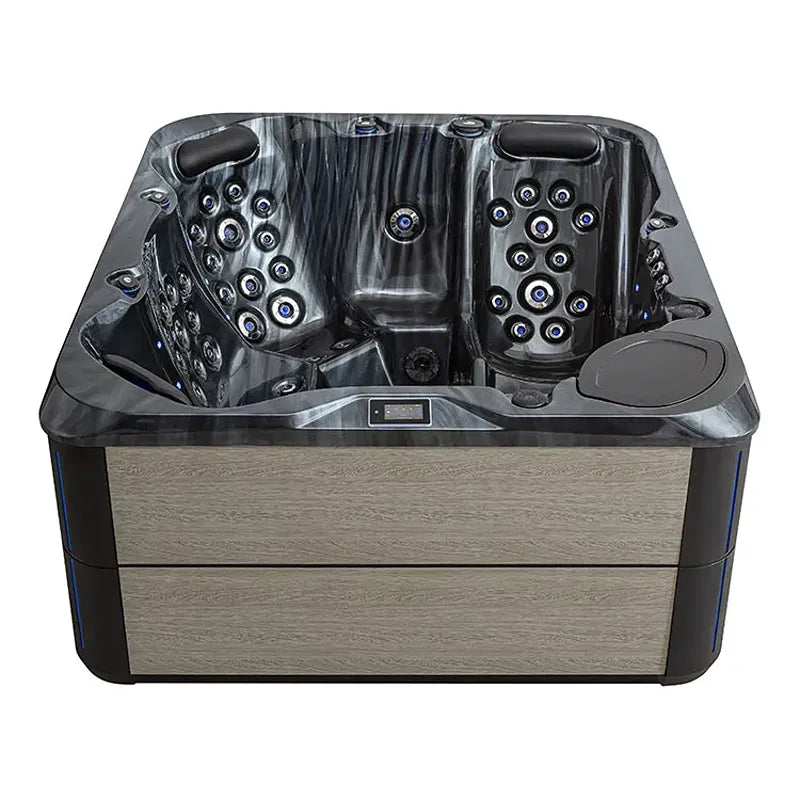

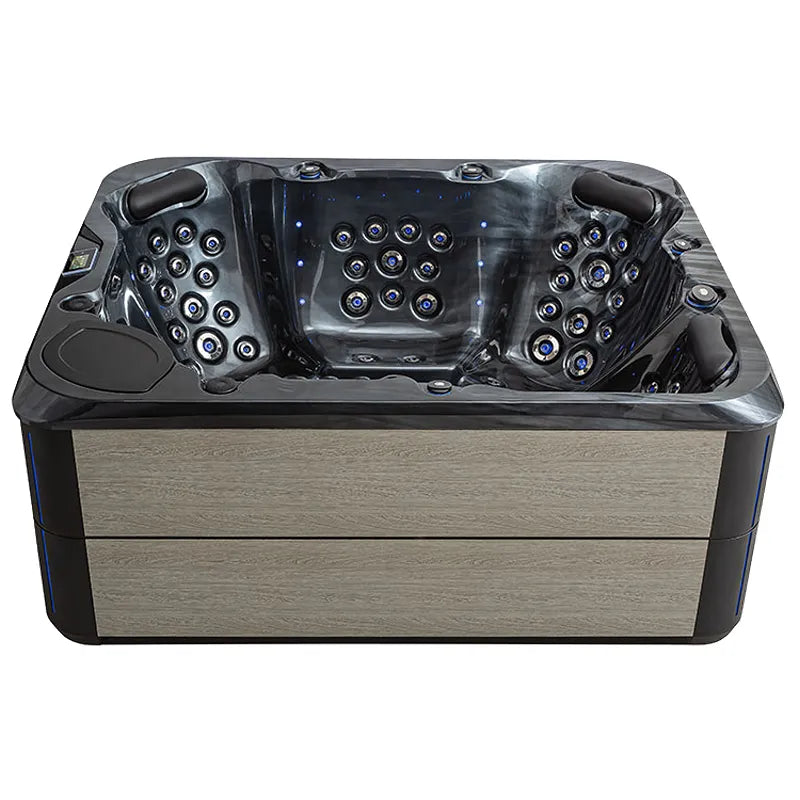

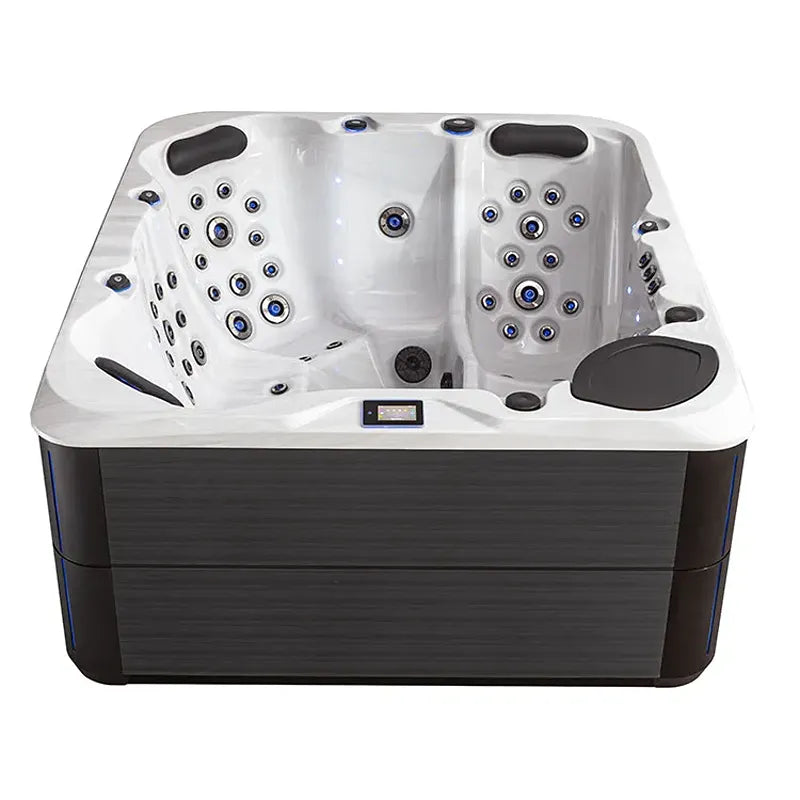

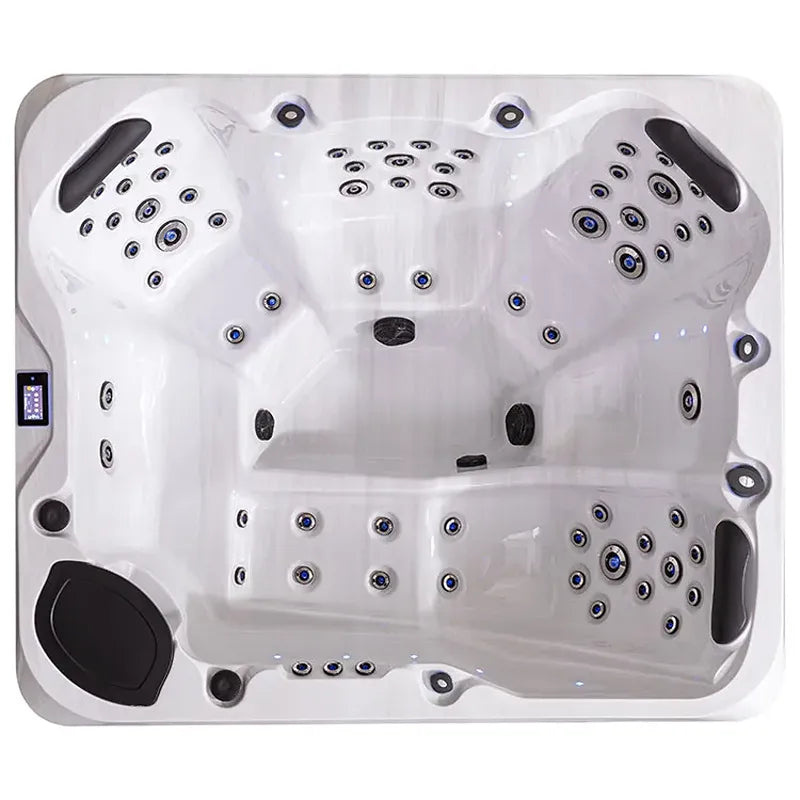

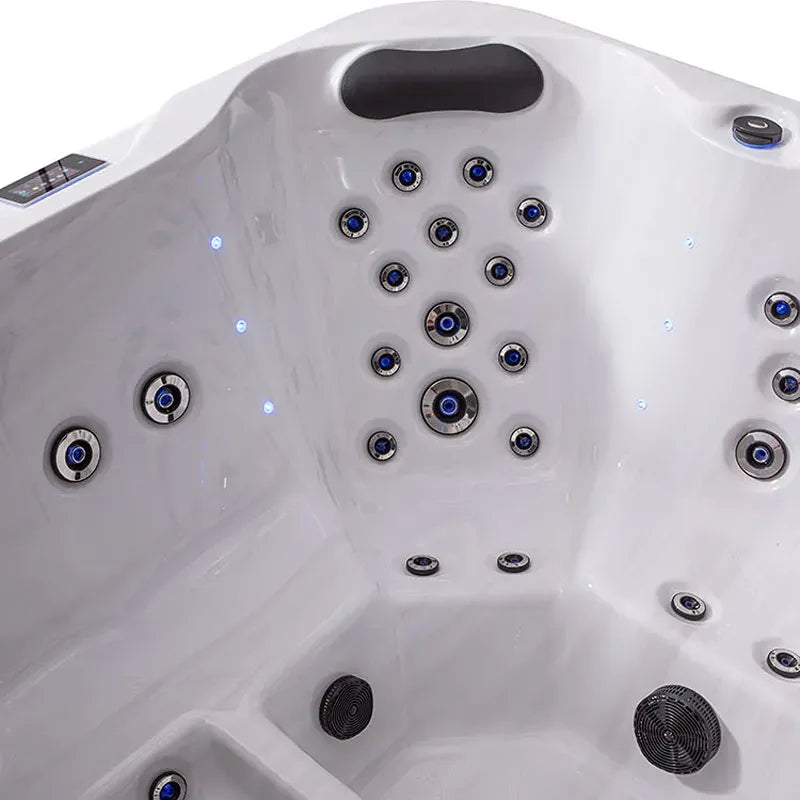

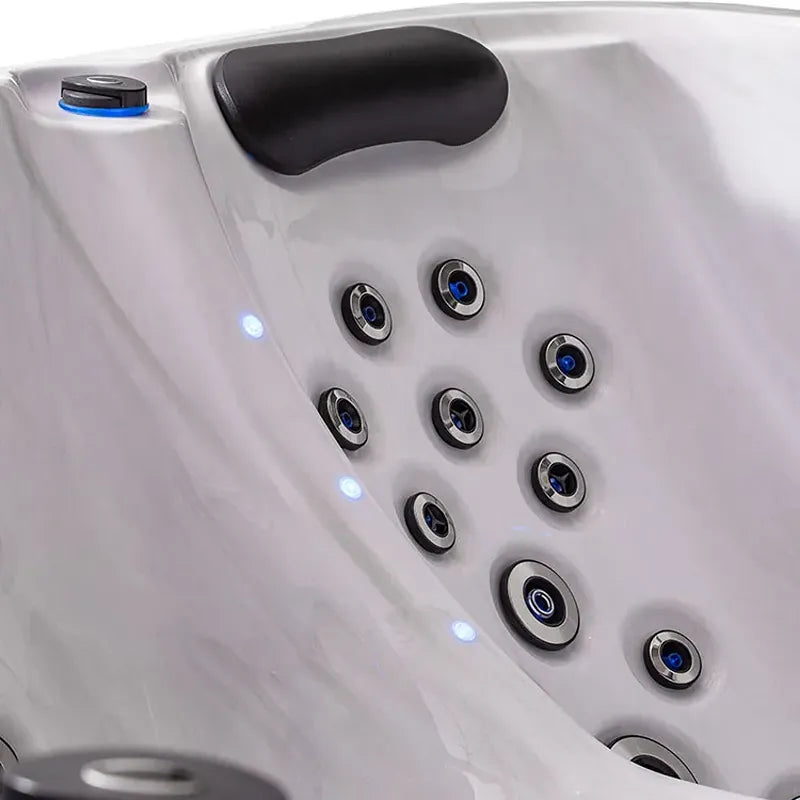

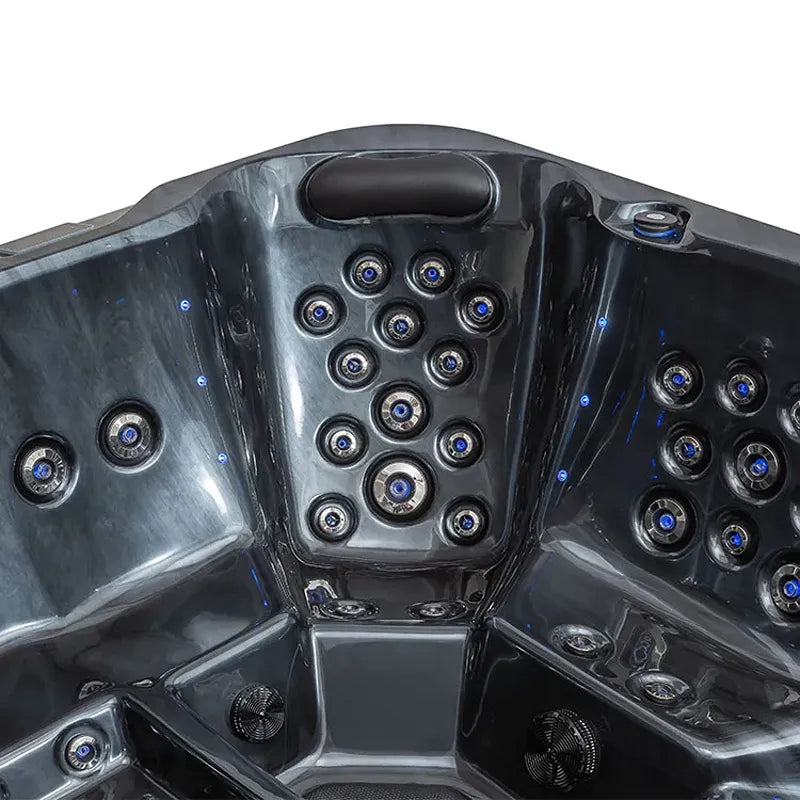

| Hydrojets | 64 illuminated hydrojets (19 of which feature a rotation function) |

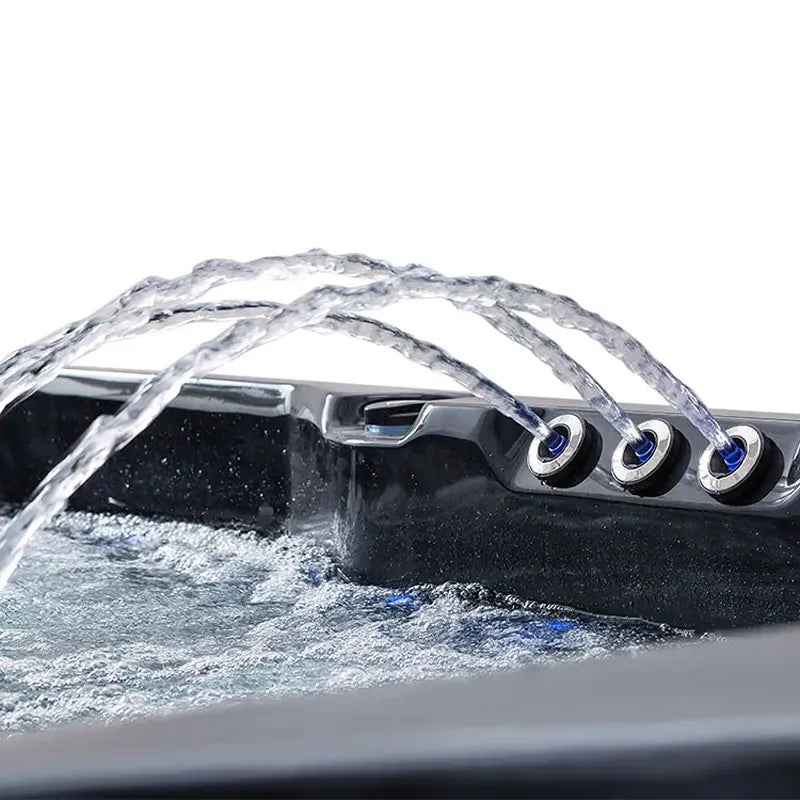

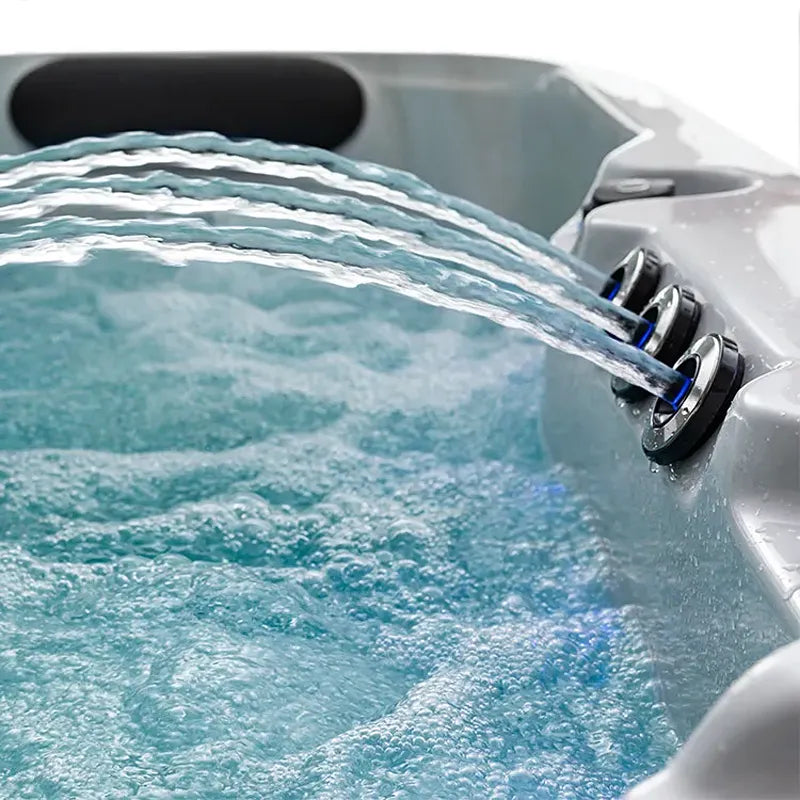

| Water fountains | 3 illuminated water fountains |
| Air Injection | 3 illuminated controls |
| Flow Direction Control | 1 illuminated control knob |
| Hydro Pump 1 (LX) | 2.200 W |
| Hydropump 2 (LX) | 1.800 W |
| Circulation Pump (LX) | 180 W |
| Heating | 3 kW with temperature control |
| Filter flow rate | 6 m³/h (programmable) |
| Control System | Gecko in.k1000 Touchscreen Color Display |
| Lighting Control | Gecko IN.MIX (Fade Mode, Party Mode, and much more) |

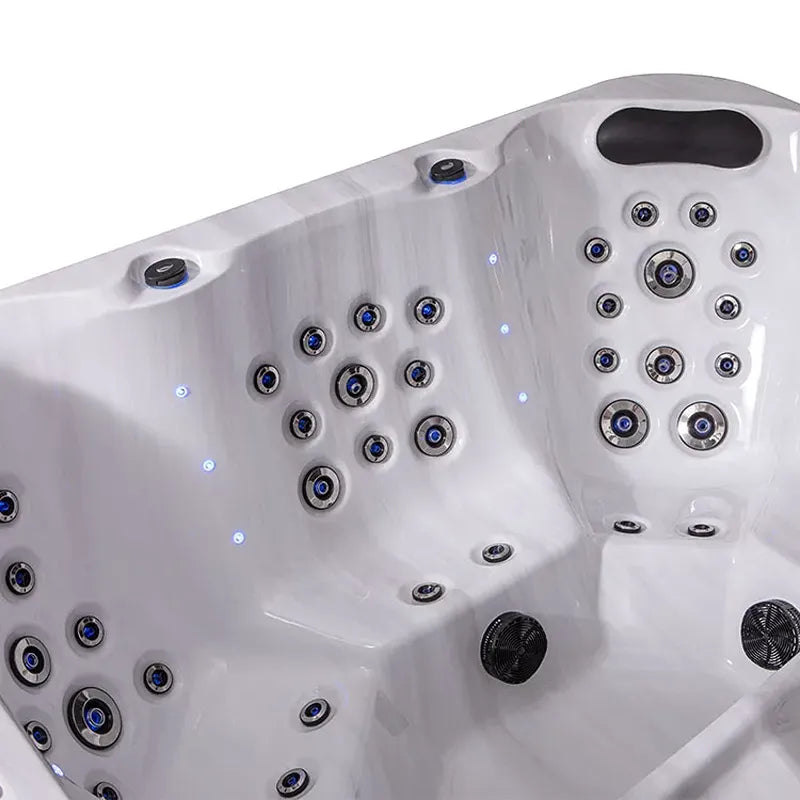

| LED Lighting | 48 LED lights (headrests, filter area, pool) + colored skirt lighting |
| Music Package | 2 speakers (Bluetooth streaming, Internet radio) |
| Water Treatment | Gecko in.clear Saltwater Disinfection System (not pre-assembled) + Ozone |
| Water Level Sensor | Yes (Pump Protection) |
| Operating Programs | 5 presets (Away from Home, Beginner, Energy Savings, Super Energy-Saving Mode, Weekend) |
| Powerbox | Gecko YE5 |
| Smartphone Control | Web Module (in.touch WiFi) |
| Voice Control | Google Assistant, Amazon Alexa (English-language) |
| Power Connection | 3-phase (400 V high-voltage current) |
| Supply line | 5 × 4 mm² grounding cable |
| RCD | 30 mA required |
| Frame | Solid aluminum frame |
| Base Plate | Enclosed fiberglass floor panel |
| Page isolation | 40 mm aluminum-laminated |
| Headrests | 3 removable headrests |

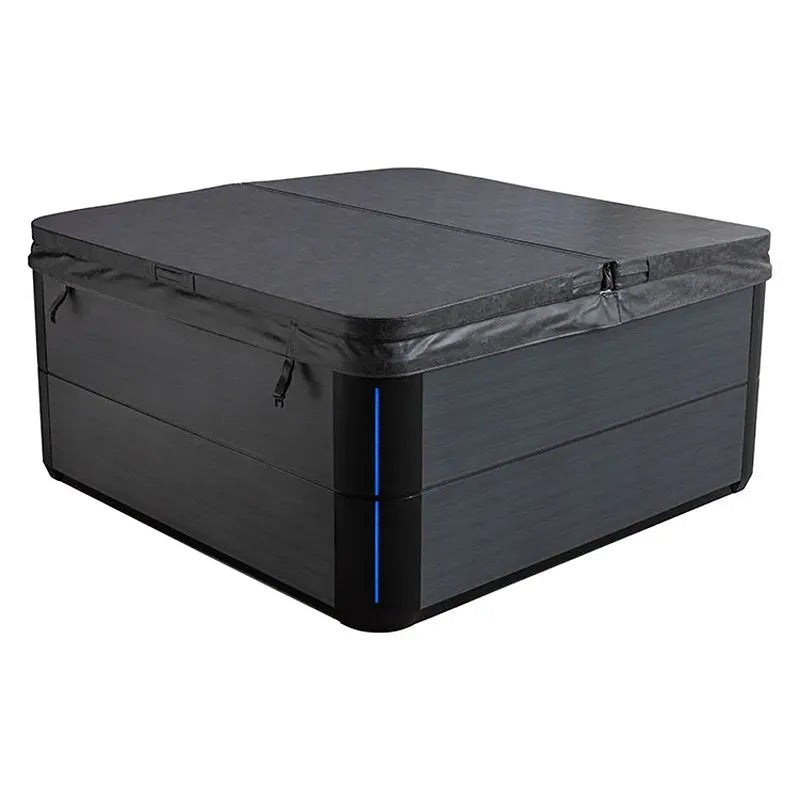

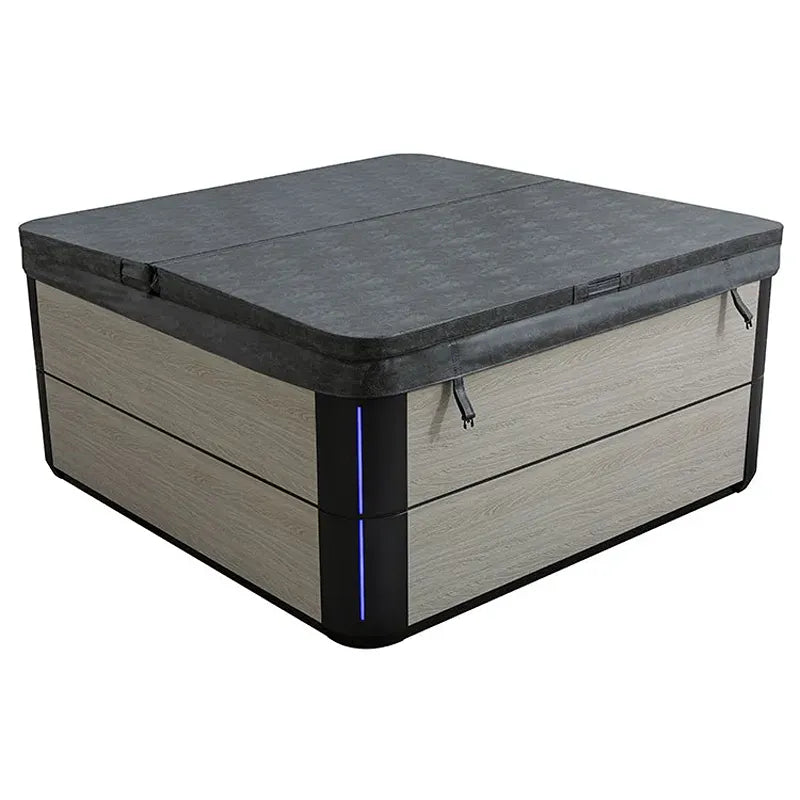

| Cover | Insulated Cover (80 mm) |
| Foundation | Reinforced concrete slab, at least 10 cm thick; minimum clearance all around, approximately 1 m |
| Installation | Only through authorized utility providers or registered installation companies |
| Substrate |
The surface must be level, solid, and able to support at least 1,500 kg. A concrete slab is ideal; existing patio slabs or pavers are acceptable if the subbase is solid and level. Grass is not suitable. Water must be able to drain away from Hot tub Hot tub. |
| Space requirements (all sides) |
At least 50 cm on all sides, preferably 60 cm—the service technician must be able to access all four sides. If the Hot tub is installed on a patio, make sure to plan for access to the service door (usually on the side of the control panel). |
| Delivery |
The Hot tub is delivered upright on a transport dolly—this makes it about 15–20 cm taller than its listed dimensions. Please check the clearance width, gate widths, steps, and tree branches in advance. If access is insufficient, a truck-mounted crane will be required; the customer is responsible for arranging and paying for this. |
| Questions about installation |
Send us photos of the driveway, the access route, and the planned installation site—we’ll take a look beforehand and let you know what you need to prepare. |
