| Product Title |

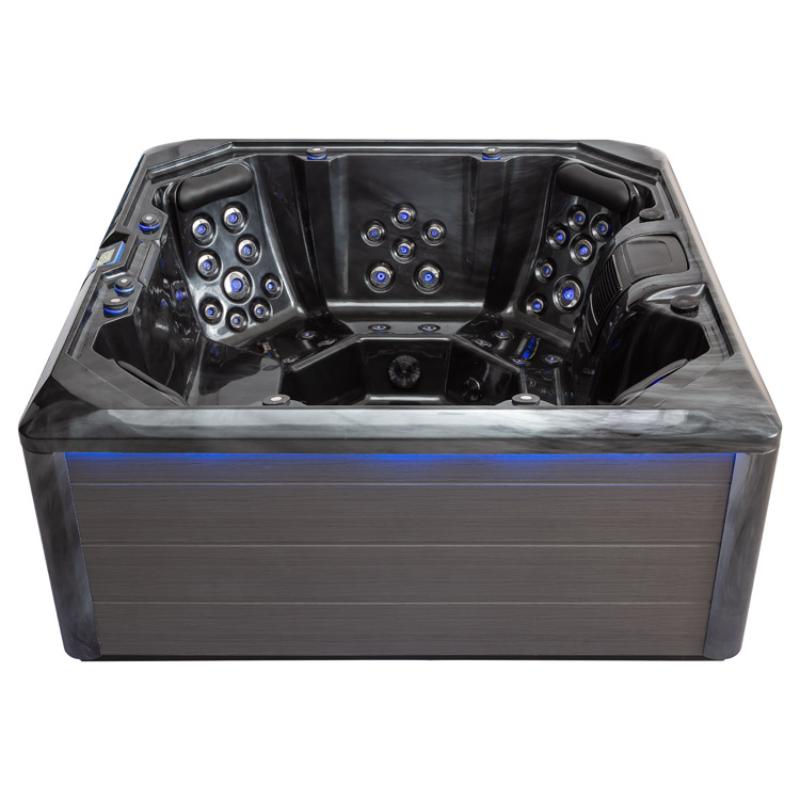

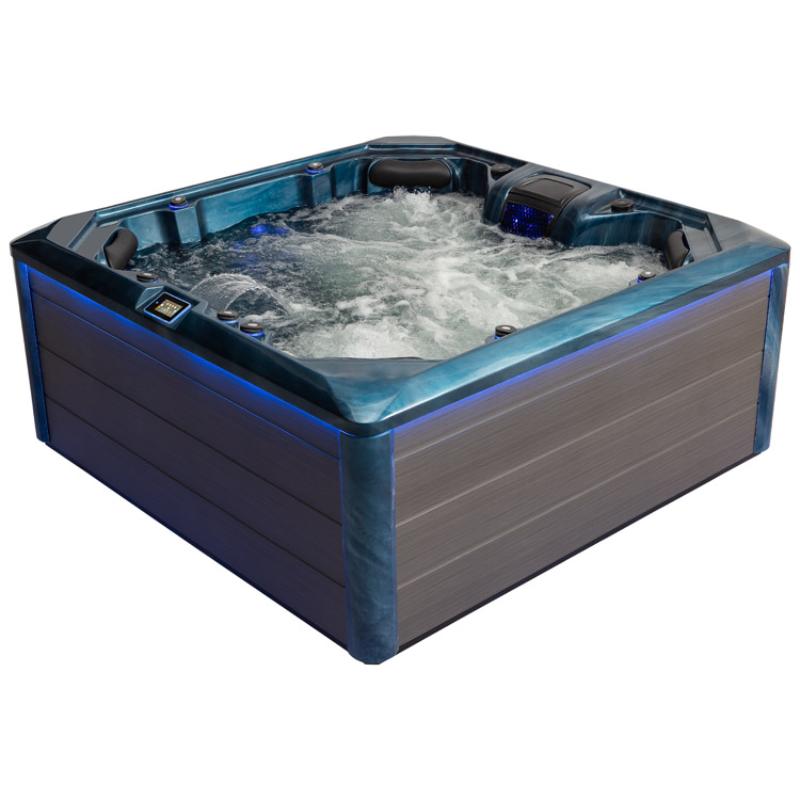

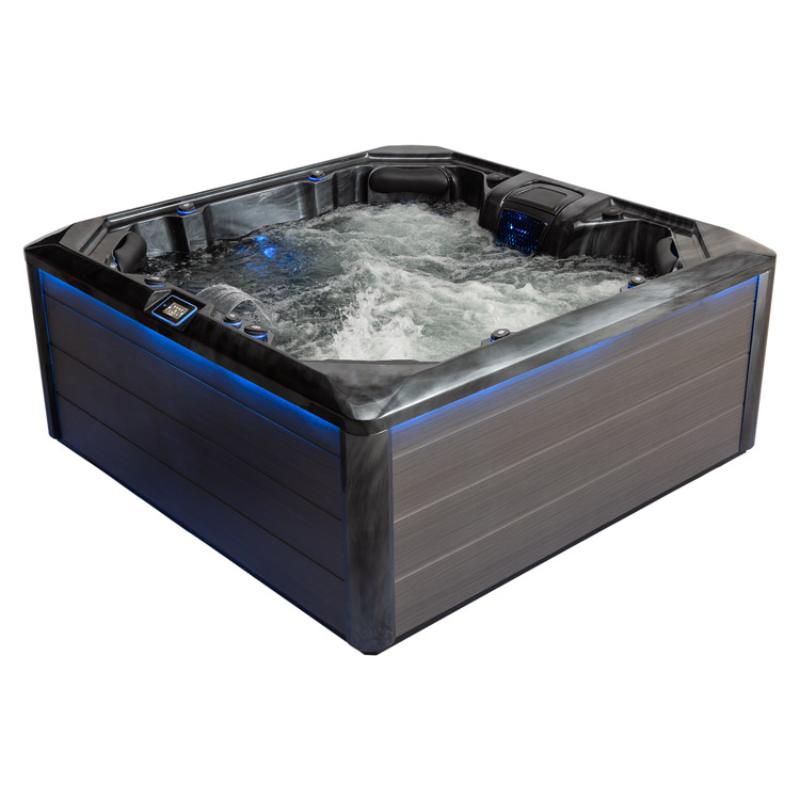

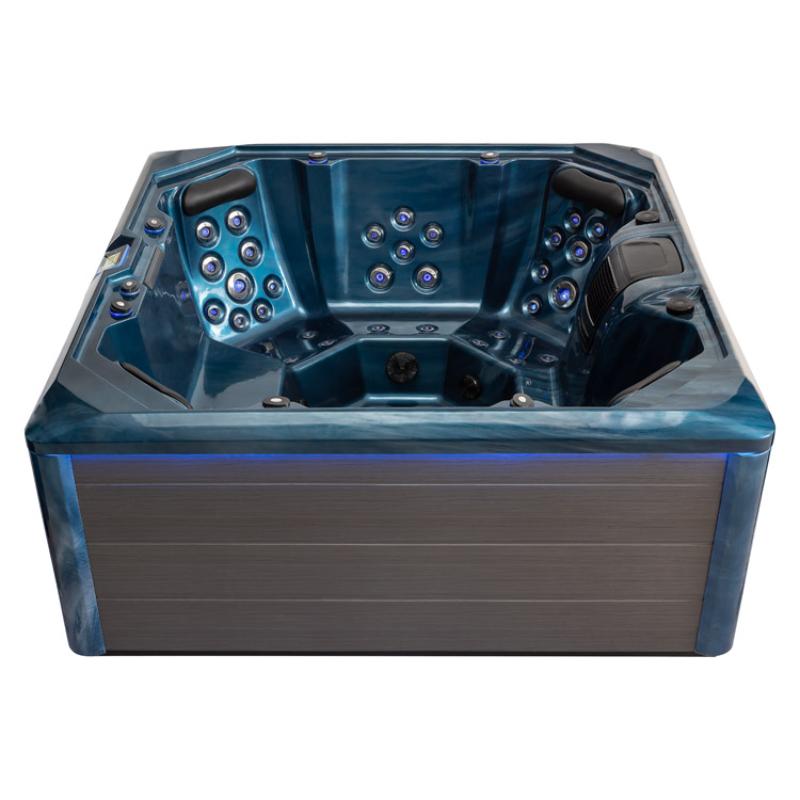

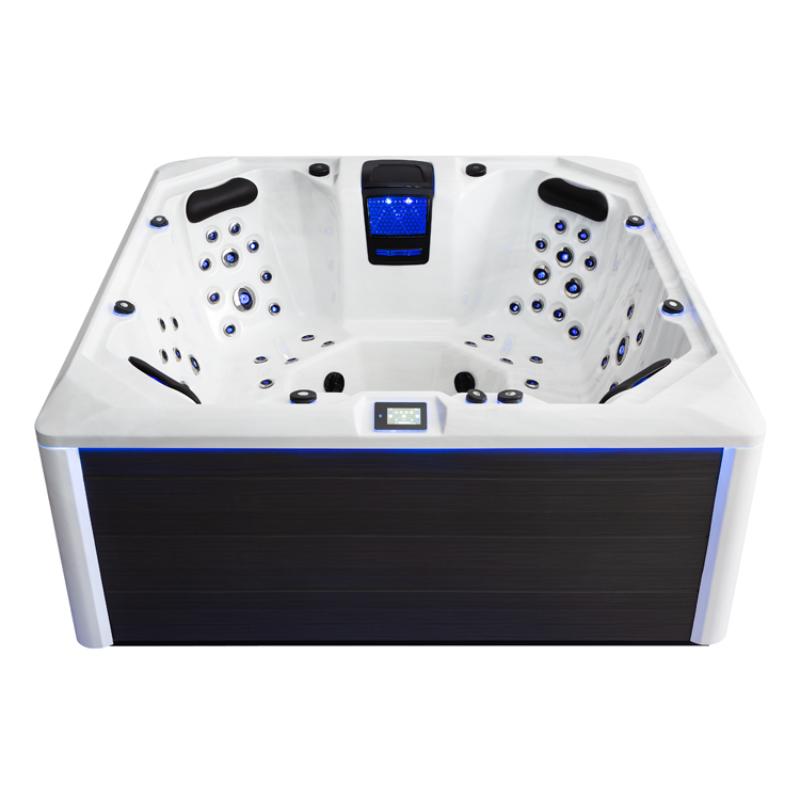

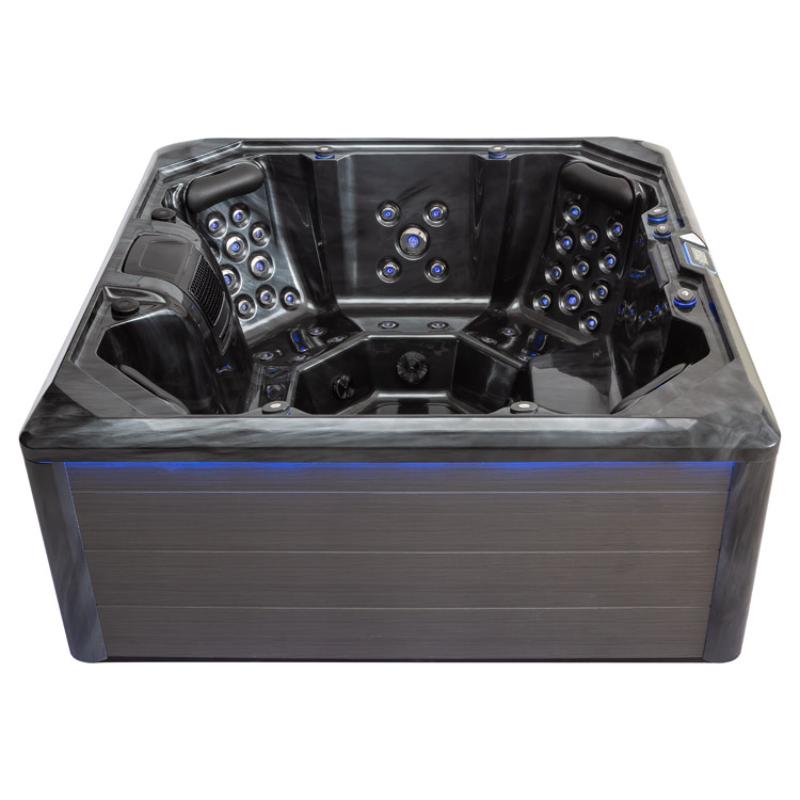

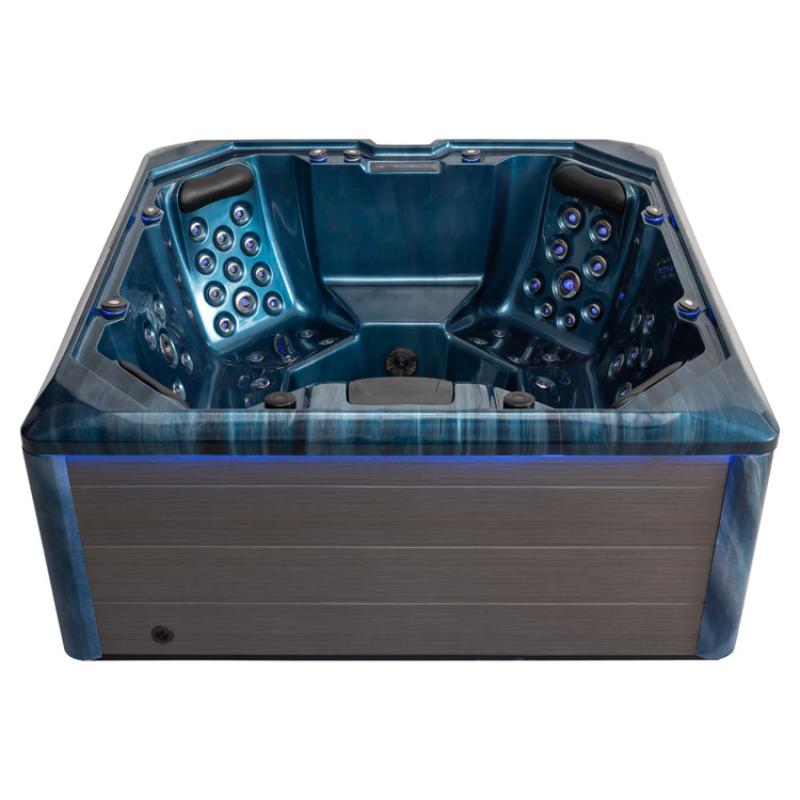

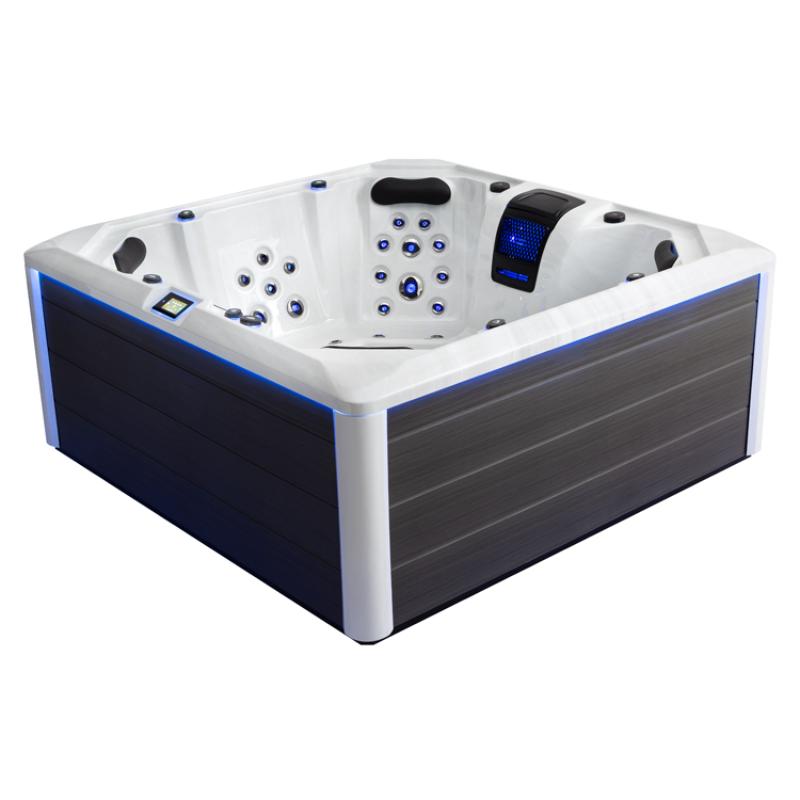

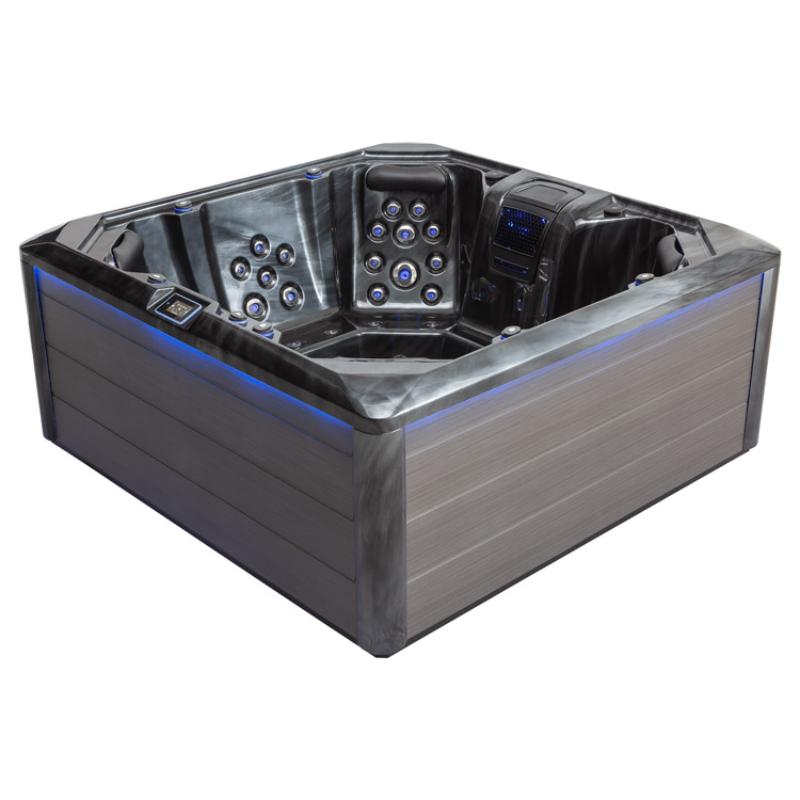

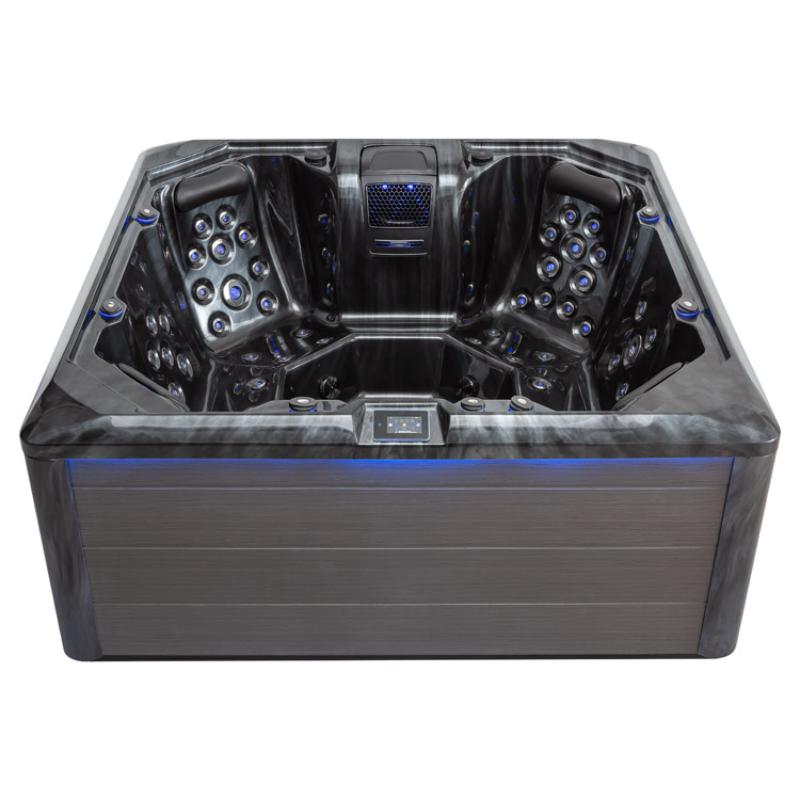

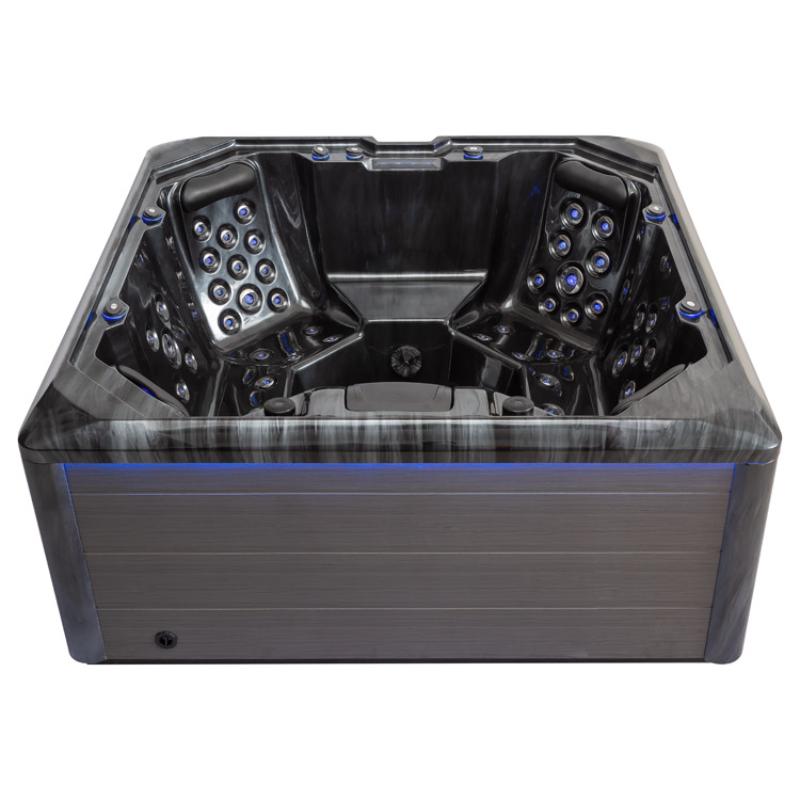

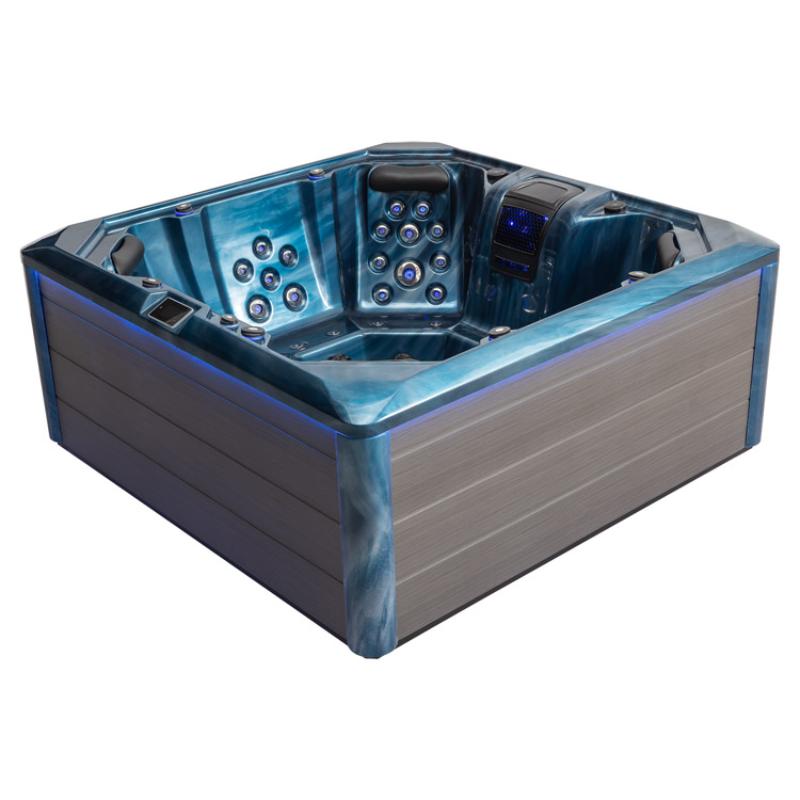

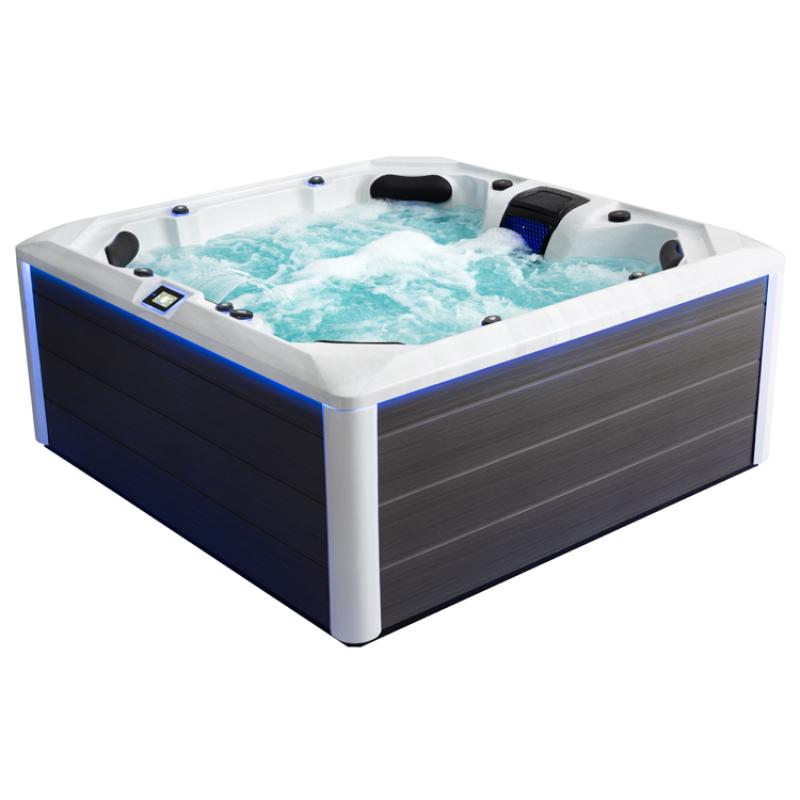

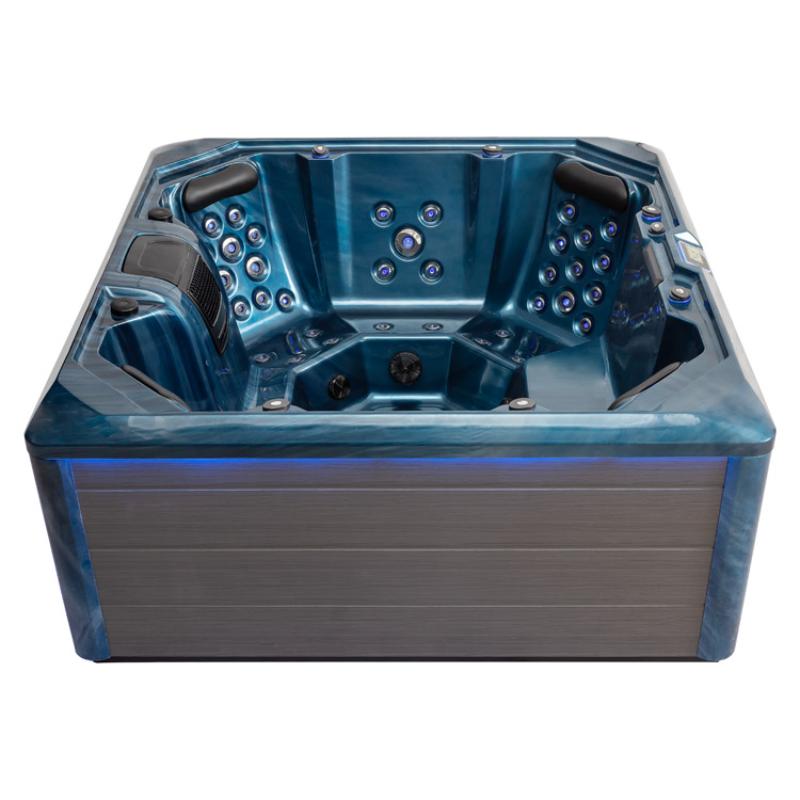

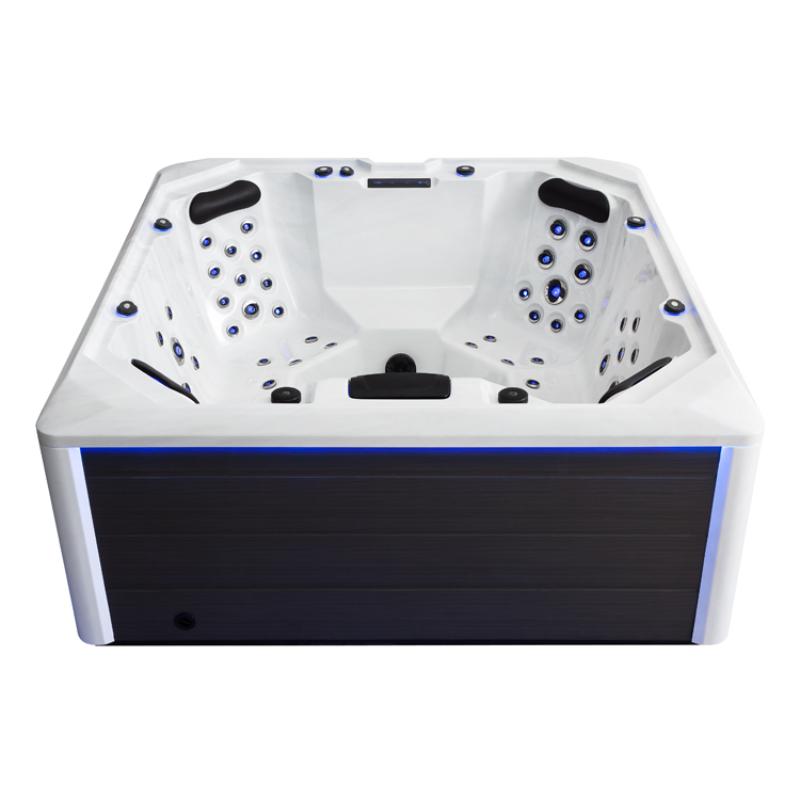

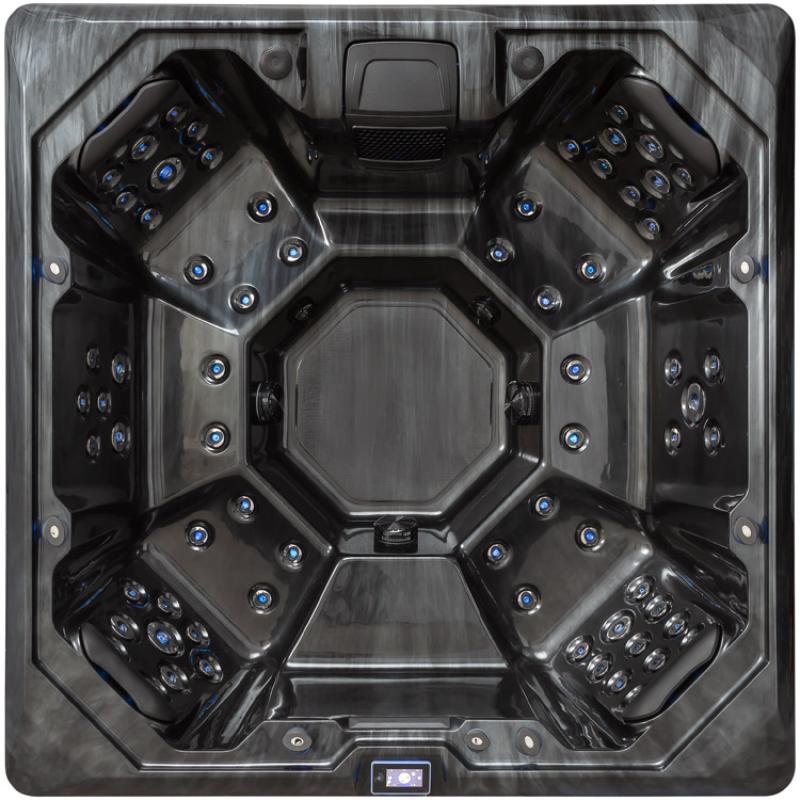

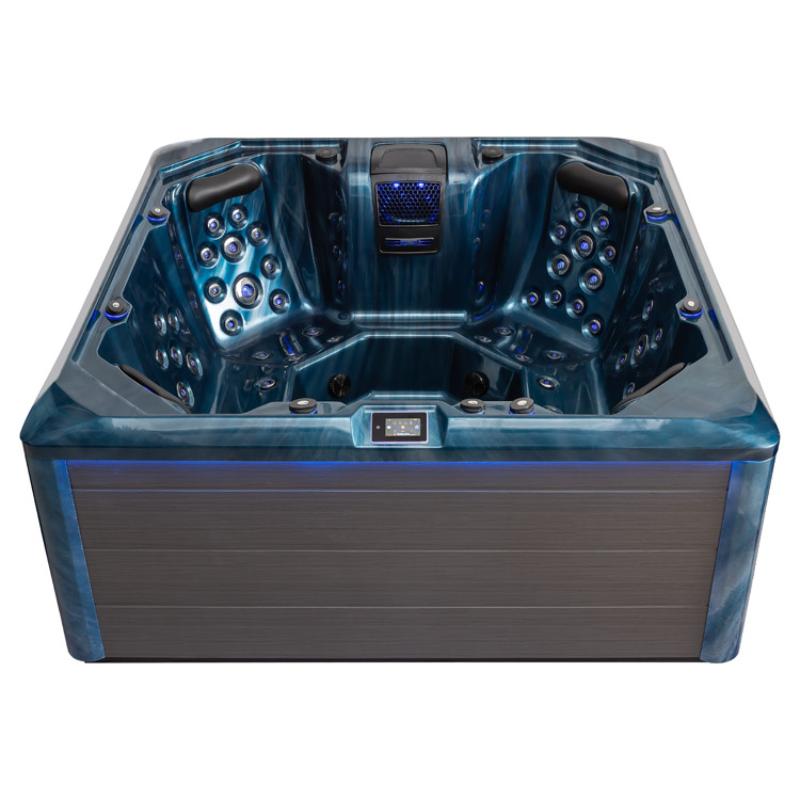

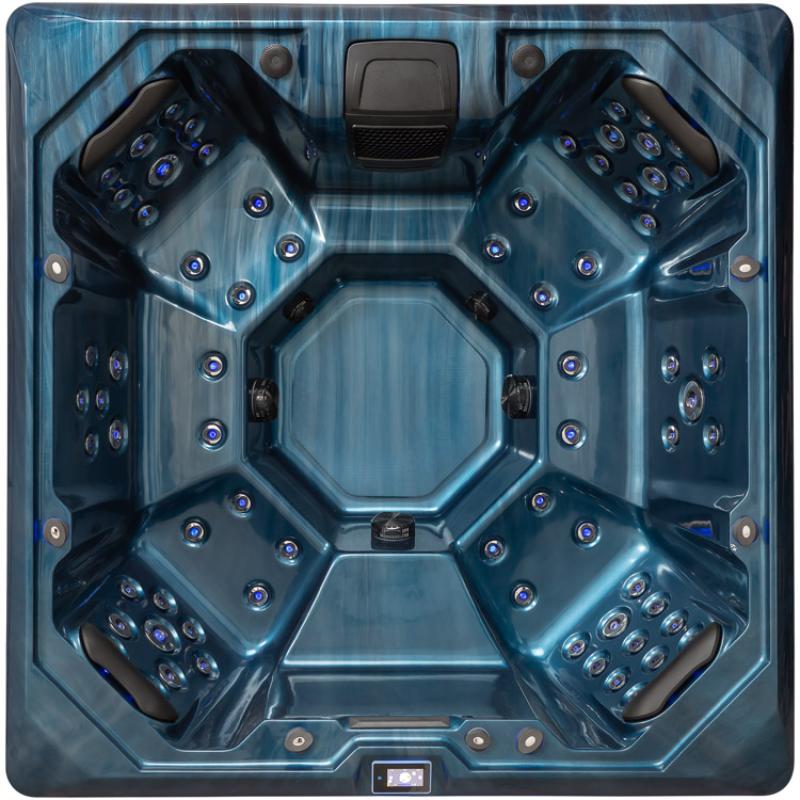

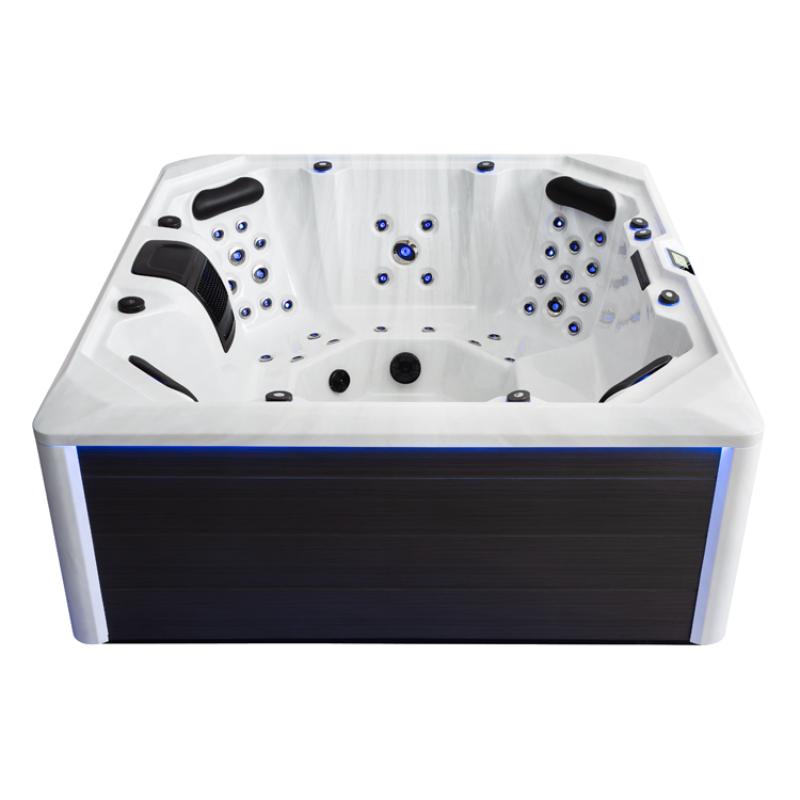

AWT IN-702 Extreme Outdoor Hot tub 212x212 for 5–6 Persons |
| Additional Information |
AWT IN-702 premium 212x212 |
| Series |
7xx Series |
| Form |
Rectangular |
| Size |
for 5–6 Persons |
| Number of people |
Up to 6 Persons |
| Loungers |
1 lounger |
| Hydrojets |

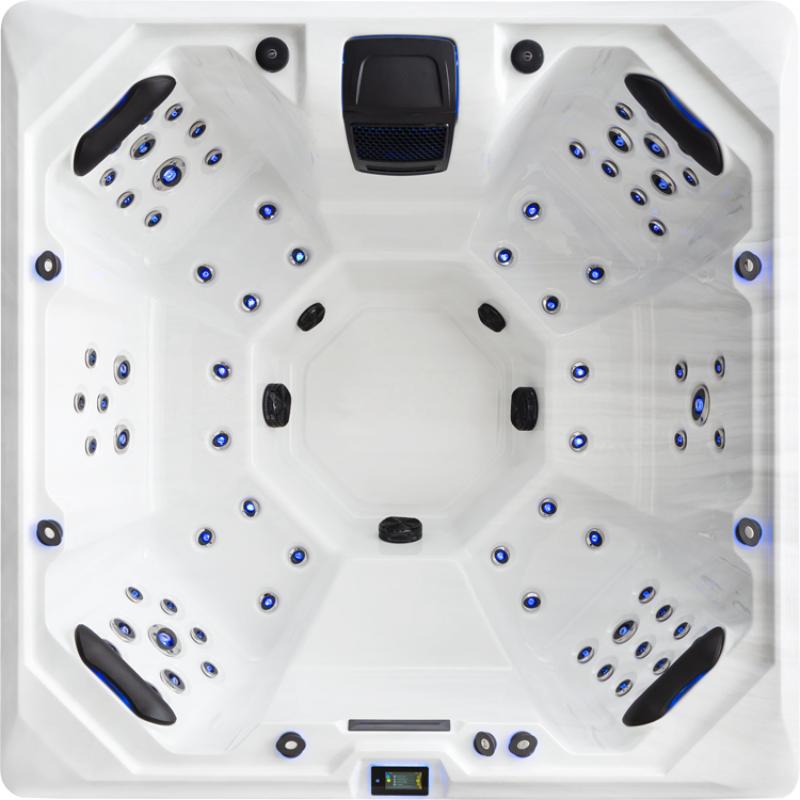

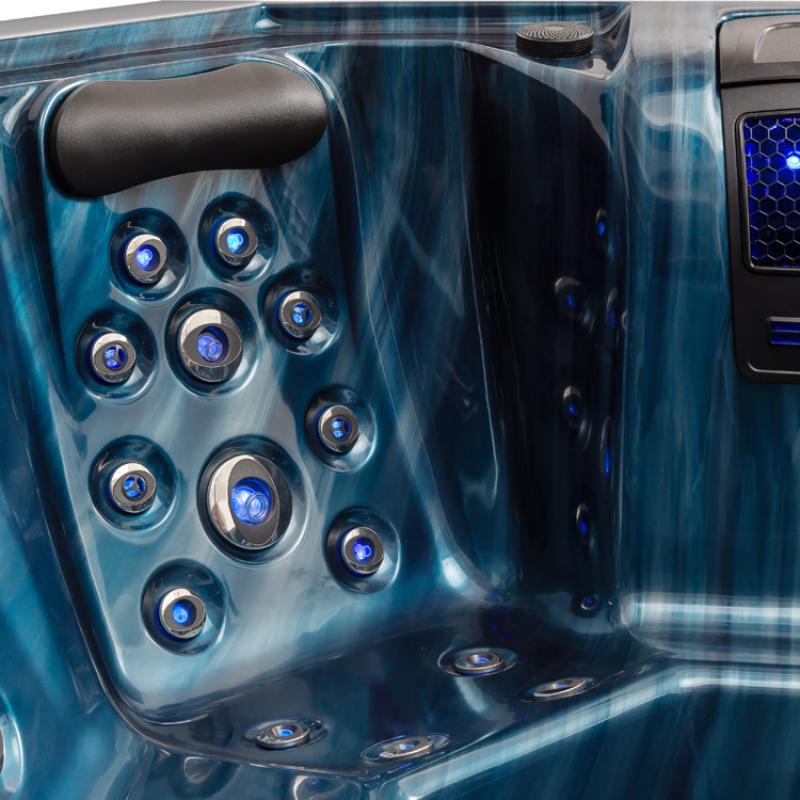

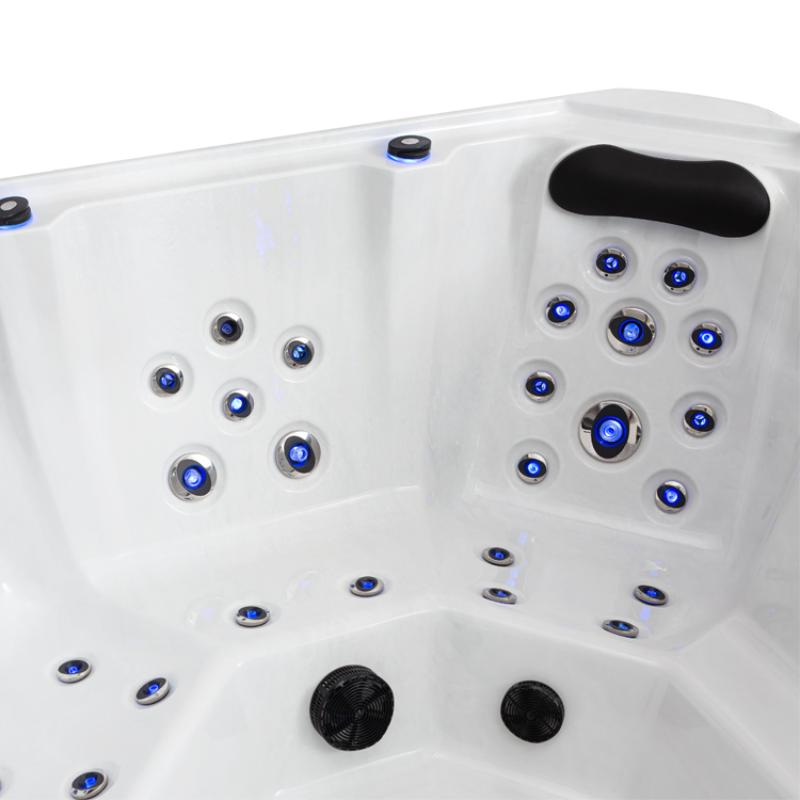

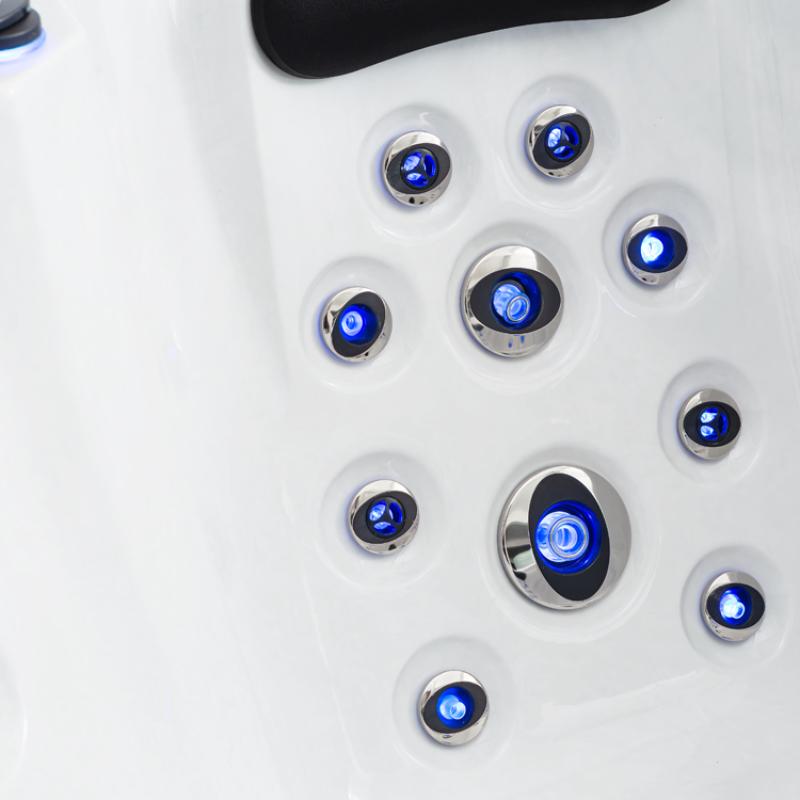

72 illuminated hydrojets, 21 of which have a rotation function |
| Hydropumps |
3 energy-efficient hydro pumps from LX (2x 2200W / 1x 1800W) |
| Circulation pump |
Energy-efficient circulation pump from LX with 180W |
| Control System |
Gecko computer system with color display, intuitive controls, 5 preset operating modes, and customizable schedules |
| Control Panel |

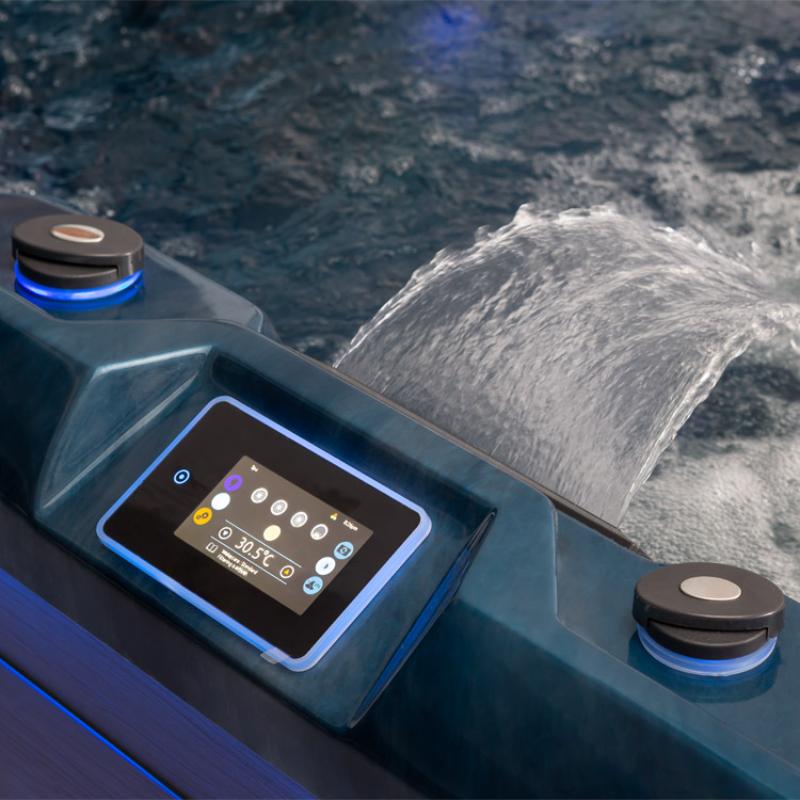

Gecko K1000 control panel with color display and touchscreen, built into Hot tub Hot tub (displays water temperature and pump status) |
| Heating |
Heater with adjustable temperature (3 kW) |
| Ready for Heatpump |
Heat pump can be connected immediately or retrofitted |
| Water Level Sensor |
Water level sensor to protect the pumps |
| Filter System |
Effective, programmable filter system with a water flow rate of 6 square meters |
| Water Treatment |
Ozone Water Treatment |
| Music |
Music package with two speakers, streaming from a smartphone (favorite music/Internet radio) |
| Lighting |
Ambient colored lighting (Gecko in.mix) including fade mode; LEDs under the headrests, in the filter area, and in the pool; illuminated waterfall; skirt lighting (colored light) |
| Rules |
7 illuminated controls for air injection |
| Headrests |
4 removable headrests |
| Pool Material |
High-quality acrylic in the color Sterling Silver |
| Construction |

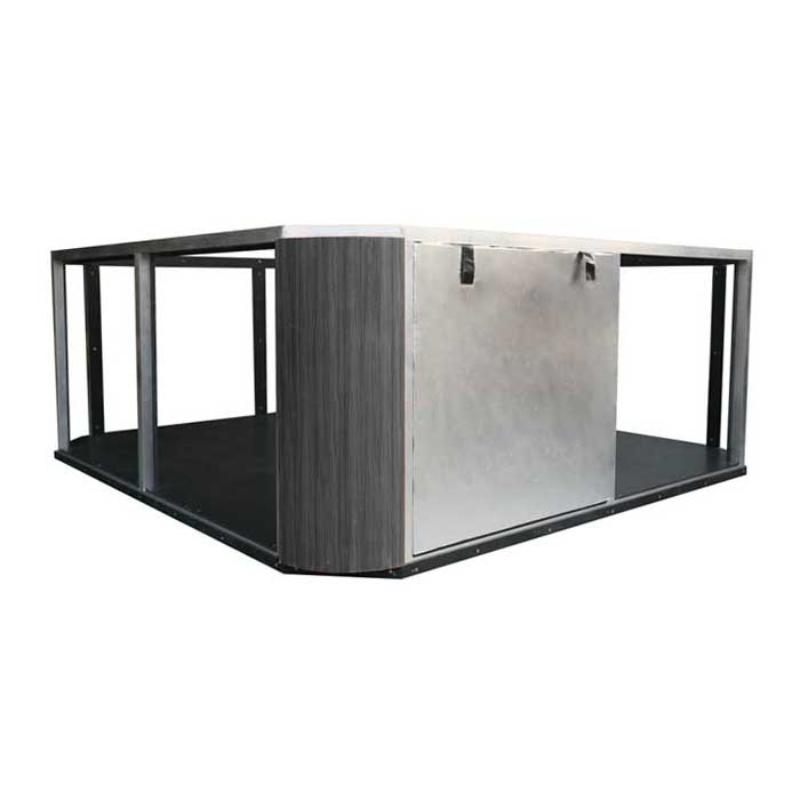

Durable and very sturdy aluminum construction; solid GRP base plate; aluminum frame |
| Insulation |
40 mm insulation on the sides and in the floor; 40 mm insulation with an aluminum layer on the exterior walls; floor insulation; use of waste heat for water heating; sound-absorbing fiber; low-maintenance (pump replacement without draining) |
| Side panel |
Includes aluminum-laminated side panels (40 mm) |
| Apron |
Delivery includes everything needed for immediate installation, including a skirt. |
| Cover |

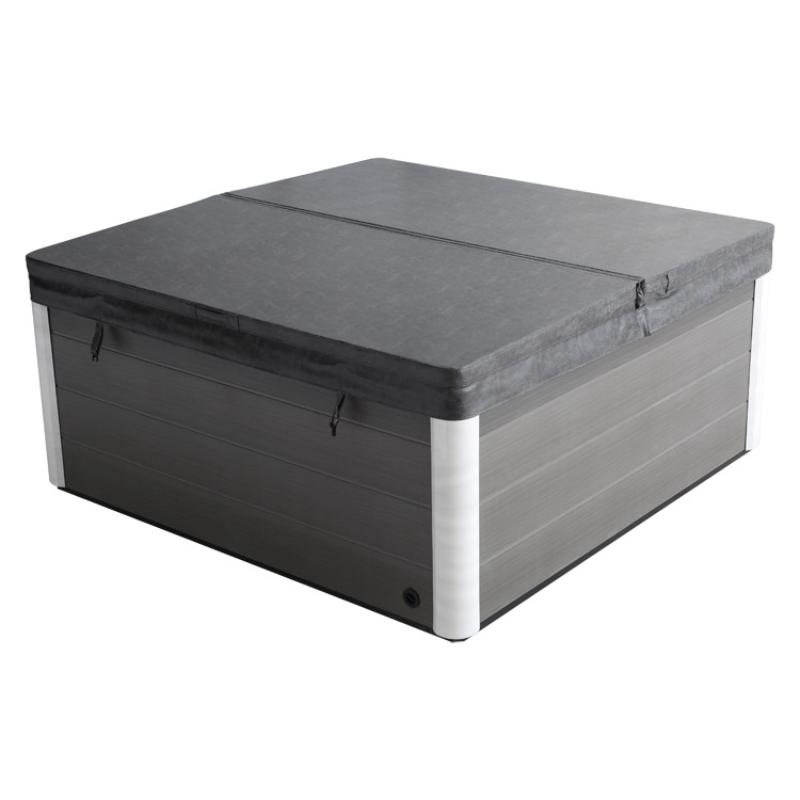

Includes a sturdy, insulated cover (80 mm) |
| Water Capacity |
1,300 liters |
| Weight |
320kg |
| Electrical Safety |
3x 20A |
| Dimensions (L × W × H) |

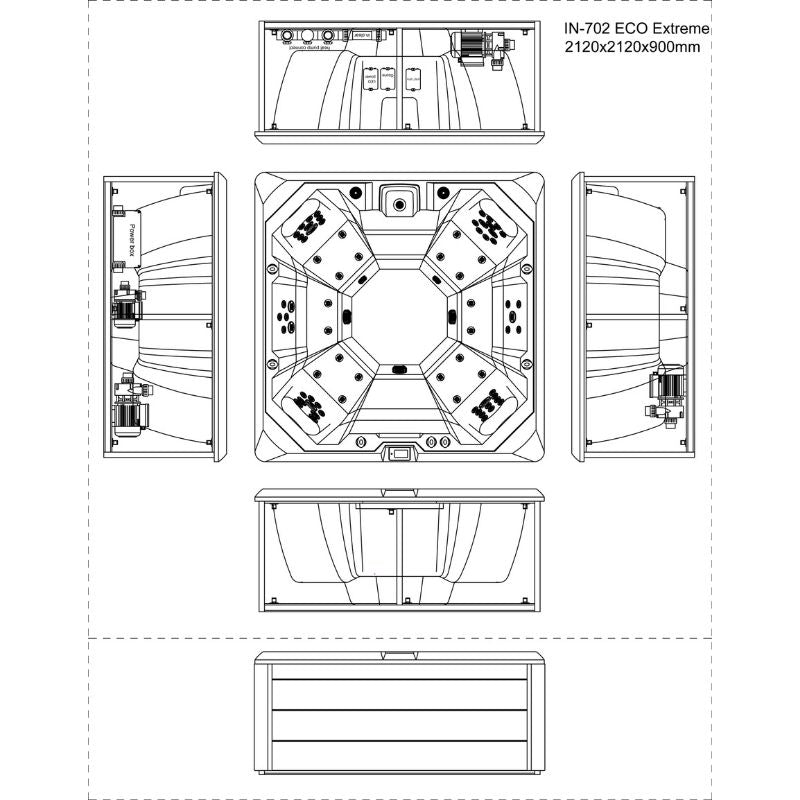

2120 mm x 2120 mm x 900 mm (length x width x height) |
| Options available for an additional charge |
Saltwater disinfection system (additional charge: 1,499 EUR); Web package (additional charge: 299 EUR); Stairs (additional charge: 299 EUR); Special edition full version with saltwater disinfection system, Web package, and stairs (1,000 EUR additional charge) |
| Web Package (optional) |
Control temperature and filter cycles via smartphone; reminders (e.g., for filter cleaning); integration with Google/Alexa currently available only when using the English language |
| Remote Maintenance (optional) |
Online remote diagnosis available (upon approval); the Web Package must be installed to use this feature |

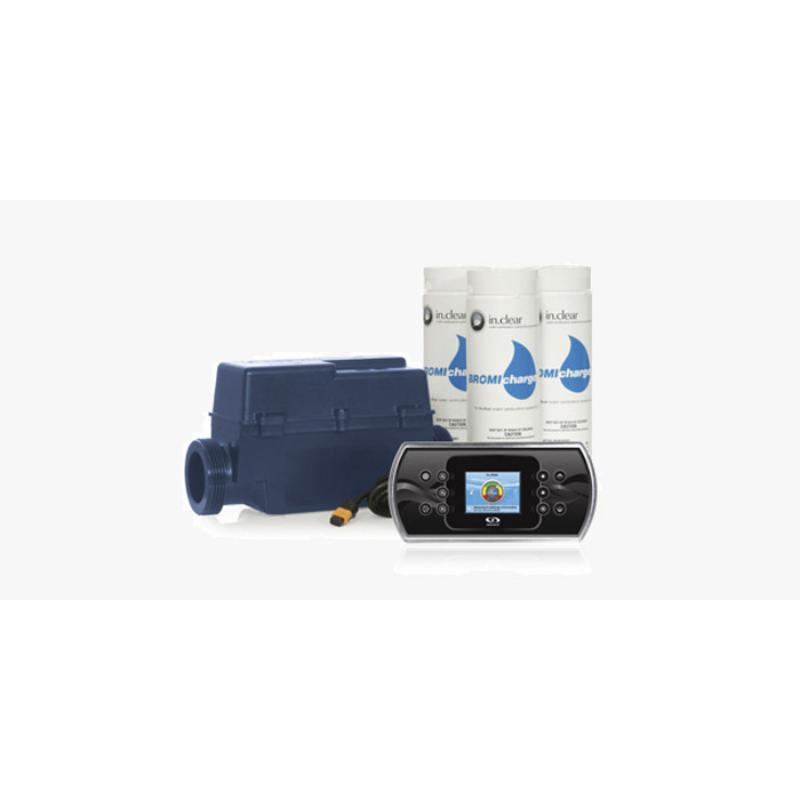

| Saltwater Disinfection System (optional) |
Cleaning without chemical additives; pure salt is added once during filling; the system breaks down the salt into bromine as needed; odorless; salt level is controlled and displayed via the control panel |
| Installation |
High-voltage power connection required; installation must be performed only by the utility provider or a licensed contractor |
| Substrate |
The surface must be level, solid, and able to support a load of at least 1,500 kg. A concrete slab is ideal; existing patio slabs or pavers are acceptable if the subbase is solid and level. Grass is not suitable. Water must be able to drain away from Hot tub Hot tub. |
| Space requirements (all sides) |
At least 50 cm on all sides, preferably 60 cm—the service technician must be able to access all four sides. If the Hot tub is installed on a patio, be sure to plan for access to the service door (usually on the side of the control panel). |
| Delivery |
The Hot tub is delivered upright on a transport dolly—this makes it about 15–20 cm taller than its listed dimensions. Please check the clearance width, gate widths, steps, and tree branches in advance. If access is insufficient, a truck-mounted crane is required; the customer is responsible for arranging and paying for this. |
| Power Connection |
Permanent installation by a licensed electrician; dedicated circuit with a ground-fault circuit interrupter (GFCI). The exact fuse rating is specified in the technical data for this model. |
| Questions about installation |
Send us photos of the driveway, access path, and the planned installation site—we’ll take a look beforehand and let you know what you need to prepare. |
